Elite Screens Evanesce AcousticPro UHD, 106" 16:9, AcousticPro UHD Fabric - IHOME106H3-E14-AUHD

This Evanesce AcousticPro UHD screen features a 106 in diagonal viewing surface and viewing size of 52 x 92.4 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features AcousticPro UHD projection fabric

The AcousticPro UHD (ultra-high definition) is a self-supported acoustically transparent front projection screen material. The dense synthetic perforated weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material’s wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface. This provides equal brightness levels on or off axis.

Not Compatible With Ultra-short/Short Throw Projectors

Best for environments:In-wall speaker or behind speaker placement for 1080P and 4K projectors in a controlled room environment.

• Gain: 1.0
• Viewing Angle: 180° (90°L/R)
• Perforated weave acoustically transparent material
• Wide diffusion uniformity – maintains luminance levels throughout entire surface
• Mildew Resistant
• 4K UHD, Active 3D, and HDR ready
• Mean Attenuation: -2.36dB
• ISF Certified for accurate color reproduction
• Flame Retardant: Complies with NFPA 701 Standards

Evanesce AcousticPro UHD

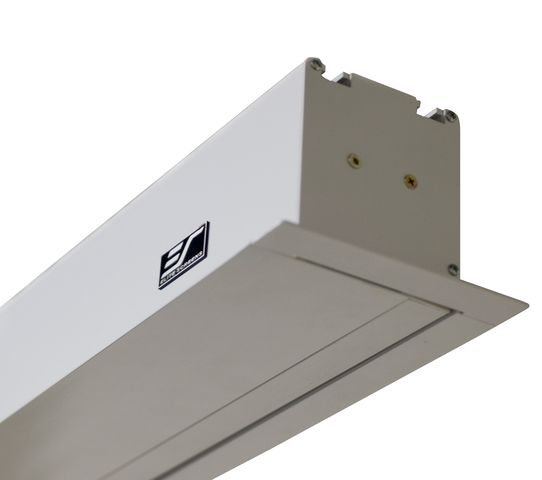

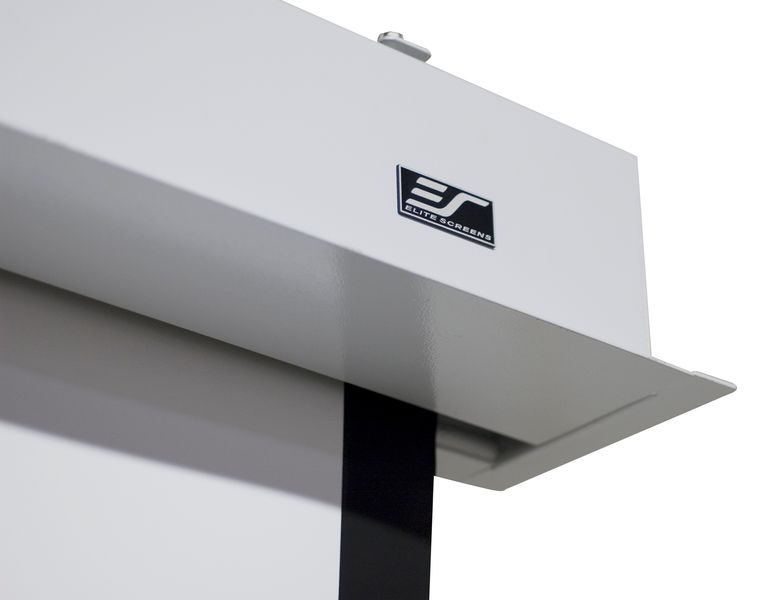

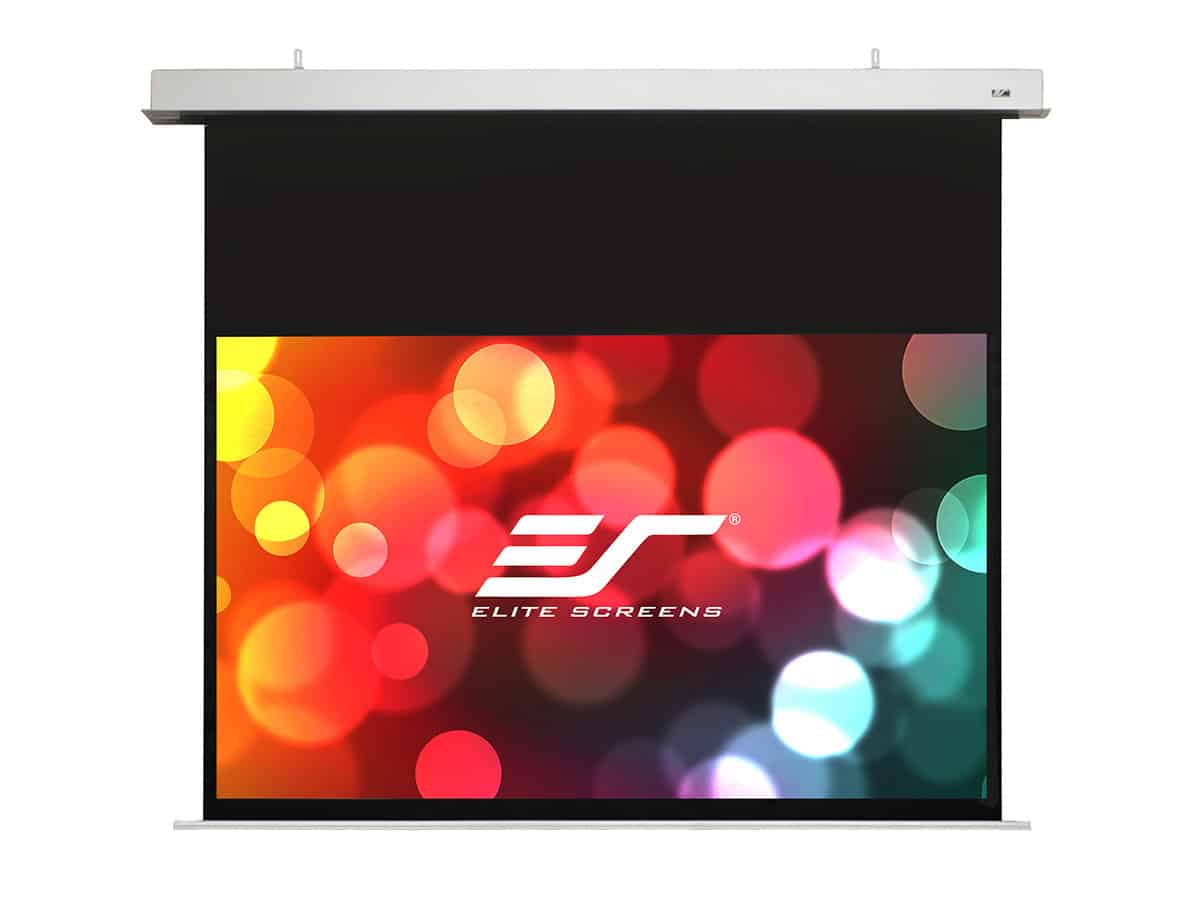

The Evanesce AcousticPro UHD Series is a fully contained in-ceiling electric projection screen. It is encased in a white-enameled aluminum housing for convenient installation. There are tensioned and non-tensioned variants available with matte white projection surfaces in 16:9 aspect ratios in sizes from 84”–139”. Control package includes IR and RF receivers, remote controls, RJ45 wire connection and 5-12Volt trigger along with an external and an in-wall integrated low-voltage 3-way wall switch.

Note: For Acoustic models, black masking borders are entirely made of the AcousticPro UHD sound transparent material.

• AcousticPro UHD sound transparent projection material allows speaker placement behind the material
• 180° wide viewing angle with 1.0 gain
• Wide diffusion uniformity
• Active 3D, 4K Ultra HD, and HDR Ready
• Compatible with Standard Throw projectors ONLY
• Perforated weave design stretches over frame for a permanently tight-tensioned flat surface
• Available in the following diagonal sizes:
• 106"", 126"" and 140"" in 16:9 format

• Disappearing recessed in-ceiling design for non-dedicated media rooms
• Below and above ceiling access installation design (IHOME140H2-E6-AUHD installs ONLY from above)
• Integrated ceiling projection screen ships fully assembled, ready to install
• Aluminum housing with white finish (RAL9003) is strong and moisture resistant
• Installation kit included

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference(SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller(SWIFT-RC1 Version Only)
• Wireless 12v trigger capability via Radio Frequency remote control
Quality and Reliability
• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
• Flame Retardant: Complies with NFPA 701 Standards (AcousticPro UHD)
• GREENGUARD® and GREENGUARD® Gold Certified UL | 2818
• Conforms to UL 2043 - Plenum Rated: Suitable for air-handling spaces
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email or Web Chat.

• Product Data Sheet
