Elite Screens Evanesce Tab-Tension B CineGrey 5D®, 106", 16:9, CineGrey 5D® fabric - ETB106HD5-E16

This Evanesce Tab-Tension B CineGrey 5D® screen features a 103 in diagonal viewing surface and viewing size of 50.7 x 90 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features CineGrey 5D® projection fabric

The CineGrey 5D® is an angular reflective front projection material designed to reject ambient light while maintaining superb picture quality. The CineGrey 5D® is the perfect solution for rooms that have little or no control over incidental light. This means that it’s an ideal fit for family rooms as well as lecture halls, boardrooms, sports bars, training facilities, and other business environments. In addition, the CineGrey 5D® increases projector brightness 1.5 times the amount. This is perfect for low lumens ouput projectors! The CineGrey 5D® is superior to traditional white or gray materials in its ability to maintain a sharp, bright image regardless of ambient light. The angular reflective material incorporates a diffusion layer over a highl reflective surface. This causes direct light from the projector to reflect squarely into the viewer’s field of vision while the outer contrast layer enhances image quality while reflecting indirect ambient light.

Not Compatible With Ultra-short/Short >Throw or Triple Laser Projectors

Best for environments:High ambient light control rooms and dark rooms.

• CineGrey 5D® 1.5 Gain with 80º (L&R 40º) Viewing angle
• ISF Certified for accurate color points, color temperature and dynamic range
• GREENGUARD® / GREENGUARD® Gold Certified UL 2818 for Safety Indoor Emissions free
• High fidelity gray surface produces superb clarity and sharp images
• Screen surface can be cleaned with a microfiber cloth
• Angular Reflective CLR®/ALR Front Projection Material for Standard “Long” Throw Projectors.
  • (NOT Compatible with Ultra/Short Throw Projectors)
• Mildew Resistant
• Active 3D, 4K Ultra HD, and HDR Ready
• Flame Retardant: Complies with NFPA 701 Standards
• Minimum Lens Throw 1.5

Evanesce Tab-Tension B CineGrey 5D®

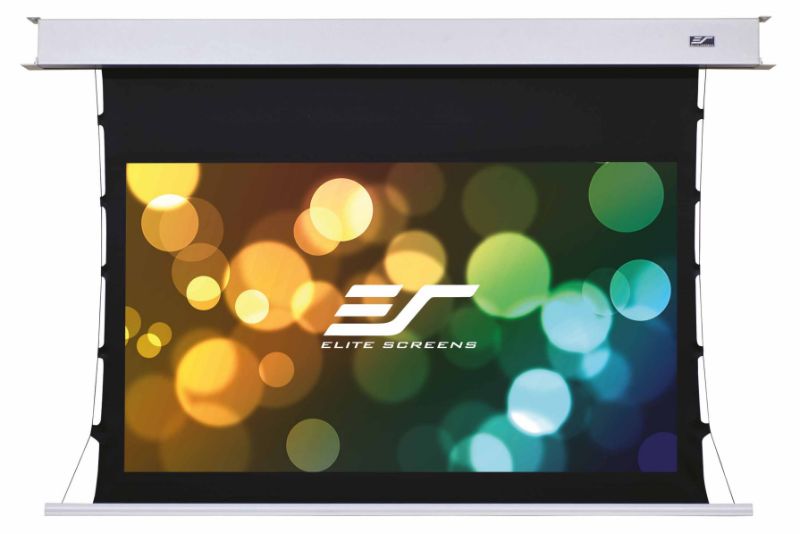

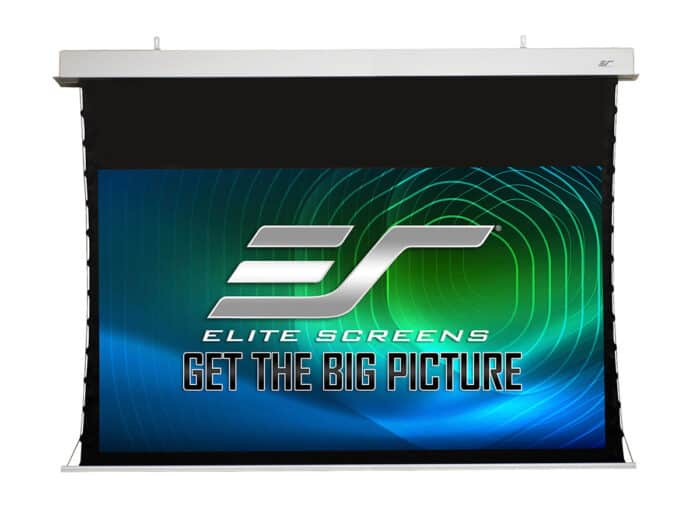

The Evanesce Tab-Tension B Cinegrey 5D® is an in-ceiling electric projection screen designed for integrated ceiling installations. It utilizes our CineGrey 5D® ambient light rejecting material for superb performance with the lights on or off. The tab-tensioned material provides uniform flatness over the entire projection surface with superb color saturation, contrast and black/white dynamic range. Standard controls include IR/RF remotes and a 5-12 volt projector trigger. The material rapidly drops and rises using a smooth and quiet tubular motor.

• CineGrey 5D® 1.5 Gain Ambient and Ceiling Light Rejecting (CLR®) front projection material
• Angular Reflective Material for Standard "Long" Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
• Multi-layer matrix uses reflective and absorbent micro-particles eliminate up to 75% of ambient light
• High-contrast diffusion layers (Enhances black level dynamic range and color saturation)
• Angular reflectivity negates light scatter artifacts and is ideal for residential or commercial applications
• See the projected image exactly as Film Director intended: ISF Certified for accurate Color Points (RGBCMY), Dynamic Range (black/white levels), Color Temperature (white point)
• 4K/8K Ultra HD and HDR Ready
• Black masking borders absorb projector overshoot while enhancing visual contrast
• Available in diagonal sizes 103",106", 115" and 126" in 16:9 aspect ratio

• Disappearing "in-ceiling" design for multi-purpose media room applications
• Below or Above ceiling access accommodates installations from within the room or ceiling space

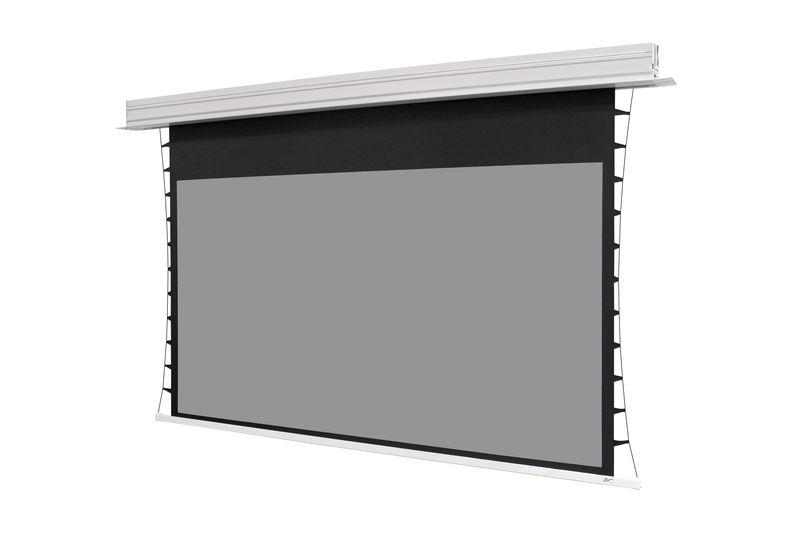

• Tab-tension designs maintains uniform screen flatness

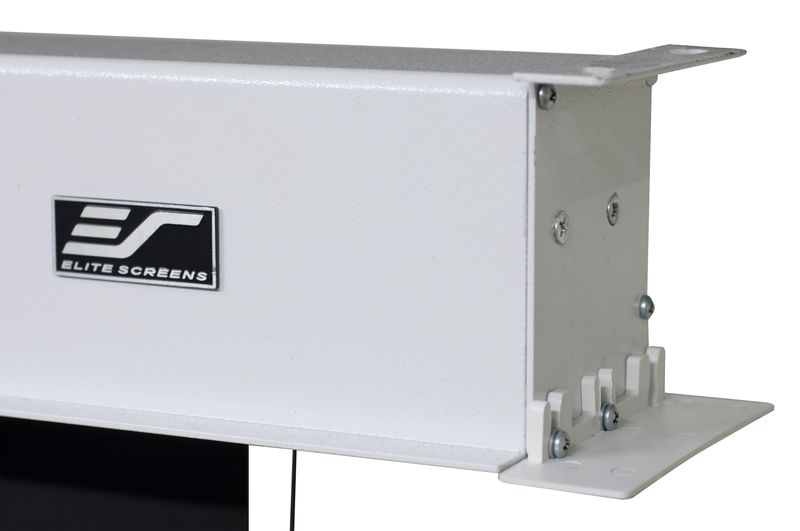

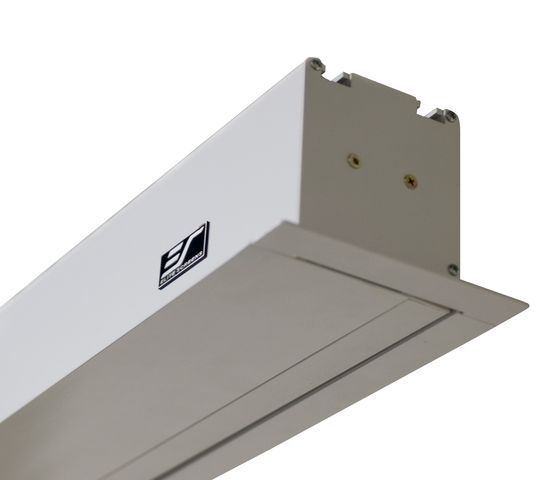

• White enameled aluminum housing is durable and moisture resistant for structural integration
• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference(SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
• Wireless 12v trigger capability via Radio Frequency remote control
Quality and Reliability
• Fast-acting yet quiet tubular motor with superior weight tolerance and longer operational lifespan
• GREENGUARD® and GREENGUARD® Gold (UL 2818) Certified for safe air quality emissions – CineGrey 5D®
• Flame Retardant: Complies with NFPA 701 Standards – CineGrey 5D®
• 2-year limited manufacturer’s warranty, and 3-year warranty for ENR-G - Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email or Web Chat.

• Product Data Sheet
