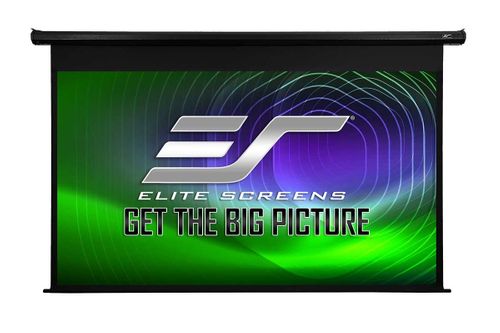

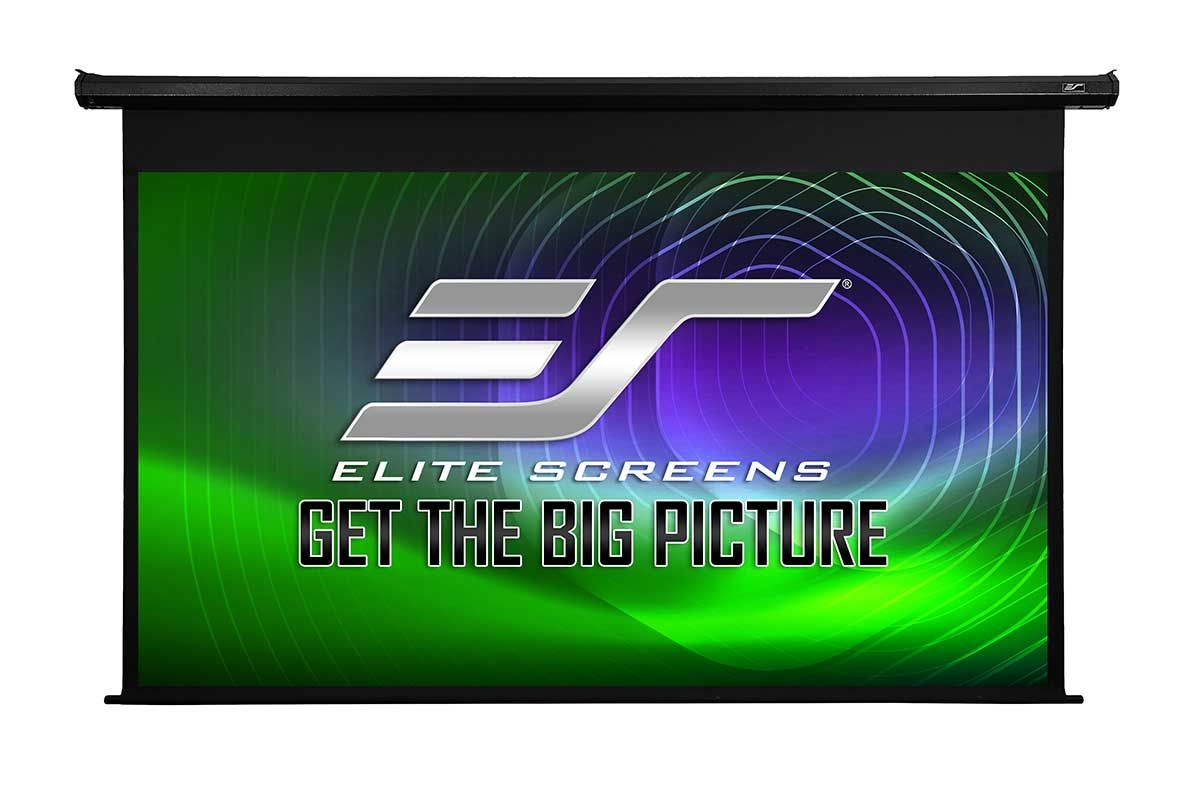

Elite Screens Spectrum AcousticPro UHD, 135", 16:9, AcousticPro UHD fabric - ELECTRIC135H2-AUHD

This Spectrum AcousticPro UHD screen features a 135 in diagonal viewing surface and viewing size of 66.2 x 117.7 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features AcousticPro UHD projection fabric

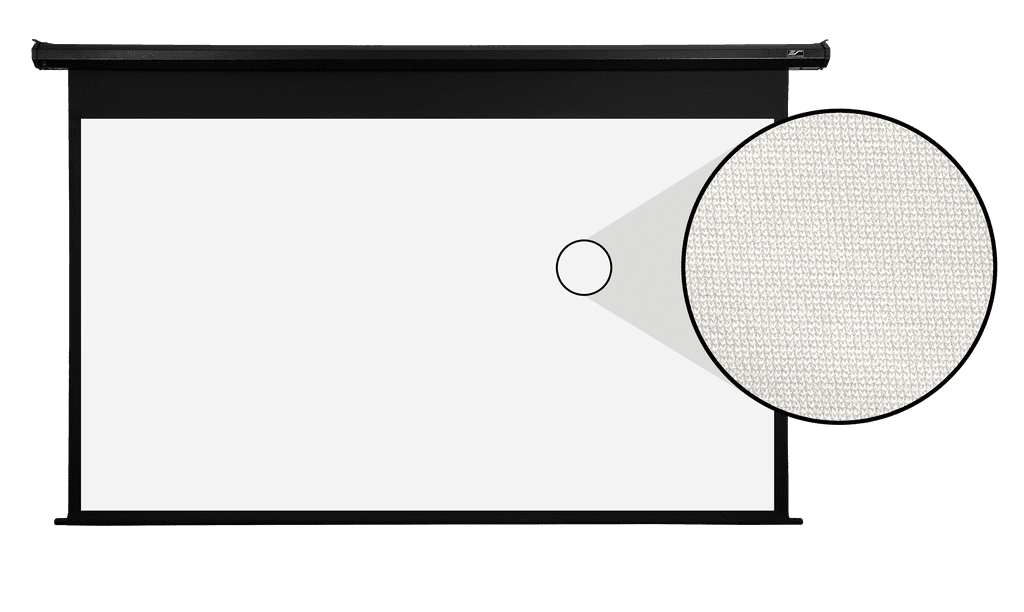

The AcousticPro UHD (ultra-high definition) is a self-supported acoustically transparent front projection screen material. The dense synthetic perforated weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material’s wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface. This provides equal brightness levels on or off axis.

Not Compatible With Ultra-short/Short Throw Projectors

Best for environments:In-wall speaker or behind speaker placement for 1080P and 4K projectors in a controlled room environment.

• Gain: 1.0
• Viewing Angle: 180° (90°L/R)
• Perforated weave acoustically transparent material
• Wide diffusion uniformity – maintains luminance levels throughout entire surface
• Mildew Resistant
• 4K UHD, Active 3D, and HDR ready
• Mean Attenuation: -2.36dB
• ISF Certified for accurate color reproduction
• Flame Retardant: Complies with NFPA 701 Standards

Spectrum AcousticPro UHD

Elite Screens Spectrum AcousticPro UHD Series is a versatile electric motorized screen that fits perfectly in either residential or commercial wall/ceiling applications. The AcousticPro UHD material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation. Its tight perforated weave material allows a superior AT performance without sacrificing picture quality. Infrared and *Radio Frequency remote controls are included along with a wall box controller and 12-volt trigger capability. *SWIFT-RC1 Version Only.

• Active 3D, 4K Ultra HD, and HDR Ready
• Not compatible with Ultra/Short-throw Projectors
• Standard black masking borders
• Available in the following diagonal sizes:
• 100", 105", 115", 125" and 135" in 16:9 format

• Durable steel case includes endcaps for wall or ceiling mount options
• Plug & Play design with built-in low voltage control system, no hardwire installation required
• Includes handheld (IR) Infrared and (RF) Radio Frequency (SWIFT-RC1 Version Only) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
• Wireless 12v trigger capability via Radio Frequency remote control
• 6" and 12" L brackets - sold separately

• Tubular motor allows swift operation and speed
• Synchronous motor allows silent operation with extended operational longevity and low power consumption
• Certified by AMX and CRESTRON
• AcousticPro UHD: Flame Retardant: Complies with NFPA 701 Standards
• Conforms to ANSI/UL STD. 60950-1
• Certified to CAN/CSA STD. C22.2
• GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email or Web Chat.

• Product Data Sheet
