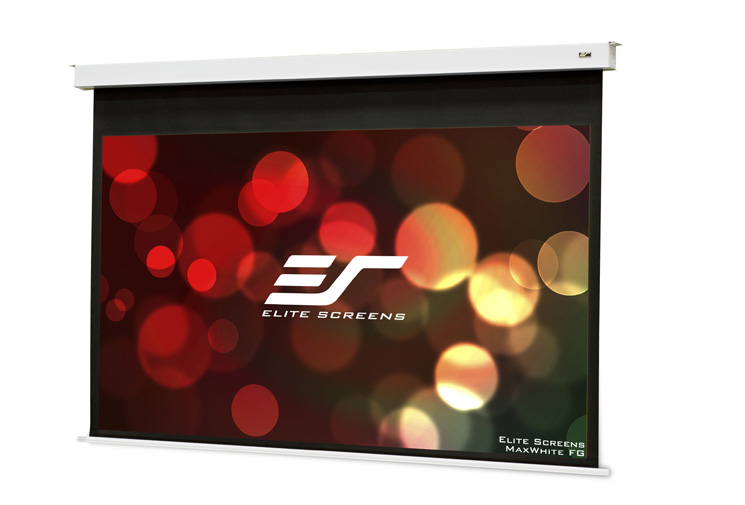

Elite Screens Evanesce B, 100", 16:9, MaxWhite® Fiberglass (FG) fabric - EB100HW3-E12

This Evanesce B screen features a 100 in diagonal viewing surface and viewing size of 49 x 87.2 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features MaxWhite® Fiberglass (FG) projection fabric

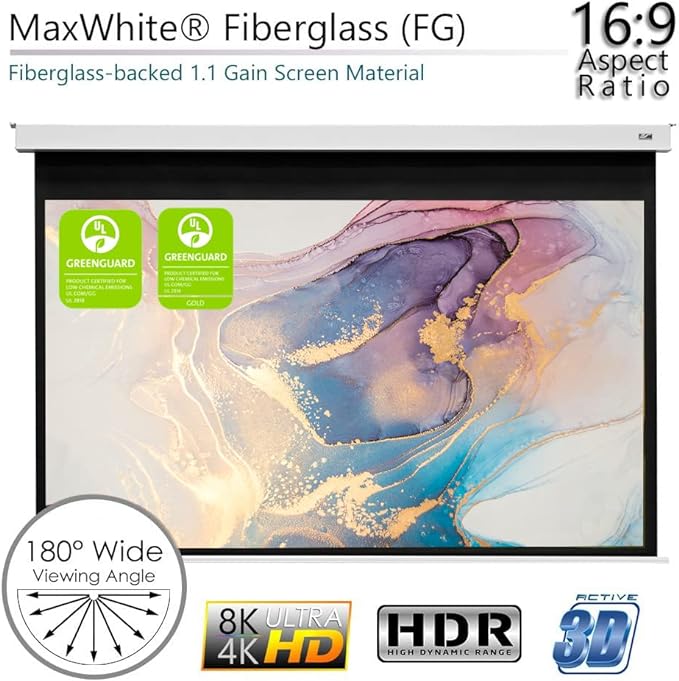

MaxWhite Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast. The screen surface has a black-backing to eliminate light penetration, is mildew resistant and washable with mild soap and water.

* Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable for commercial and residential presentations.

Not Compatible With Ultra-short/Short >Throw Projectors

Best for environments:Versatile for multiple applications in a light controlled room

• Multi-layer weave and textured surface
• Fiberglass backing with black backing
• Gain: 1.1
• View Angle: 180° (90° ± LR)
• Not compatible with Ultra/Short-throw Projectors
• Mildew Resistant
• Active 3D, 4K/8K Ultra HD, and HDR ready
• Surface can be cleaned with hand or soft soap diluted in warm water using a fiber cloth
• Flame Retardant: Complies with NFPA 701 Standards
• GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

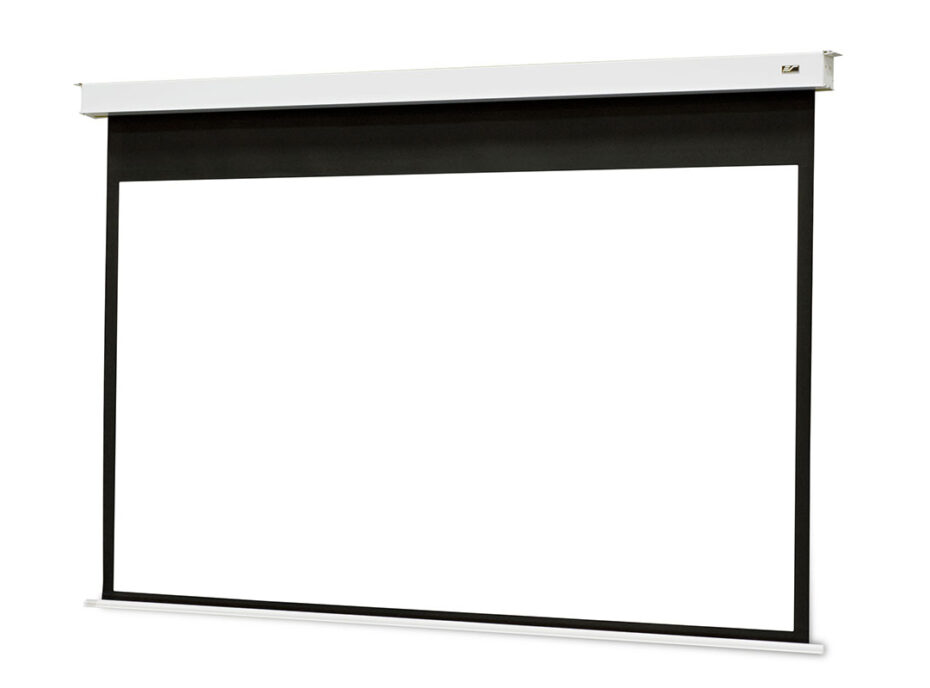

Evanesce B

The Evanesce B is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its GREENGUARD® certified MaxWhite® FG (fiberglass-backed) 1.1 gain matte white material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with a full IR/RF remotes, 12v Trigger and a wall box controller.

• Greenguard® Certified MaxWhite® Fiberglass (FG) front projection material with black backing
• 1.1 Gain with a 180° wide-viewing angle for commercial and residential presentations
• Compatible with Standard throw Projectors ONLY
• Not compatible with Ultra/Short-throw Projectors
• Black masking borders enhance picture contrast
• 4K Ultra HD, Active 3D, and HDR Ready
• Available in the following diagonal sizes:
• 92", 100", 110" and 120" in 16:9 format

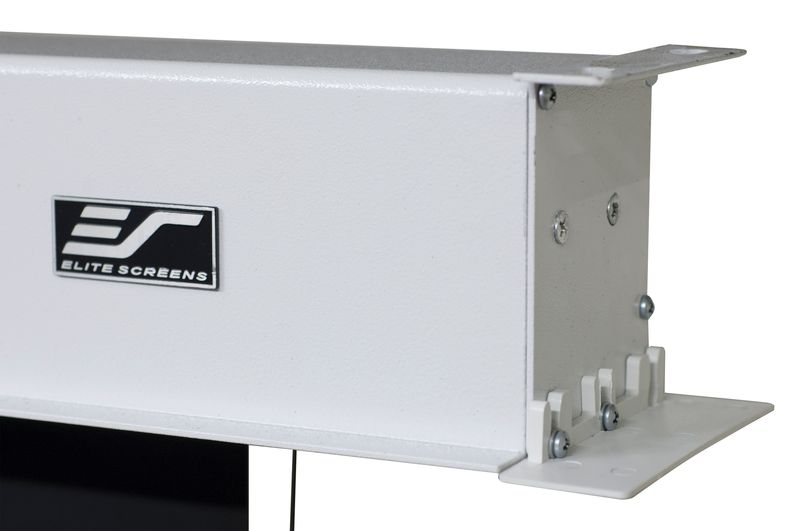

• Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant
• Concealed in-ceiling recessed front projection screen for multi-use rooms
• Installation kit included for above or below ceiling
• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
• Wireless 12v trigger capability via Radio Frequency remote control


Quality and Reliability
• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• Flame Retardant: Complies with NFPA 701 Standards
• GREENGUARD® and GREENGUARD® Gold Certified
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email or Web Chat.

• Product Data Sheet
