Elite Screens GolfSim DIY ImpactWhite, 268", AV, ImpactWhite fabric - DIY10X20-IPW1145-F

This GolfSim DIY ImpactWhite screen features a 264.1 in diagonal viewing surface. It has a Overall size of 118.1 H x 236.2 W in. Features ImpactWhite 1145 projection fabric

The ImpactWhite® 1145 is a multi-layer warp knitted fabric formulated for maximum strength to withstand golf ball impact while providing the highest image quality, and longevity. The dense material is also ideal for use with any other sport simulation applications.

*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.

Best for Environments: is best suited for living rooms, media rooms, and spaces with significant overhead ambient light. Its micro-ridged surface rejects up to 85% of overhead lighting to preserve deep blacks and high contrast.

• ImpactWhite® 1145 golf impact front projection material
• Resists indentations from golf impact and withstands ball speeds up to 200 mph.

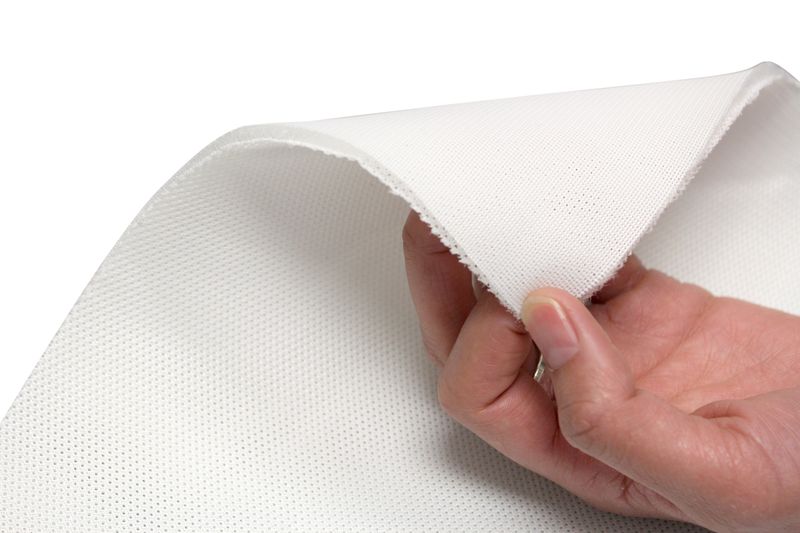

• 4.5 mm warp knitted fabric is comprised of three layers for maximum performance in image quality, shock absorption, and endurance
• ISF Certified for Accurate Color Reproduction
• Internal spacer suppresses and dampens the noise generated when golf ball impacts screen
• High-strength warp knitted fabric absorbs impact reducing ball bounce back
• Compatible with all Short and Standard throw projectors.
• Allows a clear and sharp presentation without loss of image fidelity
• Professionally engineered projection surface performs at a theater-grade level

GolfSim DIY ImpactWhite

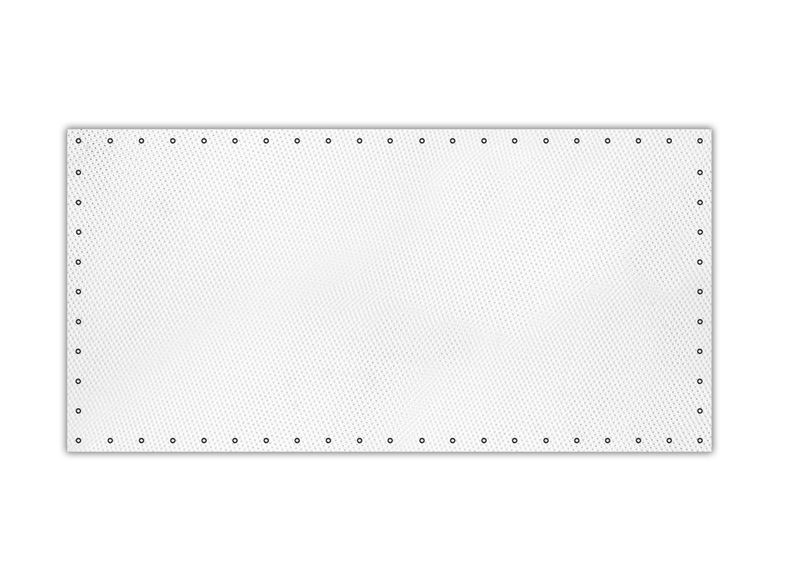

The GolfSim DIY Screen is a golf impact front projection material for golf simulator enclosures. It is a Do-it-Yourself (DIY) design that includes metal grommets all around the entire material to ensure the material is equally tensioned on all sides and perfect for custom frame golf /sport simulation enclosures.

Product Features – ImpactWhite® 1145

The ImpactWhite® 1145 is a multi-layer warp knitted fabric formulated for maximum strength to withstand golf ball impact while providing the highest image quality, and longevity.



Screen Material, Design and Installation
• ImpactWhite® 1145 golf impact front projection material
• ISF Certified for Accurate Color Reproduction
• Resists indentations from golf impact and withstands ball speeds up to 200 mph.
• Withstands up to 1,062 continuous golf ball strikes on same spot at 160 mph
• Average impact rebound less than 1.6 feet
• 4.5 mm warp knitted fabric is comprised of three layers for maximum performance in image quality, shock absorption, and endurance
• Internal spacer suppresses and dampens the noise generated when golf ball impacts screen
• High-strength warp knitted fabric absorbs impact reducing ball bounce back
• Allows a clear and sharp presentation without loss of image fidelity
• Professionally engineered projection surface performs at a theater-grade level

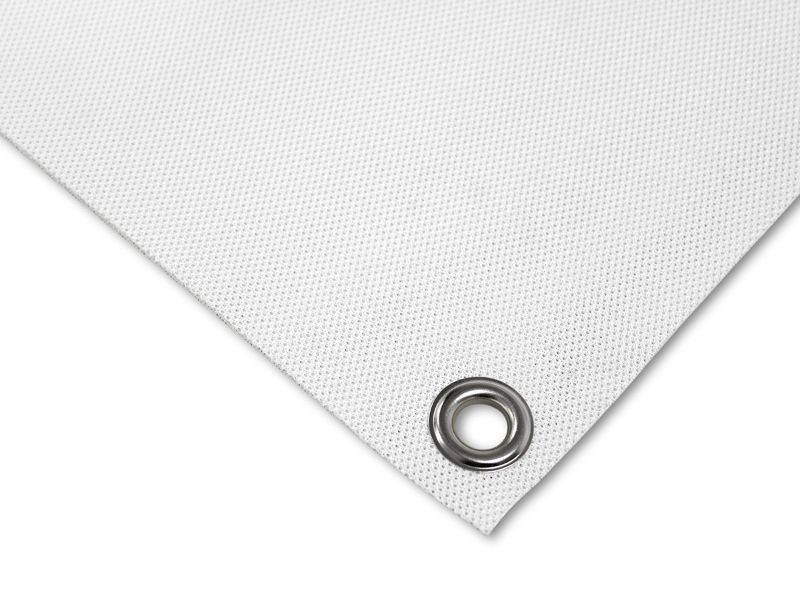

• Metal grommets surround entire material which allows material to be equally tensioned on all sides
• Works best with short throw projectors to avoid casting shadows and sufficient space for golf ball bounce back
• 4K/8K Ultra HD, Active 3D and HDR Ready
• ImpactWhite™ 1145 available in the following sizes:
• 10’ x 8’
• 10’ x 9.8’
• 10’ x 13.1’
• 10’ x 19.6’


Product Features – ImpactWhite® 360

Screen Material, Design and Installation
• ImpactWhite® 360 golf impact front projection screen material
• 1.0 gain with a 180° wide viewing angle allows viewers to see a clear bright uniform picture from any angle
• Resists golf impact and withstands ball speeds up to 200 mph.
• 1.2 mm tightly woven polyester material offers minimal impact noise and bounce back
• Metal grommets on a black leatherette velvet border surround entire material which allows material to be equally tensioned on all sides
• Allows a clear and sharp presentation without loss of image fidelity
• Designed to perform to high industry standards for cinema quality presentations
• ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems
• Available in the following sizes:
• 9.8′ x 8′
• 9.8′ x 13.1′
• 9.8′ x 9.8′
Quality and Reliability
• 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.

• Product Data Sheet
