Draper Skylight FlexShade® 2

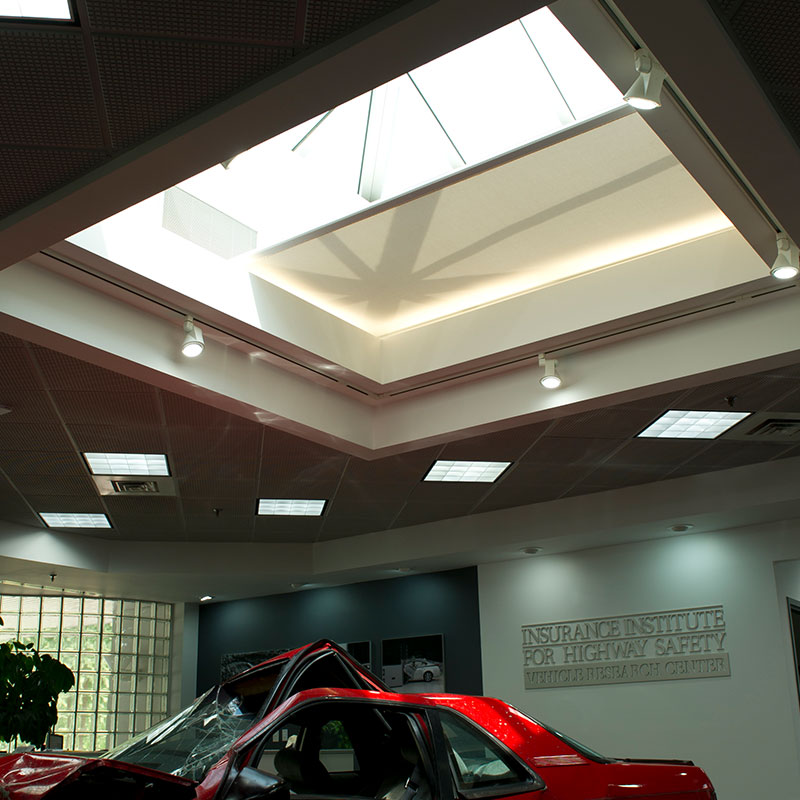

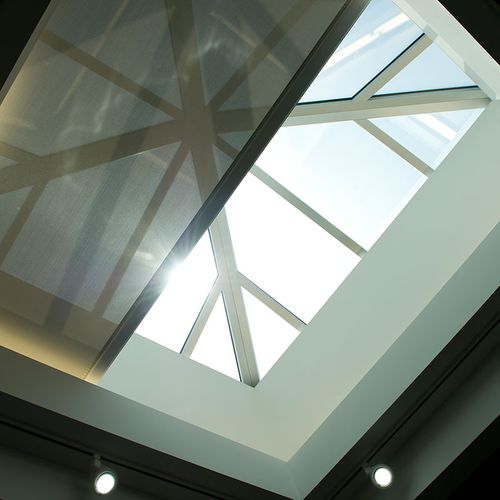

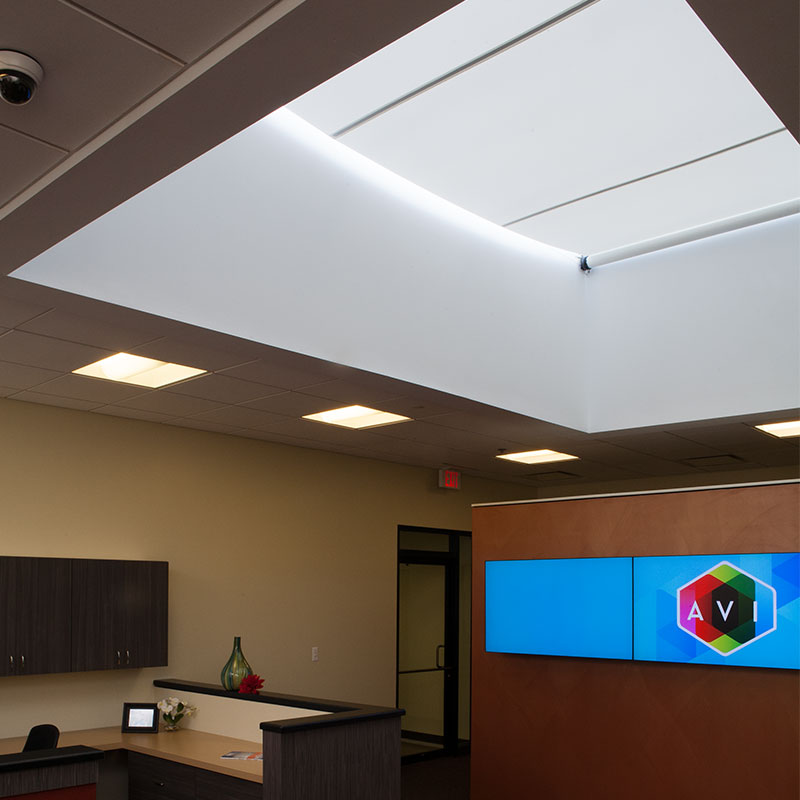

Skylight FlexShade® 2 offers motorized solar control for very large skylight applications. This window shade protects against solar heat gain and controls glare, protecting staff and furnishings from overhead sunlight, while creating a comfortable work environment.

• Available in sizes up to 13' wide x 20' high (396 cm x 610 cm), depending on fabric selection.

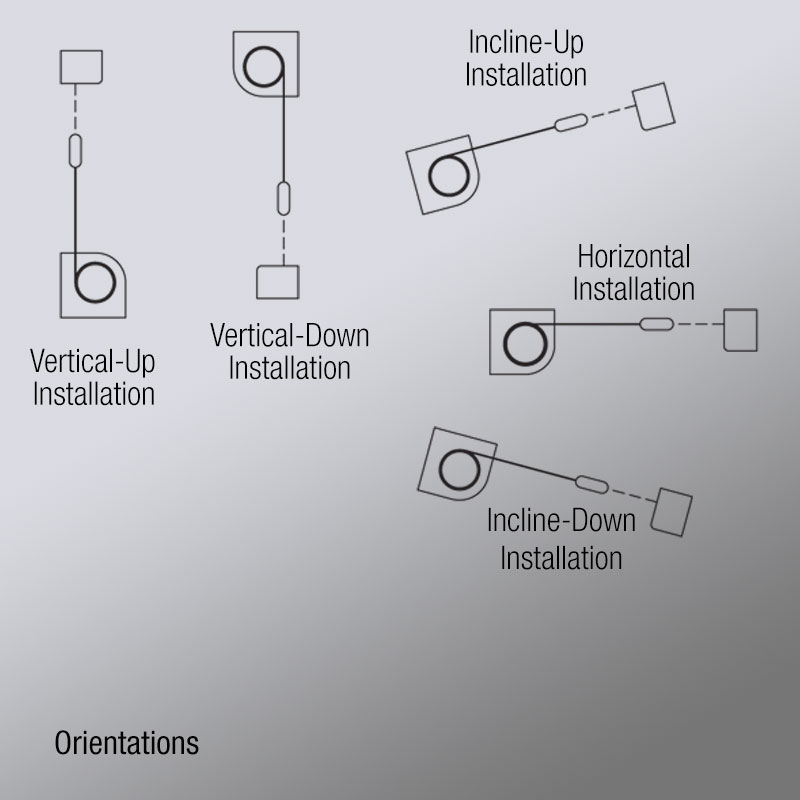

• Install at any angle, as long as rollers are level and parallel to the floor.
• Light gap 2-7/8" (73 mm) on three sides-variable gap due to fabric bundle diameter on roller end.

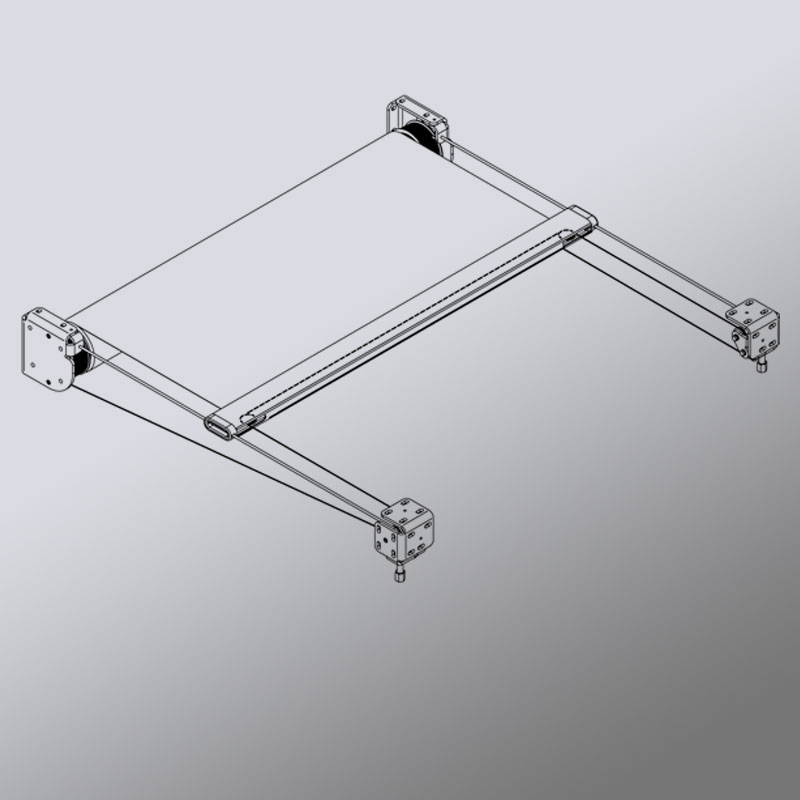

• Draw-cable/guide-cable brackets provided with pulley assemblies.
• Nylon coated cables are low-stretch, high-fatigue.
• Built-in pulley assemblies for routing of draw cable.
• Guide cables 3/16" (5 mm).
• Draw cables 1/16" (2 mm).
• Horizontal spring steel stays to withstand reasonable air pressure differentials and gravity.
• Adapter bracket white powder coat finish.
• Endcaps 5-13/16" x 5-13/16" (130 cm x 130 cm).
• Spline attached fabric.
• Product designed for interior use.
