Draper Acumen XL V Projector Screen, 182 3/8", 21:9 Ultrawide, CineFlex CH1200V, 220 V - 155220CB

This Acumen XL V projection screen has a viewing area of 71" x 168" for a 182 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.

Acumen® XL V Electric Projection Screen

A beautiful below-the-ceiling projection screen for larger sizes, Acumen® XL V meets the demand of heavy use yet fits seamlessly into today's elegant interiors. The smooth, curved aluminum housing and a white powder coat finish complement any room design. Floating mounting brackets provide this tab-tensioned, wall- or ceiling-mounted electric screen quick and easy installation. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with enhanced image quality. Fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.

• Case dimensions: 9-1/4” h x 8-1/8” d 1(235 mm x 206 mm). Maximum image width up to 18’ (5.5 m) wide.

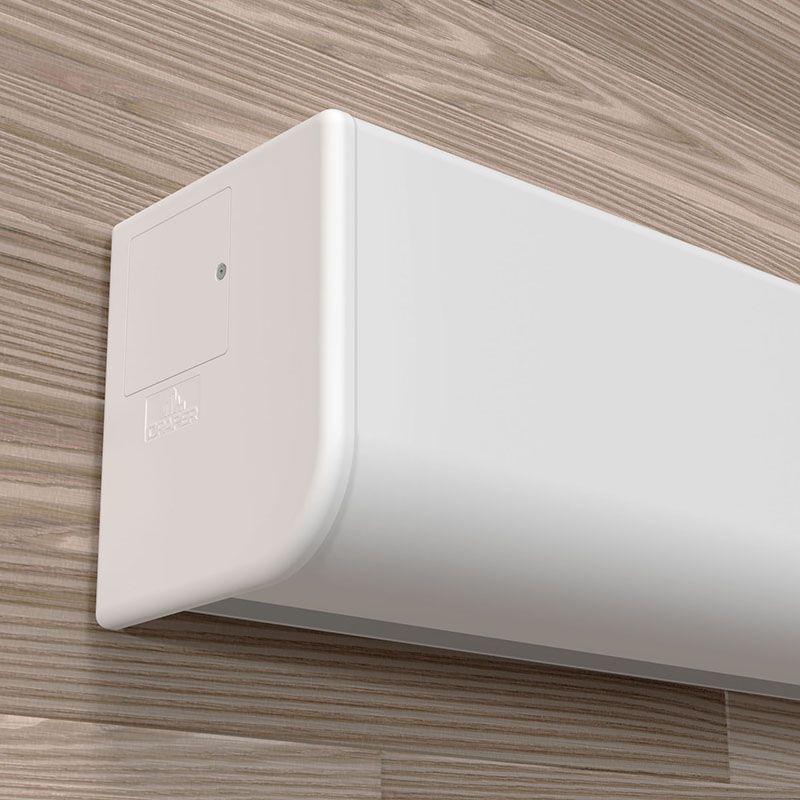

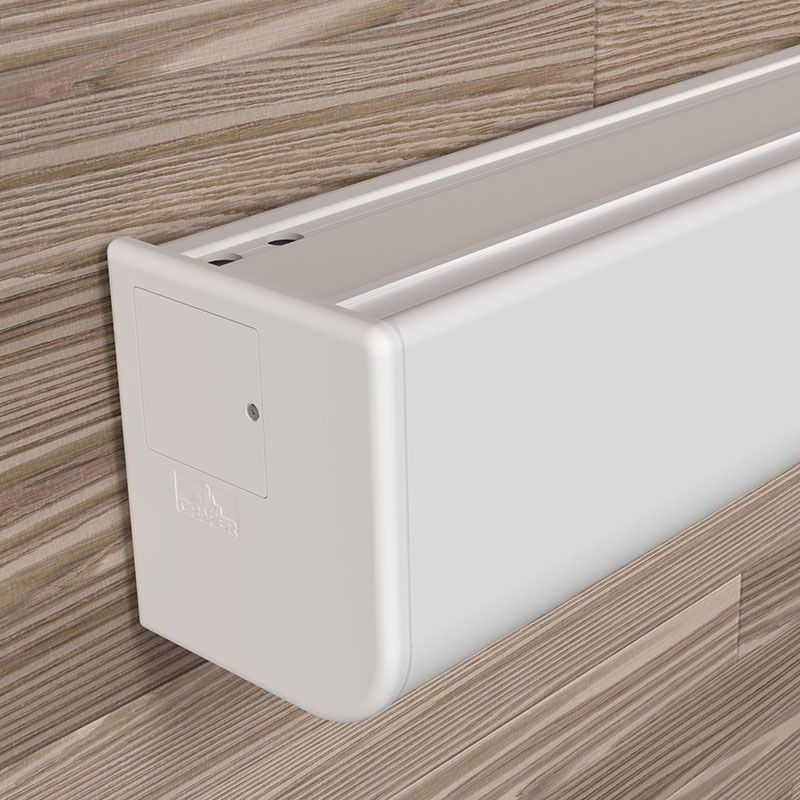

• Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
• Full line of Draper® viewing surfaces including our award-winning, 8K-ready TecVision® surfaces are available. Rear projection surfaces available.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
• Floating mounting brackets included. Ceiling suspension brackets available.
• Fascia removable for easy access to roller and motor for service.
• Custom sizes available.
• UL Listed.
• Seven-year warranty. *USA and Canada only.
