Draper Acumen XL V Projector Screen, 208 3/8", 21:9 Ultrawide, CineFlex CH1200V, 110 V - 155121CB

Draper Acumen XL V Projector Screen, 208 3/8", 21:9 Ultrawide, CineFlex CH1200V, 110 V - 155121CB

Part Number: 155121CB
Regular price: $7,069.00Click to See Low PriceOur Price: $6,857.00
Availability: Usually ships the same business day


This Acumen XL V projection screen has a viewing area of 81" x 192" for a 208 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

CineFlex CH1200V (formerly CineFlex)

CineFlex CH1200V
Controlled Viewing Cone/High Contrast/On-Axis Gain of 1.2

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.

Acumen® XL V Electric Projection Screen

Product Description

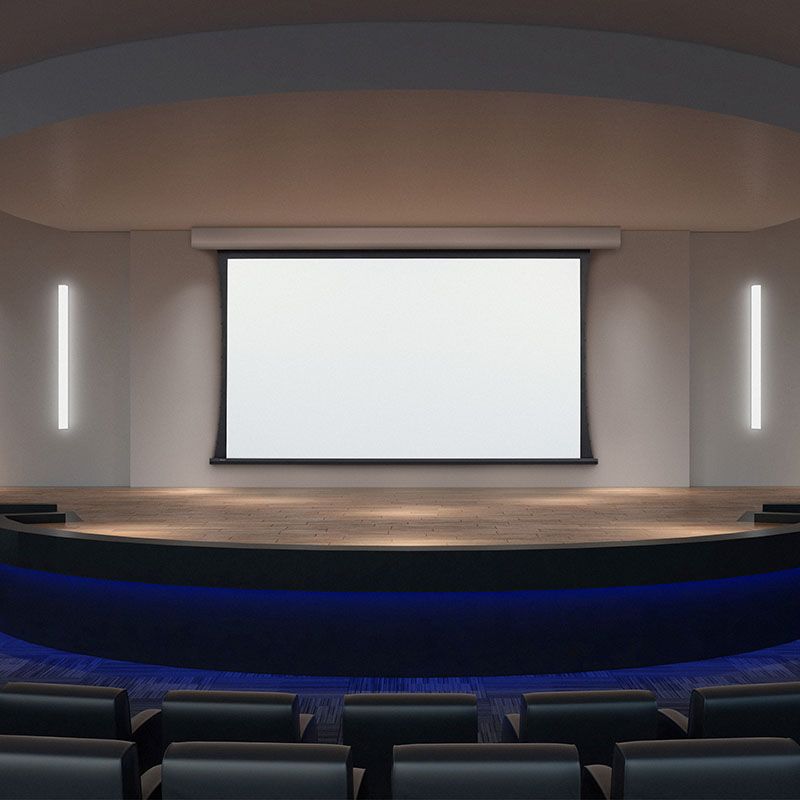

A beautiful below-the-ceiling projection screen for larger sizes, Acumen® XL V meets the demand of heavy use yet fits seamlessly into today's elegant interiors. The smooth, curved aluminum housing and a white powder coat finish complement any room design. Floating mounting brackets provide this tab-tensioned, wall- or ceiling-mounted electric screen quick and easy installation. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with enhanced image quality. Fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.

Product Specs
  • Case dimensions: 9-1/4” h x 8-1/8” d 1(235 mm x 206 mm). Maximum image width up to 18’ (5.5 m) wide.

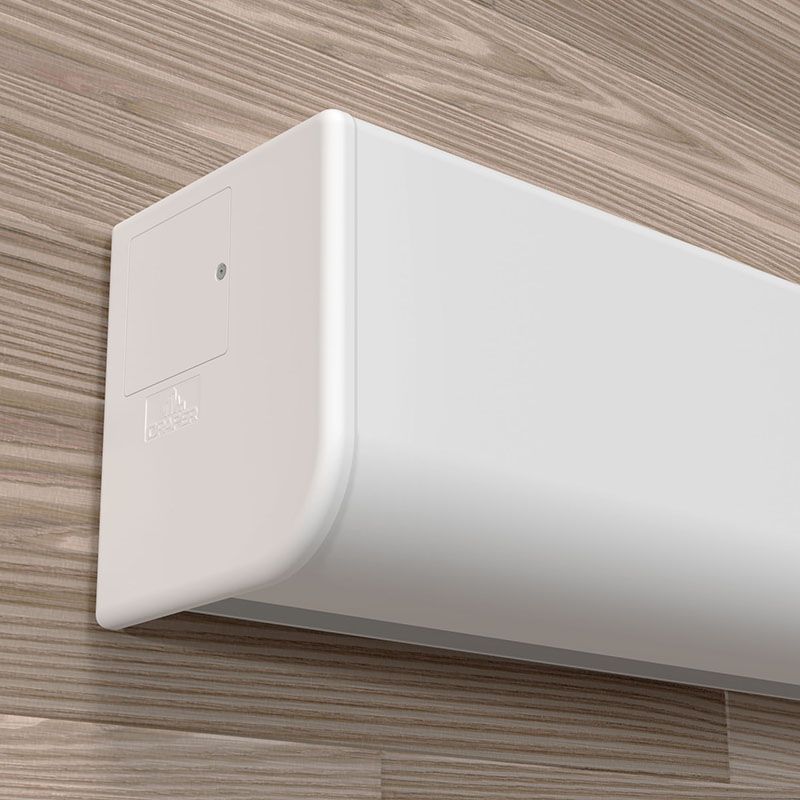

  • Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
  • Full line of Draper® viewing surfaces including our award-winning, 8K-ready TecVision® surfaces are available. Rear projection surfaces available.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

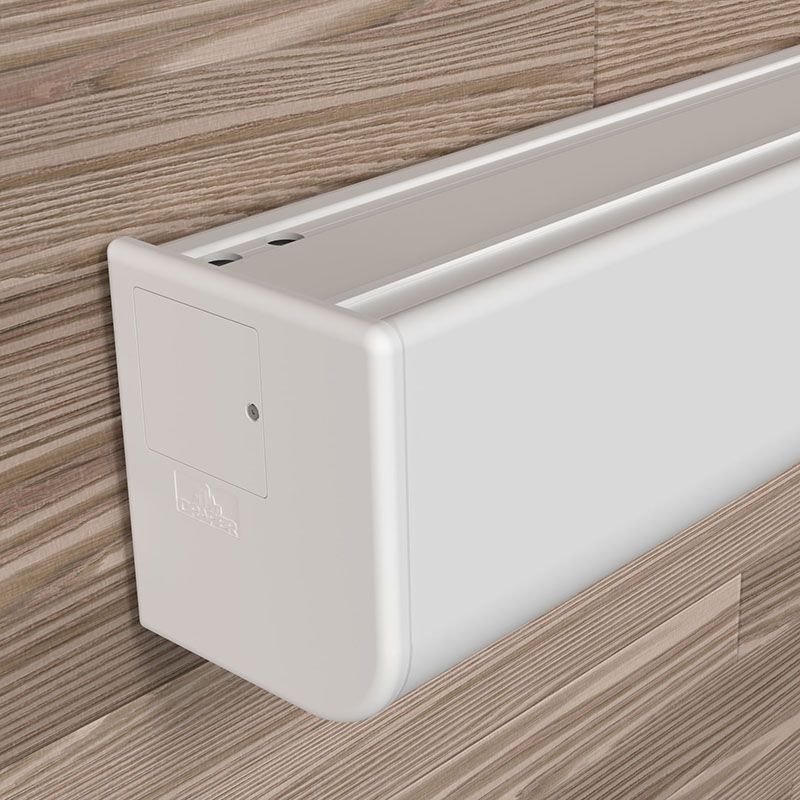

  • Floating mounting brackets included. Ceiling suspension brackets available.
  • Fascia removable for easy access to roller and motor for service.
  • Custom sizes available.
  • UL Listed.
  • Seven-year warranty. *USA and Canada only.
