Draper Access XL V Projector Screen, 208 3/8", 21:9 Ultrawide, CineFlex CH1200V, 110 V - 147016CB

This Access XL V projection screen has a viewing area of 81" x 192" for a 208 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.

Access XL V Electric Projection Screen

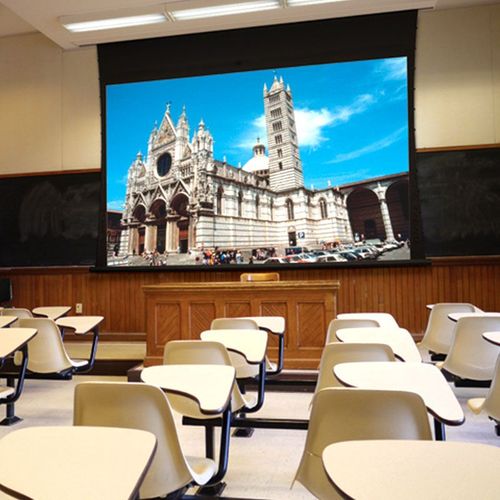

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

• Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
• Maximum image width up to 18' (549 cm) wide, depending on surface selection.
• RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Sliding brackets on top of the case allow for adjustments for mounting.
• Sliding brackets inside case accommodate different size screens.
• Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
• White case standard, black available upon request.
• Custom sizes available.
• UL Listed.
