Draper Ultimate Access XL V Projector Screen, 17' 4375, 21:9 Ultrawide, CineFlex CH1200V, 110 V - 145067CB

This Ultimate Access XL V projection screen has a viewing area of 81" x 192" for a 17' 4375 diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.

Ultimate Access XL V Electric Projection Screen

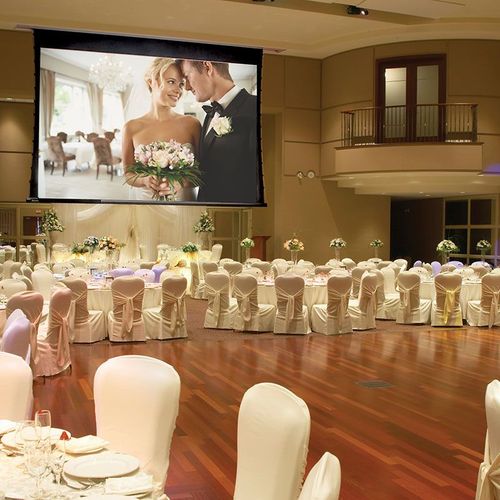

Ideal for major venues, conference centers, ballrooms, or university classrooms, the Ultimate Access XL V projection screen accommodates larger sizes. An independently motorized ceiling closure opens into the case and the screen retracts behind a lower panel, so no fasteners are visible. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. The Ultimate Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

• Case dimensions are 14-1/16" high x 10-3/8" deep (36 cm x 26 cm), includes trim flange. White case standard, black available upon request.
• Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details.
• Maximum image width up to 22' (671 cm) wide, depending on surface selection.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Sliding brackets on top of case allow unlimited adjustment for mounting. Sliding brackets inside case accommodate different size screens.
• Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
• Independently motorized ceiling closure opens into the case
• Junction box and 110V three-position wall switch included for recessed wall mounting.
• Low voltage video interface or other controls can be built into the housing for below ceiling access.
• White case standard, black available upon request
• Custom sizes available.
• UL Listed.
