Draper Ultimate Access XL V Projector Screen, 15' 2375, 21:9 Ultrawide, CineFlex White XT700V, 110 V - 145066CD

Draper Ultimate Access XL V Projector Screen, 15' 2375, 21:9 Ultrawide, CineFlex White XT700V, 110 V - 145066CD

Part Number: 145066CD
Our Price: $16,086.00
Availability: Usually ships the same business day
-
+

Description

This Ultimate Access XL V projection screen has a viewing area of 71" x 168" for a 15' 2375 diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex White XT700V projection surface.

About CineFlex White XT700V Fabric:

CineFlex White XT700V

CineFlex White XT700V
Extra Wide Viewing Cone/Typical Contrast/On-Axis Gain of 0.7

The CineFlex White XT700V white rear projection surface works well for edge matching or blending and short throw rear projection applications. A reasonable control of ambient light is recommended. Surface has a broad viewing cone and high resolution. Typically used as a rear projection surface, it can be used in dual or low gain front projection applications. This is a foldable viewing surface that can be used on folded, fixed, or roller-operated screens.


Ultimate Access XL V Electric Projection Screen

Product Description

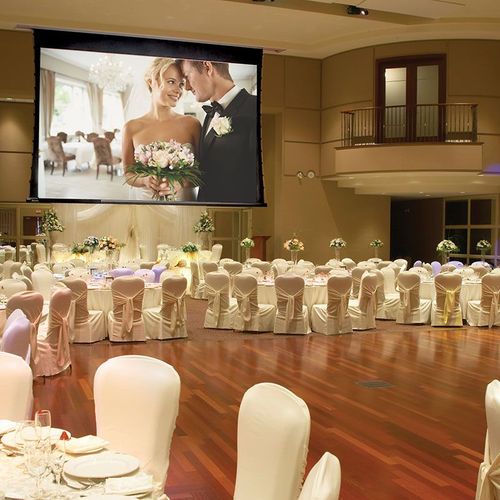

Ideal for major venues, conference centers, ballrooms, or university classrooms, the Ultimate Access XL V projection screen accommodates larger sizes. An independently motorized ceiling closure opens into the case and the screen retracts behind a lower panel, so no fasteners are visible. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. The Ultimate Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 14-1/16" high x 10-3/8" deep (36 cm x 26 cm), includes trim flange. White case standard, black available upon request.
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details.
  • Maximum image width up to 22' (671 cm) wide, depending on surface selection.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of case allow unlimited adjustment for mounting. Sliding brackets inside case accommodate different size screens.
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
  • Independently motorized ceiling closure opens into the case
  • Junction box and 110V three-position wall switch included for recessed wall mounting.
  • Low voltage video interface or other controls can be built into the housing for below ceiling access.
  • White case standard, black available upon request
  • Custom sizes available.
  • UL Listed.
