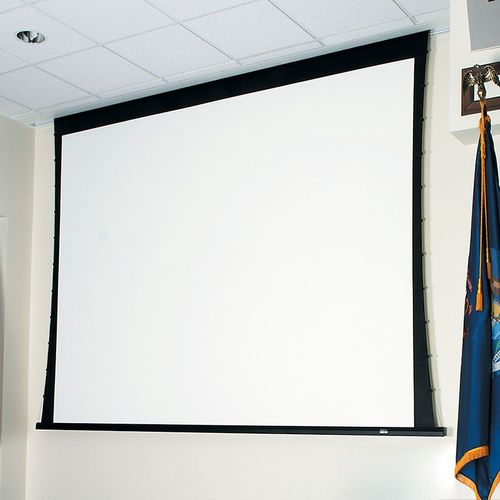

Draper Ultimate Access V Projector Screen, 152", 21:9 Ultrawide, CineFlex White XT700V, 110 V - 143063CD

Draper Ultimate Access V Projector Screen, 152", 21:9 Ultrawide, CineFlex White XT700V, 110 V - 143063CD

Part Number: 143063CD
Regular price: $9,954.00Click to See Low PriceOur Price: $9,655.00
Availability: Usually ships the same business day


This Ultimate Access V projection screen has a viewing area of 59" x 140" for a 152" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex White XT700V projection surface.

About CineFlex White XT700V Fabric:

CineFlex White XT700V

CineFlex White XT700V
Extra Wide Viewing Cone/Typical Contrast/On-Axis Gain of 0.7

The CineFlex White XT700V white rear projection surface works well for edge matching or blending and short throw rear projection applications. A reasonable control of ambient light is recommended. Surface has a broad viewing cone and high resolution. Typically used as a rear projection surface, it can be used in dual or low gain front projection applications. This is a foldable viewing surface that can be used on folded, fixed, or roller-operated screens.

Ultimate Access V Electric Projection Screen

Product Description

Complete concealment and smooth clean design makes the Ultimate Access V projection screen ideal for boardrooms, mid-sized training rooms, universities, or home theaters. An independently motorized ceiling closure opens into the case and the screen retracts behind a lower panel, so no fasteners are visible. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. The Ultimate Access V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 12' (366 cm) wide, depending on surface selection.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with T bracket to provide accessibility for service or maintenance.
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
  • RF welded tabs create a more durable seal eliminating separation and stickiness.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage video interface or other controls can be built into the housing for below ceiling access.
  • White case standard, black available upon request
  • Custom sizes available.
  • UL Listed.
