Draper Ultimate Access V Projector Screen, 152", 21:9 Ultrawide, CineFlex CH1200V, 110 V, with Quiet Motor - 143063CBQ

Draper Ultimate Access V Projector Screen, 152", 21:9 Ultrawide, CineFlex CH1200V, 110 V, with Quiet Motor - 143063CBQ

Part Number: 143063CBQ
Regular price: $10,171.00Click to See Low PriceOur Price: $9,866.00
Availability: Usually ships the same business day


This Ultimate Access V projection screen has a viewing area of 59" x 140" for a 152" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

CineFlex CH1200V (formerly CineFlex)

CineFlex CH1200V
Controlled Viewing Cone/High Contrast/On-Axis Gain of 1.2

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.

Ultimate Access V Electric Projection Screen

Product Description

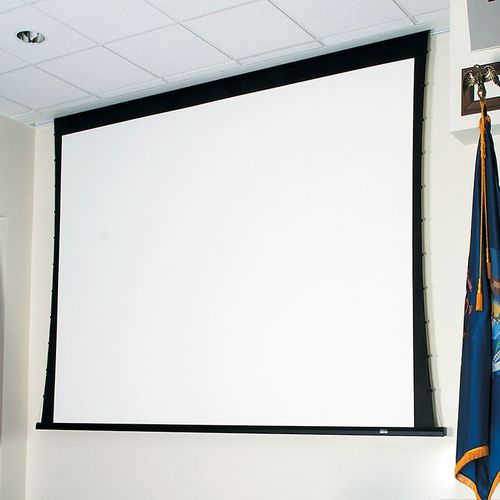

Complete concealment and smooth clean design makes the Ultimate Access V projection screen ideal for boardrooms, mid-sized training rooms, universities, or home theaters. An independently motorized ceiling closure opens into the case and the screen retracts behind a lower panel, so no fasteners are visible. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. The Ultimate Access V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 12' (366 cm) wide, depending on surface selection.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with T bracket to provide accessibility for service or maintenance.
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
  • RF welded tabs create a more durable seal eliminating separation and stickiness.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage video interface or other controls can be built into the housing for below ceiling access.
  • White case standard, black available upon request
  • Custom sizes available.
  • UL Listed.
