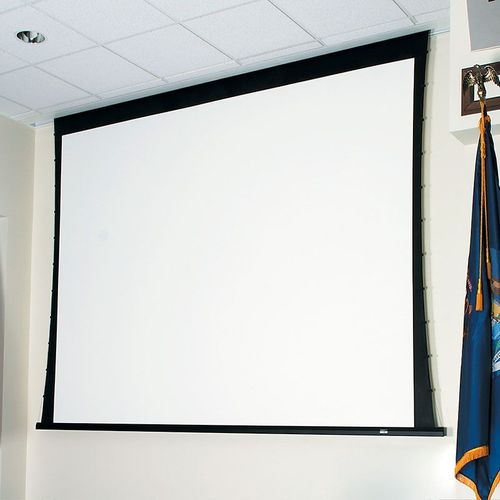

Draper Ultimate Access V Projector Screen, 104 1/4", 21:9 Ultrawide, Grey XH600V, 110 V - 143061FB

Draper Ultimate Access V Projector Screen, 104 1/4", 21:9 Ultrawide, Grey XH600V, 110 V - 143061FB

Part Number: 143061FB
Regular price: $7,701.00Click to See Low PriceOur Price: $7,470.00
Availability: Usually ships the same business day
-
+

Description

This Ultimate Access V projection screen has a viewing area of 40 1/2" x 96" for a 104 1/4" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's Grey XH600V projection surface.

About Grey XH600V Fabric:

Grey XH600V (formerly HiDef Grey)

Grey XH600V
Extra Wide Viewing Cone/High Contrast/On-Axis Gain of 0.6

Grey front projection surface with black backing provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors. Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone. This surface has achieved GREENGUARD GOLD Certification. Available with black backing upon request.


Ultimate Access V Electric Projection Screen

Product Description

Complete concealment and smooth clean design makes the Ultimate Access V projection screen ideal for boardrooms, mid-sized training rooms, universities, or home theaters. An independently motorized ceiling closure opens into the case and the screen retracts behind a lower panel, so no fasteners are visible. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. The Ultimate Access V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 12' (366 cm) wide, depending on surface selection.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
  • RF welded tabs create a more durable seal eliminating separation and stickiness.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low voltage video interface or other controls can be built into the housing for below ceiling access.
  • White case standard, black available upon request
  • Custom sizes available.
  • UL Listed.
