Draper Access V Projector Screen, 104 1/4", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 220 V - 140139SC

Draper Access V Projector Screen, 104 1/4", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 220 V - 140139SC

Part Number: 140139SC
Regular price: $5,498.00Click to See Low PriceOur Price: $5,333.00
Availability: Usually ships the same business day


This Access V projection screen has a viewing area of 40 1/2" x 96" for a 104 1/4" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's ClearSound NanoPerf XT1000V projection surface.

About ClearSound NanoPerf XT1000V Fabric:

ClearSound NanoPerf XT1000V

ClearSound NanoPerf XT1000V
Extra Wide Viewing Cone/Typical Contrast/Recommended Viewing Cone 180

An acoustically-transparent surface, full 180 viewing cone, and accurate color reproduction makes the ClearSound NanoPerf XT1000V ideal for home theaters. NanoPerf refers to microscopic perforation patterns in a projection screen that allow sound to travel from speakers behind the screen to ensure a quality cinematic experience. Acoustically-transparent NanoPerf is ideal when viewers are at least 10 (305 cm) from the screen.

Access V Electric Projection Screen

Product Description

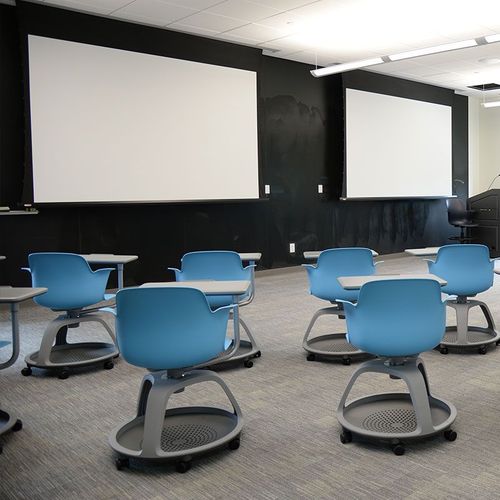

Ideal for mid-sized spaces, the Access V projection screen is a great choice for board rooms, classrooms, home theaters, or training rooms. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with T bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low-voltage, video interface or other controls can be built into housing for below ceiling access.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.
