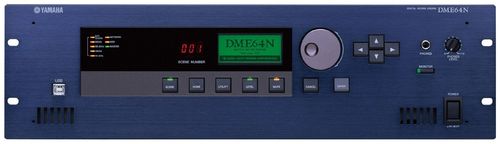

Yamaha Programmable, Networkable Mixing Engine - DME64N

Yamaha Programmable, Networkable Mixing Engine - DME64N

Part Number: DME64N
Call for Pricing
Availability: Usually ships the same business day


To order this product, please give our sales team a call at 1-888-686-0551 for pricing!
Programmable, Networkable Mixing Engines for a Range of Audio Processing Applications

With unparalleled DSP power the Yamaha DME64N and DME24N Digital Mixing Engines offer customizable audio system solutions for a wide range of applications. These versatile mixing engines offer an impressive array of DSP components that can be combined and programmed to precisely accommodate just about any audio requirements - even in highly complex systems. Superior sound quality, generous DSP power, extensive scalability, and network capability - all supported by an intuitive interface - offer unprecedented freedom and efficiency for designing audio systems for installations and live sound.


  • DSP Power that Rivals Advanced Digital Mixers
  • 24-bit 96-kHz Processing and Circuitry Designed for Superior Sound
  • Exceptional I/O Flexibility and Expandability - Cascade Up to 8 DME64N Units for 512 Inputs and 512 Outputs
  • Control Integration with the PM5D Digital Mixing Console
  • Eight Analog Inputs and Outputs on the DME24N
  • Ethernet Control
  • GPI, RS232C/RS422, USB, and MIDI Interfaces
  • Large LCD Display with Comprehensive Panel Controls
  • Scene and Function Names in 5 Languages


nternal processing32bit
Sampling frequency rateInternal44.1kHz, 48kHz, 88.2kHz, 96kHz
-External44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
Signal delayLess than 0.85 ms (MY8-AD96 to MY8-DA96)
Dynamic rangeDA: 106 dB
Crosstalk-80 dB
Power requirementsDepend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power consumption80W
DimensionsW480mm; 18-7/8in
-H145mm; 5-3/4in (3U)
-D411.5mm; 16-1/4in
Net weight9.5kg; 20.9lbs
AccessoriesOwner's manual, DME Designer Installation Guide, AC power cord, AC plug clamp, 2x 16-pin Euroblock plug, 4x 8-pin Euroblock plug
