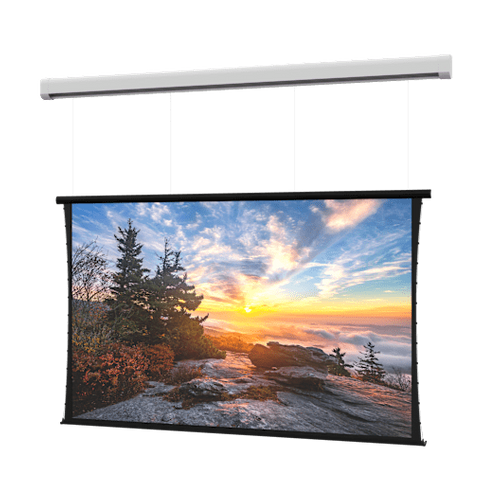

Da-Lite Myriad Reveal, 105" x 168" with HD Progressive ReView 0.9 - DL100177L

The wall and ceiling mounted screen features versatile and adjustable brackets – that accommodate either mounting preference.

Electrically operated 120 volt (60Hz) not more than 2.4 amp. Shall have specially designed motor mounted inside the roller, to be three wire with ground quick reversal type, oiled for life, with automatic thermal overload cut-out, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable limit switches to automatically stop picture surface in the “up” and “down” positions. Junction box shall be internally integrated into the housing. The junction box shall contain a quick connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The fabric roller to be of rigid metal. Case to be a single-piece design made of extruded aluminum with a white, lightly textured powder coat finish. Bottom of case to have a removable access panel. Panel to be of extruded aluminum powder coated white. To be complete with integrated low voltage control unit and three position control switch and cover plate.

SightLine, Da-Lite’s thin cable drop feature, elegantly suspends the screen surface and eliminates black drop – the black border above the projection screen. Specifying drop distance upon ordering is a thing of the past. Now, vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 16’ (5 m) between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement.

In SightLine models, an innovative weighted bar doubles as a closure door – black, to blend in with the border when the screen is fully deployed and the bar smoothly rotates to white to blend into the sleek waterfall case aesthetic when retracted.

• Tensioned with SightLine

• Standard white powder-coated aluminum finish; available in black upon request
• Convenient push button on end cap allows access to wiring

• SightLine models (tensioned and non-tensioned) include 16’ (5 m) cable of fully adjustable cable drop

• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
• Dry contact interface
• Projector trigger (5-12V)

• Seamless surfaces in all models
• Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
• In tensioned models, TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness

Patent pending: 63/549,128 and 63/549,035

Tensioned Models: Screen fabric to be flame retardant and mildew resistant vinyl with black masking borders standard. Each side of the screen surface to have tab guide cable system to maintain even lateral tension and hold surface flat. Custom slat bar with added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy duty plastic caps enclosing a preset adjustable mechanism for screen tensioning.

SightLine Models: Roller designed to drop material from case on (4) 1.5mm galvanized aircraft cables. 16' (5m) maximum cable drop

SightLine Models (Tensioned and Non-Tensioned)

• All screens standard with 16' (5m) of fully adjustable cable drop. Drop to be set to 24" at the factory and adjusted to desired distance during installation.
• HD Progressive ReView 0.9 and Da-Tex rear projection surfaces will include an additional 22" of black at the top.
