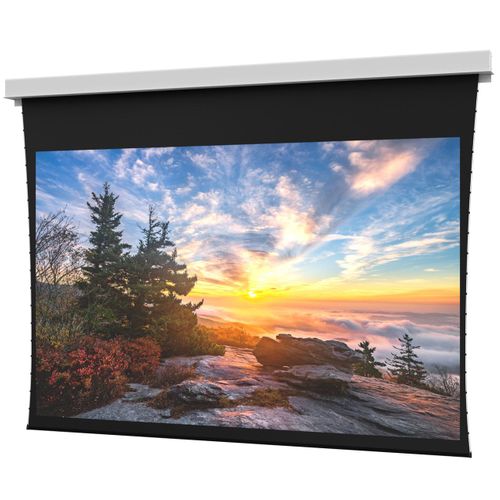

Da-Lite Myriad Reveal Tensioned Projection Screen, 193 in Diag. 16:9, HD Progressive 1.1 Contrast - DL100103L

This Myriad Reveal Tensioned screen features a 193 in diagonal viewing surface and viewing size of 94.5 X 168 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features HD Progressive 1.1 Contrast projection fabric

HD Progressive 1.1 Contrast is a front projection screen surface designed for high resolution up to 16K. Recommended for laser projectors with ultra-short, short, and standard throw lenses, its light gray appearance enhances image contrast and is available in sizes up to 16' high seamless. This premium surface is ideal for projects with small and large venue projection needs and is GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality. HD Progressive 1.1 Contrast can be cleaned with mild soap and water, is flame retardant and mildew resistant.

Myriad Reveal Tensioned

The wall and ceiling mounted screen features versatile and adjustable brackets – that accommodate either mounting preference.

Electrically operated 120 volt (60Hz) not more than 2.4 amp. Shall have specially designed motor mounted inside the roller, to be three wire with ground quick reversal type, oiled for life, with automatic thermal overload cut-out, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable limit switches to automatically stop picture surface in the “up” and “down” positions. Junction box shall be internally integrated into the housing. The junction box shall contain a quick connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The fabric roller to be of rigid metal. Case to be a single-piece design made of extruded aluminum with a white, lightly textured powder coat finish. Bottom of case to have a removable access panel. Panel to be of extruded aluminum powder coated white. To be complete with integrated low voltage control unit and three position control switch and cover plate.

• Standard Black Drop
• Tensioned
• Case
  • Standard white powder-coated aluminum finish; available in black upon request
  • Convenient push button on end cap allows access to wiring on wall and ceiling mounted products.
• Screen Drop
  • Tensioned models standard with 12” (30.5 cm) of black drop
• Screen Control
• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
• Dry contact interface
• Projector trigger (5-12V)
• Screen Surfaces
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
• In tensioned models, TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Patent pending: 63/549,128 and 63/549,035

Tensioned Models: Screen fabric to be flame retardant and mildew resistant vinyl with black masking borders standard. Each side of the screen surface to have tab guide cable system to maintain even lateral tension and hold surface flat. Custom slat bar with added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy duty plastic caps enclosing a preset adjustable mechanism for screen tensioning.

Tensioned Models with Standard Drop: All screens standard with 12" black drop at the top. Extra drop may alter case dimensions.

• Product Data Sheet
