Intelix 8x8 VGA Twisted Pair Matrix - DIGI-VGASD-8X8

Intelix 8x8 VGA Twisted Pair Matrix - DIGI-VGASD-8X8

Part Number: DIGI-VGASD-8X8
Our Price: $6,911.00
Availability: Usually ships the same business day.
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

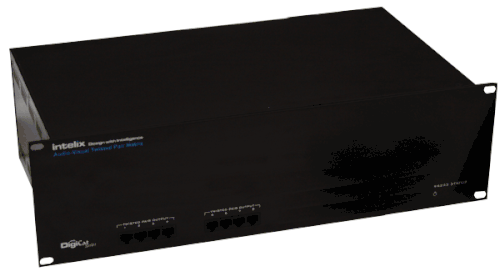

Intelix 8x8 VGA Twisted Pair Matrix - DIGI-VGASD-8X8

Tired of sifting through spec sheets and wiring multiple diverse components? Fed up with long, bulky cable runs? Simplify with Intelix DIGI-VGASD twisted pair matrices.

The DIGI-VGASD-8X8 combines a comprehensive audio/video switcher with Intelix's industry-leading twisted pair extenders. Plus, a separate internal control matrix provides independent bi-directional RS232 and IR switching and distribution -- switch audio, video, and control and transmit it all over a single twisted pair cable.

The DIGI-VGASD-8X8 provides eight analog video and stereo audio inputs which may be distributed to eight twisted pair outputs in any combination. The extender outputs support VGA video distribution up to 350 feet and high-definition component video (YPbPr) distribution up to 1,000 feet. The system is compatible with most third-party control systems and includes control software.

Design with Intelix and Design with Intelligence.

DIGI-VGASD-8X8 Feature Focus

8 analog video and stereo audio inputs. The DIGI-VGASD-8X8 features eight HD15 connectors for VGA video or YPbPr video (with the addition of a BRKOUT-CBL RCA breakout cable), as well as eight 1/8" mini (3.5 mm) stereo audio connectors. The matrix is also compatible with composite video and Y/C video with the addition of a breakout cable.

8 twisted pair outputs. Forget the little boxes. The DIGI-VGASD-8X8 features built-in twisted pair extenders on each output channel, providing UXGA (1600x1200) distribution up to 350 feet and 1080i YPbPr distribution up to 1,000 feet.

True matrix switching. The DIGI-VGASD-8X8 employs dual internal switchers -- the first for audio and video, the second for control. This means serial commands may be distributed to any destination regardless of the audio/video routing. And, of course, any audio/video input may be routed to any twisted pair output.

HD compatible. The matrix supports VGA resolutions up to 1600x1200 and component video resolutions of 480i, 480p, 720p and 1080i.

Serial control. The system is controlled via an RS232 serial port and is compatible with most third-party control systems. For PC control, Intelix includes Smart Control software with each purchase.

Bi-directional RS232 and IR twisted pair pass-through. Most extenders struggle with audio and video over a single cable. The unique circuitry inside the DIGI-VGASD-8X8 interlaces RS232, IR, and high-definition video with stereo audio -- and all of the signals are completely transparent to one another. The RS232 is bi-directional and output channel addressable. IR commands are transmitted from the remote destinations, over the twisted pair cable, into the matrix, and out to the relevant output.

Fully compatible with Intelix SD Series receivers. The DIGI-VGASD-8X8 is compatible with all Intelix SD Series receivers, including both modular and wallplate models.

Simultaneous multiple video format support. Dual output DIGI-VGASD-R receivers support VGA and YPbPr video--both with stereo audio and control--simultaneously with a single twisted pair cable. Simply connect output one with a VGA cable and output two with BRKOUT-CBL breakout cable. The matrix will take care of the rest!

Example System 1:

Specifications

Max Twisted Pair Distance 1600 x 1200 VGA: 350 feet
1080i YPbPr: 1,00 feet
Maximum VGA Resolution 1600 x 1200
YPbPr Resolutions 480i, 480p, 720p, 1080i
Video Amplifier Bandwidth 300 MHz
Audio Frequency Response 20 Hz and 20 kHz
Status Front panel power and com LEDs
Cable Cat 5, Cat 5e, Cat 6 and Cat 7 compatible
Connectors (8) RJ45
(8) HD15 - video
(8) 1/8" mini (3.5 mm) - stereo audio
(8) 1/8" mini (3.5 mm) - IR
(1) DB9 - RS232
Control RS232
Compatible Receivers DIGI-VGASD-R
DIGI-VGASD-WP-R
DIGI-V3A2-R
DIGI-V3SD-R
Dimensions 3 RU
Enclosure Shielded metal housing
Operating Temperature -41 to 95 degrees F (-5 to 35 degrees C)
Operating Humidity Range 5 to 90% non-condensating
Regulatory CE, RoHS
Intelix Part Number DIGI-VGASD-8X8
Warranty 2 years
