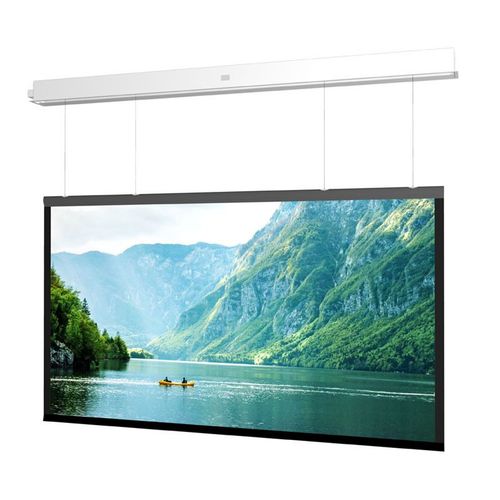

Da-Lite Advantage SightLine Projection Screen, 164 in Diag. 16:10, Matte White - DL15273L

This Advantage SightLine screen features a 164 in diagonal viewing surface and viewing size of 87 X 139 in. 16:10 aspect ratio is idea for business presentation content, and is a good compromise for scenarios where many aspect ratios will be used Features Matte White projection fabric

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product. Contact a Sales Partner for more information or consult the Specification Sheet.

Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.

This surface has achieved GREENGUARD GOLD Certification.

Advantage SightLine

The Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed.

Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage.

Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.

Advantage with SightLine™

Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184” Diagonal in 16:9 and up to 189” Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" (standard) or 10' (option) between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future proofing for height adjustability – this is the fine line between status quo and jaw drop.

On December 11, 2023 our motors with built-in low voltage control were enhanced to provide a more efficient and user-friendly installation experience. Click here to learn more.

• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• UL Plenum rated case
• White powder-coated case for a clean aesthetic
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models

• Product Data Sheet
