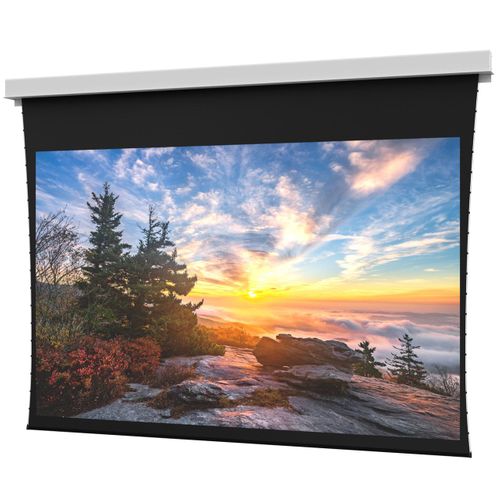

Da-Lite Myriad Conceal, 105" x 168" with HD Progressive 1.1 Contrast - DL100237L

The ceiling recessed screen, designed with ceiling trim in place to conceal the rough opening, eliminates the need to complete additional trim work once the screen is installed.

Electrically operated 120 volt (60 Hz) not more than 2.4 amp. with a quick connect male plug-in connector on the motor. Shall have specially designed motor mounted inside the roller, to be three wire with ground, quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. To have preset but adjustable limit switches to automatically stop picture surface in the “up” and “down” positions. Junction box shall be internally integrated into the housing making it possible to install the housing and wire to the building’s electrical system during construction. The junction box shall contain a quick connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The motorized fabric and roller assembly to be installed in the case at the factory or at a later time at the job site. The fabric roller to be of rigid metal. Screen fabric to be seamless and mildew resistant with black masking borders standard. Case shall be a white powder coated extruded aluminum. End caps to be of heavy gauge steel powder coated white. A section of the bottom of the case shall be an aluminum door equipped with hinges so that it opens and closes automatically with the lowering and raising of the picture surface. When the picture surface is being lowered, the door shall drop open by gravity. When the picture surface is being raised, the two ends of the slat at the bottom screen fabric shall engage two hooks on the door to lift it to the closed position. The balance of the bottom of the case shall be a second removable aluminum door with manual opening to provide access. Doors to be of extruded aluminum powder coated white. Bottom of case to be self-trimming, with a built-in flange around the bottom of the case. To be complete with integrated low voltage control unit and three position control switch and cover plate.

Configurations
• Standard Black Drop
• Tensioned
• Case
• Standard white powder-coated aluminum finish; available in black upon request
• Convenient push button on end cap allows access to wiring
• Screen Drop
• Tensioned models standard with 12” (30.5 cm) of black drop
• Screen Control
• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
• Dry contact interface
• Projector trigger (5-12V)
• Screen Surfaces
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
• In tensioned models, TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Patent pending: 63/549,128 and 63/549,035

Tensioned Models: Screen fabric to be flame retardant and mildew resistant vinyl with black masking borders standard. Each side of the screen surface to have tab guide cable system to maintain even lateral tension and hold surface flat. Custom slat bar with added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy duty plastic caps enclosing a preset adjustable mechanism for screen tensioning.

Tensioned Models with Standard Drop
• All screens standard with 12" black drop at the top. Extra drop may alter case dimensions.
