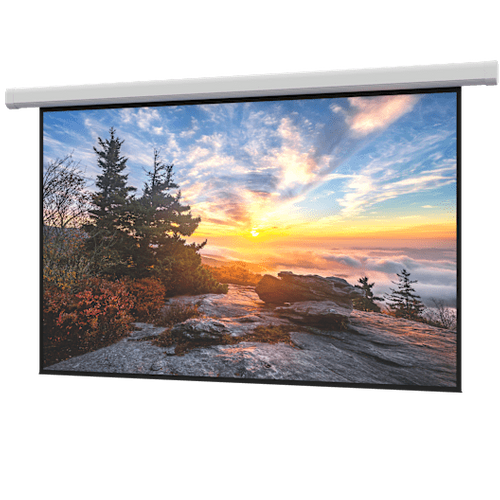

Da-Lite Myriad Reveal Projection Screen, 226 in Diag. 16:10, Matte White - DL100202L

This Myriad Reveal screen features a 226 in diagonal viewing surface and viewing size of 120 X 192 in. The 16:10 'Business Widescreen' format is great for conference rooms and houses of worship Features Matte White projection fabric

Matte White is a front projection screen surface designed for standard resolution. Suitable for lamp based projectors with standard throw lenses, its neutral white color provides everyday image quality and is available in sizes up to 16' high seamless. This economical surface is ideal for projects with large venue and basic projection needs and is GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality. Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.

Myriad Reveal

The wall and ceiling mounted screen features versatile and adjustable brackets – that accommodate either mounting preference.

Electrically operated 120 volt (60Hz) not more than 2.4 amp. Shall have specially designed motor mounted inside the roller, to be three wire with ground quick reversal type, oiled for life, with automatic thermal overload cut-out, integral gears, capacitor and an electric brake to prevent coasting. To have pre-set but adjustable limit switches to automatically stop picture surface in the “up” and “down” positions. Junction box shall be internally integrated into the housing. The junction box shall contain a quick connector that is mounted in the housing for easy plug-in connection to the motorized fabric and roller assembly. The fabric roller to be of rigid metal. Case to be a single-piece design made of extruded aluminum with a white, lightly textured powder coat finish. Bottom of case to have a removable access panel. Panel to be of extruded aluminum powder coated white. To be complete with integrated low voltage control unit and three position control switch and cover plate.

Configurations
• Standard Black Drop
• Non-Tensioned
• Case
• Standard white powder-coated aluminum finish; available in black upon request
• Convenient push button on end cap allows access to wiring
• Screen Drop
• Non-tensioned models standard with 2” (5 cm) of black drop
• Screen Control
• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
• Dry contact interface
• Projector trigger (5-12V)
• Screen Surfaces
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
• Smart integrated anchor points for roller suspension allows for easy maintenance
• Support includes a comprehensive five-year warranty to keep you confident in your purchase

Patent pending: 63/549,128 and 63/549,035

Non-Tensioned Models: Screen fabric to be flame retardant and mildew resistant fiberglass with black masking borders standard. Bottom of fabric shall be formed into a pocket holding a metal rod. Heavy duty vinyl caps shall protect the ends of the rod.

Non-Tensioned Models with Standard Drop:
• All screens standard with 2" black drop at the top.
• Matte White: Horizontal seam required when both dimensions exceed 10'.
• High Contrast Matte White: Available in sizes where both dimensions do not exceed 8'. Only available in the 193" diagonal HDTV format standard size.

• Product Data Sheet
