Countryman Isomax 2 All-Purpose

Please Note: Not all variations may be available to ship immediately. If you have an urgent need, please contact sales at 1-888-686-0551 or email sales@focusedtechnology.com with the model(s) and quantity you need.

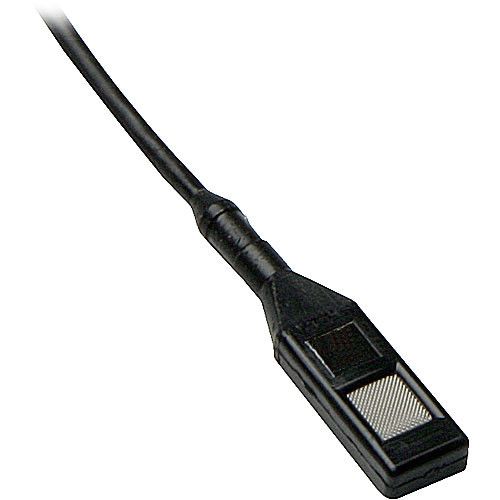

Countryman Associates Isomax 2 All-Purpose

Unlike other choir mics, Countryman's unique Isomax II-H hypercardiod mic is designed to pick up the whole choir evenly. That means the front row of singers doesn't overpower the back rows, and nobody sounds like a soloist simply because he or she is closest to the mic.

With our comprehensive guide to hanging the mics, you can eliminate unwanted noise from the audience, musicians, and monitor speakers. Best of all, the Isomax II-H's coverage pattern reduces the number of mics necessary to capture the whole choir.

You can fly these tiny, lightweight microphones almost invisibly from a thin wire spanning across the choir, rather than suspending bulky equipment from high ceilings. That makes our choir mics infinitely easier to replace, position and control - without the risk of equipment accidentally falling and injuring people below.

Supplied with windscreen, cable spool, stiffener for hanging and phantom-powered preamp.

Applications:

• Virtually invisible mics for choir, stage and audience

Performance:

• Unusually uniform pickup over entire choir or production
• Text book perfect cardioid and hypercardioid polar patterns for excellent stereo separation and rejection of unwanted sounds
• Precision directional patterns are uniform with frequency
• Excellent gain before feedback
• Handles high SPL

Style:

• Sleek, small, lightweight mic doesn't distract performers or house li> Easy to hang without scaffolding

Durability:

• Special 50' cable won't twist with temperature changes.

Frequently Asked Questions

Which pattern should I choose?
To get the best performance, know the angles where your microphone is most sensitive to sound, and which angles offer the best rejection of unwanted sounds.

• The omnidirectional pattern picks up all sounds from all directions equally. It has the flattest frequency response, the lowest noise level, and is the least susceptible to wind noise and vibration. The omnidirectional microphone is often used for recording and sound reinforcement of acoustic instruments such as percussion, guitar, saxophone, and piano.
• The cardioid pattern is most effective at picking up sound directly in front of the microphone, and is least sensitive to sound directly behind the microphone. Overall the cardioid picks up about 1/3 less ambient noise than the omnidirectional, so the working distance (the distance a performer could be positioned from the microphone) is approximately 1.7 times that of the omni. The cardioid is an excellent choice when you can position the microphone directly toward the sound you wish to record (a lead singer, for example) and directly away from unwanted sound sources (a crowd or loud monitor).
• The hypercardioid pattern has a narrower pick up pattern in front than the cardioid, and overall better rejection of ambient noise, and the working distance is about twice that of the omni. The hypercardioid has a small “pick-up lobe” directly behind the microphone. This means that the maximum rejection areas are behind and to the sides (about 60 degrees away from the rear of the microphone on either side). The hypercardioid is the best choice when the loudest unwanted sounds—like speakers—can be positioned in these nulls.

Frequency Response:
ISOMAX 2 O: 20 Hz to 20 kHz
ISOMAX 2 C, H: 50 Hz to 20 kHz

Overload Sound Level: 150 dB SPL @ 1% THD

Output Impedance: 600 Ohms +/- 2% balanced, transformerless. Will drive load impedance without distortion at full rated SPL.

Maximum Noise Level:
ISOMAX 2 O: 25 dB SPL A-weighted
ISOMAX 2 C, H: 29 dB SPL A-weighted

Power: Phantom, 6 to 50 Volts @ 4 mA. Voltages below 24V will result in reduced overload SPL.

Dimensions: 5/16” (8 mm) x 5/8” (16 mm) x 5/32” (4 mm) excluding cable strain bushing.

Sensitivity: -57 dB (0 dB = 1 V/Pascal. Open circuit)

ISOMAX 2 ALL PURPOSE

Connector Type Reference Chart
Transmitter Brand	Transmitter Model	Connector Type	Code
AKG	DPT800,DPT700,PT2000,PT40,PT400,PT4000,PT45,PT450,PT4500,PT470,PT60,PT61,PT80,PT81	TA3F	AK
AKG	PT300,PT500,PT51	B-LOC (locking male)	AG
Audio 2000's	Audio 2000's: AWX6030M; Sennheiser: SK 100 G1,SK 100 G2,SK 100 G3,SK 100 G4,SK 1093,SK 20,SK 300 G1,SK 300 G2,SK 300 G3, SK 300 G4,SK 500 G1,SK 500 G2,SK 500 G3,SK 500 G4,SK AVX,SK D1,SK-XSW,SL Bodypack DW,XSW-D TX35	3.5mm locking	SR
Audio Limited	RMS-2000-mxl,TX2000	Lemo 6 pin (FFA.2C.306)	AL
Audio Technica	AEW-T1000,AEW-T1000a,ATW-T1001,ATW-T35,ATW-T601,ATW-T701,ATW-T75,ESW-T211	Hirose 4 pin	AN
Audio Technica	ATW-3201	Hirose 4 pin screw-down cH-style	ATCH
Audio Technica	ATW-T101	TA5F	AW
Audio Technica	ATW-T1801,ATW-T201,ATW-T210,ATW-T210a,ATW-T27,ATW-T31,ATW-T310,ATW-T310b,ATW-T51	Hirose 4 pin	AT
Audio Technica	ATW-T5201	Hirose 4 pin screw-down cH-style	ANCH
Audix	B60	TA3F	AB
Azden	15BT,35BT	3.5mm non-locking mono	AZ
Azden	31LT,32BT,WLT-PRO,WM22,WM-PRO	3.5mm non-locking mono	ZP
Carvin	Carvin: UBP1000,UX16-BP,UXBP16; Shure: BLX1,FP1,PG1,SLX1,UC1,ULX1,UR1,UR1M; Trantec: S4.4-BTX,S5.3-BTX,S5.5-BTX; JTS: E-6TB,E-7TB(D),IN264TB,IN64TB,PG-36BG2,PT-850B,PT-850BD,PT900B,PT-920B,PT-920BG,PT-920BGmi,PT-920Bmi,PT-950,PT-950Bmi,RU-850LTB, RU-850TB,RU-988TB,RU-G3TB,UF-10TB,UF-20TB; Beyerdynamic: TG 1000 (gray switch),TG 100B (gray switch)	TA4F	SL
Comtek	M-216,M-72 (Switchcraft 851 connector)	Switchcraft 851	C2
Electrovoice	BP-300,BPU-2 (RE2 Bodypack),BPU-2Pro (RE2 Pro Bodypack),BPU-2Pro-REF (RE2 Pro Referee Bodypack),BPU-R,CSB-1000,NBPU,NBPU-G,WTU-2,RE3-BPT (RE3 Bodypack)	TA4F	ET
Electrovoice	MB2500,MSB	TA4F	EV
Happie Amp	Happie Amp: Happie Amp; Empower Sound: Amazing Amp	3.5mm locking	HA
Hardwired/XLR	Hardwired (high gain)	XLR3 Male	none (high gain)
Hardwired/XLR	Hardwired (standard gain)	XLR3 Male	none (standard gain)
Lectrosonics	DBa,DCHT (with MCTA6TA5M2),LMa,LMb,LT,PDR,SM,SMa,SMB,SMDa,SMDB,SMQ,SMQa,SMQV,SMV,SMWB,SMDWB,SPDR,UM400a,UM450	TA5F	SM
Lectrosonics	HM,UH200d,UH400,UH400a	A3M	LE
Lectrosonics	IM,LM,UM100,UM110,UM190,UM190b,UM195b,UM200,UM200b,UM200c,UM250b,UM250c,UM300b,UM400,UM500	TA5F	L4
Lectrosonics	M170,M170-BGO,M170-LS,M170-XLR (using 2.5mm jack),M175,M175-LS	Switchcraft 851	L2
Lectrosonics	M185,M187,UM700	TA5F	LS
Lectrosonics	MM200,MM400,MM400a,MM400b,MM400c	Waterproof 2.5mm	LW
Lectrosonics	UH100,UH110,UH190,UH195,UH200,UH200c	A3M	LX
Lectrosonics	WM	Waterproof 2.5mm	WM
Lectrosonics	Lectrosonics: SSM; Sennheiser: SK 2000	Lemo 3 pin	S2
Lightspeed	BP-200	Hirose 4 pin	LH
Line 6	TBP06	1/4in phono right angle	L3
Line 6	TBP12	TA4F	L7
MIPRO	ACT-707T (older),MT-103 (older),MT-303 (older),MT-801 (older),MT-808 (older)	Screw on mini 4 pin	MN
MIPRO	MIPRO: ACT-24T,ACT-24TC,ACT-30T,ACT-32T,ACT-32TC,ACT-50T,ACT-52T,ACT-52TC,ACT-58T,ACT-58TC,ACT-707-TS (TE),ACT-70T,ACT-70TC,ACT-7Ta,ACT-801 TS (TE),ACT-80T,ACT-80TC,ACT-8Ta,MT-103a,MT303,MT801,MT-801a,MT808; Beyerdynamic: Opus Series,TG 100 (before 2015),TG 1000 (before 2015),TS 100,TS 300,TS 500,TS 800,TS 900 C,TS 900 M,TS 910 C,TS 910 M; Peavey: PCX-U302-B,PCX-V12-B	Screw on TA4F	MI
Nady	UB10,UB16,WLT14,WLT15	3.5mm locking	NL
Pigtail Leads (W5)	Pigtail Leads (W5): Pigtail leads for 3 wire; Pigtail Leads (W4): Pigtail leads for 2 wire 2k ohm; Pigtail Leads (W3): Pigtail Leads for 2 wire 10k ohm	Stripped and tinned	NC
Revolabs	HD (Countryman Adaptor)	TA4F	RV
Sabine	ST50T,SW1600,SW16TX,SW3000,SW30TX	Screw on TA4F	SS
Sabine	SW16T,SW30T	Screw on mini 4 pin	SB
Sabine	SW70	TA4F	ST
Samson	AL-300,CT3,CT7,T32,UT1L,UB7,CB99,VT2L,VT3L	TA3F	SV
Samson	BT3,CT2,TX4 (gray),UT4	Hirose 6 pin	SA
Samson	TX3 (Black),UT5,UT6	Hirose 6 pin	SX
Senal	AWS-2000T	3.5mm locking	S4
Sennheiser	BF 1083	Lemo 1 pin	S1
Sennheiser	SK 2012	Microdot	SE
Sennheiser	SK 2020-D	3.5mm locking	S6
Shure	AD1,ADX1,AXT100TA4F,GLXD1,PGXD1,QLXD1,ULXD1	TA4F	AX
Shure	MXW1,MXW1/0=-Z11	TA4F	SW
Shure	Shure: AD1LEMO3,ADX1LEMO3,ADX1M,AXT100LEMO3,ULXD1LEMO3,UR1MLEMO3; Audio Limited: A10-TX,A10-TX-US; Sennheiser: SK 250,SK 3063,SK 50,SK 5012,SK 5212,SK 5212-II,SK 6000,SK 9000	Lemo 3 pin	S3
Sony	DWT-B01,DWT-G01,DWT-S01,DWT-V01	Hirose 4 pin (twist lock)	DS
Sony	UTX-B03,UTX-B1,UTX-B2,WRT-805A	3.5mm locking	SN
Sony	WRT-28,WRT-820A,WRT-860A,WRT-8B	Hirose 4 pin (twist lock)	SO
Sony	WRT-420,WRT-822B	Hirose 4 pin (twist lock)	SY
Sony	ZTX-B01,ZTX-B02RC	3.5mm locking	SF
Telex	LT100,PST16,VB12,WT10,WT1000,WT50,WT500,WT55,WT60,WT700,WT80	TA4F	TS
Telex	WT-200,WT-400,WT-450	Lemo 4 pin	TL
Toa	WM-370,WM-4310,WM-5320,WM-5325	3.5mm (Special Toa)	TO
Toa	WM-4300	TA4F	TA
Vega	BP2020,PRO-2,ST2020,T23,T25,T37,T93	TA4F	VS
WisyCom	MTP30,MTP40,MTP40S,MTP41,MTP41S	Lemo 3 pin	WY
Zaxcom	TRX900AA,TRX900LA,TRX900LT,TRX900LTH,TRX900LTHS,TRX900LTS,TRXFB3,TRXLA2,TRXLA3,TRXLT3,ZMT3	Lemo 3 pin	ZX
