Countryman H6 Directional Headset Microphone

Please Note: Not all variations may be available to ship immediately. If you have an urgent need, please contact sales at 1-888-686-0551 or email sales@focusedtechnology.com with the model(s) and quantity you need.

Countryman Associates H6 Directional Headset Microphone

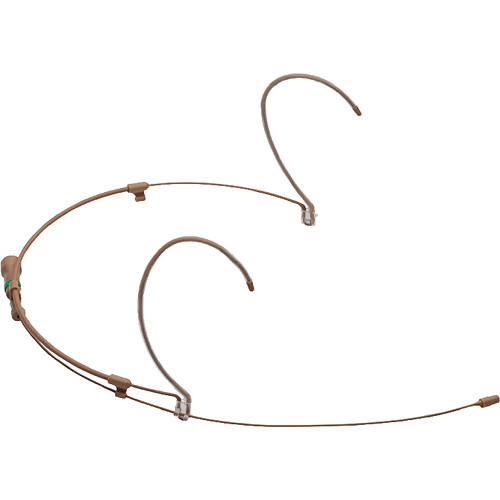

The H6 Directional Headset is the lowest profile uni-directional headset microphone in the world. Combining the exceptional isolation and natural sound quality of the E6D capsule on a lightweight, comfortable, and secure headframe design, the H6D is an ideal choice for acoustically challenging situations. The H6D features a new sealed connector with exceptional moisture resistance, a slim and nearly indestructable cable, polar pattern adjustment caps, and three sensitivity options.

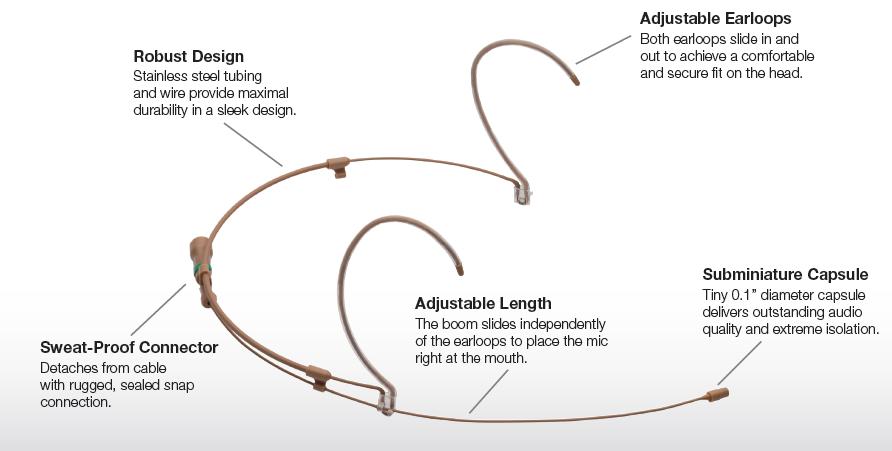

• Nearly Invisible: With a diameter of only 0.1” (2.5 mm), the world’s smallest uni-directional mic capsule virtually disappears when worn.


• Sweat-Resistant Connector: The mic detaches from the cable using a new connector with a tight seal against moisture (e.g., sweat).


• Extra-Rugged Cable: The 1.2 mm diameter cable uses Aramid strength members and engineered alloys for extreme tensile and flex strength.


• Easily Adjustable: The headframe can be adjusted to fit different head sizes and the mic boom slides to get the perfect fit.

"

H6D

Connector Type Reference Chart
Transmitter Brand	Transmitter Model	Connector Type	Code
(No Cable/Adaptor)	(No Cable/Adaptor)	(none)	MO
AKG	DPT800,DPT700,PT2000,PT40,PT400,PT4000,PT45,PT450,PT4500,PT470,PT60,PT61,PT80,PT81	TA3F	AK
AKG	PT300,PT500,PT51	B-LOC (locking male)	AG
Amplivox	S-1600T,S-1690T	3.5mm non-locking	AM
Anchor Audio	WB-6000,WB-6400,WB-8000	TA4F	AA
Audio 2000's	AWX6030M; Sennheiser: SK 100 G1,SK 100 G2,SK 100 G3,SK 100 G4,SK 1093,SK 20,SK 300 G1,SK 300 G2,SK 300 G3, SK 300 G4,SK 500 G1,SK 500 G2,SK 500 G3,SK 500 G4,SK AVX,SK D1,SK-XSW,SL Bodypack DW,XSW-D TX35; Gemini: UHF-6000BP	3.5mm locking	SR
Audio Limited	RMS-2000-mxl,TX2000	Lemo 6 pin (FFA.2C.306)	AL
Audio Technica	AEW-T1000,AEW-T1000a,ATW-T1001,ATW-T35,ATW-T601,ATW-T701,ATW-T75,ESW-T211	Hirose 4 pin	AN
Audio Technica	ATW-3201	Hirose 4 pin screw-down cH-style	ATCH
Audio Technica	ATW-T101	TA5F	AW
Audio Technica	ATW-T1801,ATW-T201,ATW-T210,ATW-T210a,ATW-T27,ATW-T31,ATW-T310,ATW-T310b,ATW-T51	Hirose 4 pin	AT
Audio Technica	ATW-T5201	Hirose 4 pin screw-down cH-style	ANCH
Audix	B60	TA3F	AB
Audix	RAD360-BP	TA3F	AD
Azden	10BT (older),41BT (older)	3.5mm locking	ZV
Azden	15BT,35BT	3.5mm non-locking mono	AZ
Azden	31LT,32BT,WLT-PRO,WM22,WM-PRO	3.5mm non-locking mono	ZP
Azden	41BT (UHF)	Hirose 4 pin (HR10A-7P-4P)	ZU
Beyerdynamic	TS 316,TS 400,TS 600	Lemo 4 pin (Type S)	BT
Beyerdynamic	TS-170,TS-170p,TS-190 (VHF),TSP	Lemo 4 pin (Type S)	BS
CAD Audio	WX155A	TA4F	CA
Carvin	UBP1000,UX16-BP,UXBP16; Shure: BLX1,FP1,PG1,SLX1,UC1,ULX1,UR1,UR1M; Trantec: S4.4-BTX,S5.3-BTX,S5.5-BTX; JTS: E-6TB,E-7TB(D),IN264TB,IN64TB,PG-36BG2,PT-850B,PT-850BD,PT900B,PT-920B,PT-920BG,PT-920BGmi,PT-920Bmi, PT-950,PT-950Bmi,RU-850LTB,RU-850TB,RU-988TB,RU-G3TB,UF-10TB,UF-20TB; Beyerdynamic: TG 1000 (gray switch),TG 100B (gray switch)	TA4F	SL
Comtek	M-216,M-72 (Switchcraft 851 connector)	Switchcraft 851	C2
Comtek	M-72 (3.5mm non-locking connector)	3.5mm non-locking	C3
Electrovoice	BP-300,BPU-2 (RE2 Bodypack),BPU-2Pro (RE2 Pro Bodypack),BPU-2Pro-REF (RE2 Pro Referee Bodypack),BPU-R,CSB-1000,NBPU,NBPU-G,WTU-2,RE3-BPT (RE3 Bodypack)	TA4F	ET
Electrovoice	MB2500,MSB	TA4F	EV
Fender	Passport	Screw on mini 4 pin	FN
Happie Amp	Happie Amp; Empower Sound: Amazing Amp	3.5mm locking	HA
Hardwired/XLR	Hardwired/XLR	XLR3 Male	XLR
HME	TX550,TX822	TA4F	HS
Lectrosonics	DBa,DCHT (with MCTA6TA5M2),LMa,LMb,LT,PDR,SM,SMa,SMB,SMDa,SMDB,SMQ,SMQa,SMQV,SMV,SMWB,SMDWB,SPDR,UM400a,UM450	TA5F	SM
Lectrosonics	HM,UH200d,UH400,UH400a	A3M	LE
Lectrosonics	IM,LM,UM100,UM110,UM190,UM190b,UM195b,UM200,UM200b,UM200c,UM250b,UM250c,UM300b,UM400,UM500	TA5F	L4
Lectrosonics	M170,M170-BGO,M170-LS,M170-XLR (using 2.5mm jack),M175,M175-LS	Switchcraft 851	L2
Lectrosonics	M185,M187,UM700	TA5F	LS
Lectrosonics	MM200,MM400,MM400a,MM400b,MM400c	Waterproof 2.5mm	LW
Lectrosonics	UH100,UH110,UH190,UH195,UH200,UH200c	A3M	LX
Lectrosonics	WM	Waterproof 2.5mm	WM
Lectrosonics	SSM; Sennheiser: SK 2000	Lemo 3 pin	S2
Lightspeed	BP-200	Hirose 4 pin	LH
Lightspeed	BP-700,BP-800	TA4F	LT
Line 6	TBP06	1/4in phono right angle	L3
Line 6	TBP12	TA4F	L7
Micron	TX 700.xx (negative ground)	Lemo 6 pin	M7
MIPRO	ACT-707T (older),MT-103 (older),MT-303 (older),MT-801 (older),MT-808 (older)	Screw on mini 4 pin	MN
MIPRO	ACT-24T,ACT-24TC,ACT-30T,ACT-32T,ACT-32TC,ACT-50T,ACT-52T,ACT-52TC,ACT-58T,ACT-58TC,ACT-707-TS (TE),ACT-70T,ACT-70TC,ACT-7Ta,ACT-801 TS (TE),ACT-80T,ACT-80TC,ACT-8Ta,MT-103a,MT303,MT801,MT-801a,MT808; Beyerdynamic: Opus Series,TG 100 (before 2015),TG 1000 (before 2015),TS 100,TS 300,TS 500,TS 800,TS 900 C,TS 900 M,TS 910 C,TS 910 M; Peavey: PCX-U302-B,PCX-V12-B	Screw on TA4F	MI
Nady	UB10,UB16,WLT14,WLT15	3.5mm locking	NL
Paso	MW223	TA4F	PA
Pigtail Leads	-	Stripped and tinned	NC
Revolabs	HD (Countryman Adaptor)	TA4F	RV
Sabine	ST50T,SW1600,SW16TX,SW3000,SW30TX	Screw on TA4F	SS
Sabine	SW16T,SW30T	Screw on mini 4 pin	SB
Sabine	SW70	TA4F	ST
Samson	Airline AL1	2.5mm Stereo	AS
Samson	AL-300,CT3,CT7,T32,UT1L,UB7,CB99,VT2L,VT3L	TA3F	SV
Samson	BT3,CT2,TX4 (gray),UT4	Hirose 6 pin	SA
Samson	TX3 (Black),UT5,UT6	Hirose 6 pin	SX
Senal	AWS-2000T	3.5mm locking	S4
Sennheiser	BF 1083	Lemo 1 pin	S1
Sennheiser	SK 2012	Microdot	SE
Sennheiser	SK 2020-D	3.5mm locking	S6
Shure	AD1,ADX1,AXT100TA4F,GLXD1,PGXD1,QLXD1,ULXD1	TA4F	AX
Shure	MXW1,MXW1/0=-Z11	TA4F	SW
Shure	Shure: AD1LEMO3,ADX1LEMO3,ADX1M,AXT100LEMO3,ULXD1LEMO3,UR1MLEMO3; Audio Limited: A10-TX,A10-TX-US; Sennheiser: SK 250,SK 3063,SK 50,SK 5012,SK 5212,SK 5212-II,SK 6000,SK 9000	Lemo 3 pin	S3
Sky	UT86P	3.5mm locking	SD
Sony	DWT-B01,DWT-G01,DWT-S01,DWT-V01	Hirose 4 pin (twist lock)	DS
Sony	UTX-B03,UTX-B1,UTX-B2,WRT-805A	3.5mm locking	SN
Sony	WRT-28,WRT-820A,WRT-860A,WRT-8B	Hirose 4 pin (twist lock)	SO
Sony	WRT-420,WRT-822B	Hirose 4 pin (twist lock)	SY
Sony	ZTX-B01,ZTX-B02RC	3.5mm locking	SF
Telex	LT100,PST16,VB12,WT10,WT1000,WT50,WT500,WT55,WT60,WT700,WT80	TA4F	TS
Telex	WT-200,WT-400,WT-450	Lemo 4 pin	TL
Toa	WM-370,WM-4310,WM-5320,WM-5325	3.5mm (Special Toa)	TO
Toa	WM-4300	TA4F	TA
Vega	77677	Lemo 4 pin	VL
Vega	BP2020,PRO-2,ST2020,T23,T25,T37,T93	TA4F	VS
WisyCom	MTP30,MTP40,MTP40S,MTP41,MTP41S	Lemo 3 pin	WY
Yamaha	Pocketrak C24,Pocketrak W24; Olympus: DM-420,DM-520,DM-620,DS-2400,DS-40,DS-51,DS-61,DS-71,LS-10,LS-14; Roland: R05 ,R09HR; Zoom: H1,H2,H2n; Sony: PCM-D50,PCM-M10; Tascam: DR-05,DR-07mkII,DR-08,PR-10	3.5mm locking	D2
Yamaha	Pocketrak C24,Pocketrak W24; Olympus: DM-420,DM-520,DM-620,DS-2400,DS-40,DS-51,DS-61,DS-71,LS-10,LS-14; Roland: R05 ,R09HR; Zoom: H1,H2,H2n; Sony: PCM-D50,PCM-M10; Tascam: DR-05,DR-07mkII,DR-08,PR-10	3.5mm locking	D3
Zaxcom	TRX900AA,TRX900LA,TRX900LT,TRX900LTH,TRX900LTHS,TRX900LTS,TRXFB3,TRXLA2,TRXLA3,TRXLT3,ZMT3	Lemo 3 pin	ZX

Frequency Response : 30 Hz to 15 kHz
Operating Current : 500 μA
Operating Voltage : 1 to 2 Volts
Power Supply Voltage :
+3V with 2.7 kOhm Load
+5V with 6.8 kOhm Load
+9V with 15 kOhm Load
Weight : 0.23 oz (6.5 grams)
Cable Break Strength : > 44 lbs (20 kg)


The H6D Headset is available in three sensitivities:

Model H6DW5 for general speaking
Sensitivity: 6.0 mV/Pascal
Equivalent Acoustic Noise: 24 dBA SPL
Overload Sound Level: 125 dB SPL


Model H6DW6 for loud speaking and vocals
Sensitivity: 1.9 mV/Pascal
Equivalent Acoustic Noise: 29 dBA SPL
Overload Sound Level: 135 dB SPL


Model H6DW7 for powerful vocals
Sensitivity: 0.60 mV/Pascal
Equivalent Acoustic Noise: 39 dBA SPL
Overload Sound Level: 145 dB SPL
