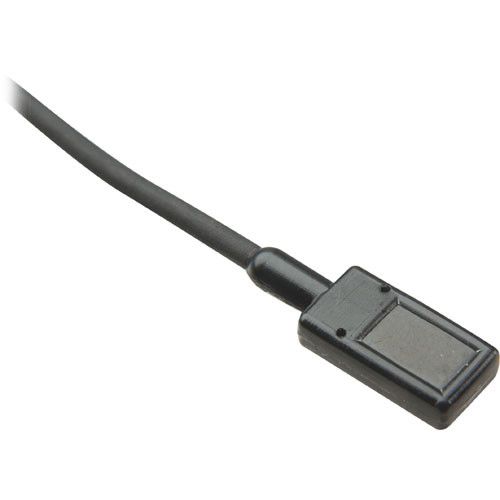

Countryman Associates EMW Omnidirectional Lavalier

A world-favorite lavalier, the EMW delivers excellent sound with minimal clothing noise, in a sleek, yet rugged, nearly waterproof design.

That's why the EMW lavalier has long been regarded as one of the best, most affordable workhorse lavaliers on the market, which no audio kit should be without. From news anchors and talk show guests to underwater documentaries and feature films, our EMW is truly in use everywhere you've never noticed!

Applications:

• Best mic for hiding under clothing in film, theater and TV production
• General purpose lavalier for churches, schools, interviews, news
• Immersability allows use near water or in intense weather

Performance:

• Very low rubbing noise.
• Outstanding sound quality
• Choice of frequency response. shelved for normal lav use, peaked for use behind clothing or flat for miking instruments.

Style:

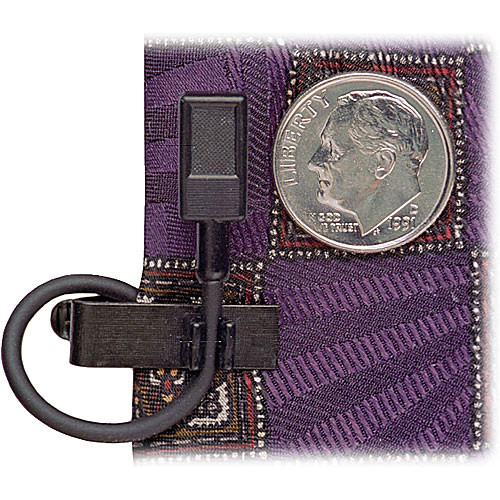

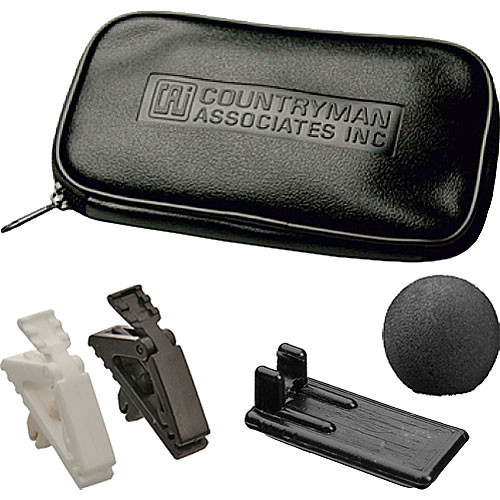

• Wide assortment of clips available - tie clip, double clip, magnetic clip, and viper clip.
• Small, sleek, classic lavalier shape
• Available in Black, White, Gray, Light Beige, and Cocoa.

Durability:

• Kevlar cable. li>Highly moisture resistant.

Frequently Asked Questions:

The EMW Lavalier is available in three frequency responses, all of which deliver audio quality with exceptional warmth and smoothness.

• “F” Response: the flattest possible curve for uncolored reproduction of audio sources such as musical instruments or room ambient sounds.
• “S” Response: provides a smooth 6 dB “shelved up” curve between 2 kHz and 15 kHz to compensate for lost facial reflections when the mic is used on the exterior of the body, as in the typical lapel or tie-clip position. This is the standard “lavalier” frequency response.
• “P” Response: provides a sharp 12 dB “peaked” curve at 12 kHz to preserve sibilance and intelligibility when the mic is hidden under clothing.

EMW

Connector Type Reference Chart
Transmitter Brand	Transmitter Model	Connector Type	Code
AKG	DPT800,DPT700,PT2000,PT40,PT400,PT4000,PT45,PT450,PT4500,PT470,PT60,PT61,PT80,PT81	TA3F	AK
AKG	PT300,PT500,PT51	B-LOC (locking male)	AG
Amplivox	S-1600T,S-1690T	3.5mm non-locking	AM
Anchor Audio	WB-6000,WB-6400,WB-8000	TA4F	AA
Audio 2000's	Audio 2000's: AWX6030M; Sennheiser: SK 100 G1,SK 100 G2,SK 100 G3,SK 100 G4,SK 1093,SK 20,SK 300 G1,SK 300 G2,SK 300 G3, SK 300 G4,SK 500 G1,SK 500 G2,SK 500 G3,SK 500 G4,SK AVX,SK D1,SK-XSW,SL Bodypack DW,XSW-D TX35	3.5mm locking	SR
Audio Limited	RMS-2000-mxl,TX2000	Lemo 6 pin (FFA.2C.306)	AL
Audio Technica	AEW-T1000,AEW-T1000a,ATW-T1001,ATW-T35,ATW-T601,ATW-T701,ATW-T75,ESW-T211	Hirose 4 pin	AN
Audio Technica	ATW-3201	Hirose 4 pin screw-down cH-style	ATCH
Audio Technica	ATW-T101	TA5F	AW
Audio Technica	ATW-T1801,ATW-T201,ATW-T210,ATW-T210a,ATW-T27,ATW-T31,ATW-T310,ATW-T310b,ATW-T51	Hirose 4 pin	AT
Audio Technica	ATW-T5201	Hirose 4 pin screw-down cH-style	ANCH
Audix	B60	TA3F	AB
Audix	RAD360-BP	TA3F	AD
Azden	10BT (older),41BT (older)	3.5mm locking	ZV
Azden	15BT,35BT	3.5mm non-locking mono	AZ
Azden	31LT,32BT,WLT-PRO,WM22,WM-PRO	3.5mm non-locking mono	ZP
Azden	41BT (UHF)	Hirose 4 pin (HR10A-7P-4P)	ZU
Beyerdynamic	TS 316,TS 400,TS 600	Lemo 4 pin (Type S)	BT
Beyerdynamic	TS-170,TS-170p,TS-190 (VHF),TSP	Lemo 4 pin (Type S)	BS
CAD Audio	WX155A	TA4F	CA
Carvin	Carvin: UBP1000,UX16-BP,UXBP16; Shure: BLX1,FP1,PG1,SLX1,UC1,ULX1,UR1,UR1M; Trantec: S4.4-BTX,S5.3-BTX,S5.5-BTX; JTS: E-6TB,E-7TB(D),IN264TB,IN64TB,PG-36BG2,PT-850B,PT-850BD,PT900B,PT-920B,PT-920BG,PT-920BGmi,PT-920Bmi,PT-950,PT-950Bmi,RU-850LTB, RU-850TB,RU-988TB,RU-G3TB,UF-10TB,UF-20TB; Beyerdynamic: TG 1000 (gray switch),TG 100B (gray switch)	TA4F	SL
Comtek	M-216,M-72 (Switchcraft 851 connector)	Switchcraft 851	C2
Comtek	M-72 (3.5mm non-locking connector)	3.5mm non-locking	C3
Electrovoice	BP-300,BPU-2 (RE2 Bodypack),BPU-2Pro (RE2 Pro Bodypack),BPU-2Pro-REF (RE2 Pro Referee Bodypack),BPU-R,CSB-1000,NBPU,NBPU-G,WTU-2,RE3-BPT (RE3 Bodypack)	TA4F	ET
Electrovoice	MB2500,MSB	TA4F	EV
Fender	Passport	Screw on mini 4 pin	FN
Happie Amp	Happie Amp: Happie Amp; Empower Sound: Amazing Amp	3.5mm locking	HA
Hardwired/XLR	Hardwired/XLR	XLR3 Male	none
HME	TX550,TX822	TA4F	HS
Lectrosonics	DBa,DCHT (with MCTA6TA5M2),LMa,LMb,LT,PDR,SM,SMa,SMB,SMDa,SMDB,SMQ,SMQa,SMQV,SMV,SMWB,SMDWB,SPDR,UM400a,UM450	TA5F	SM
Lectrosonics	HM,UH200d,UH400,UH400a	A3M	LE
Lectrosonics	IM,LM,UM100,UM110,UM190,UM190b,UM195b,UM200,UM200b,UM200c,UM250b,UM250c,UM300b,UM400,UM500	TA5F	L4
Lectrosonics	M170,M170-BGO,M170-LS,M170-XLR (using 2.5mm jack),M175,M175-LS	Switchcraft 851	L2
Lectrosonics	M185,M187,UM700	TA5F	LS
Lectrosonics	MM200,MM400,MM400a,MM400b,MM400c	Waterproof 2.5mm	LW
Lectrosonics	UH100,UH110,UH190,UH195,UH200,UH200c	A3M	LX
Lectrosonics	WM	Waterproof 2.5mm	WM
Lectrosonics	Lectrosonics: SSM; Sennheiser: SK 2000	Lemo 3 pin	S2
Lightspeed	BP-200	Hirose 4 pin	LH
Lightspeed	BP-700,BP-800	TA4F	LT
Line 6	TBP06	1/4in phono right angle	L3
Line 6	TBP12	TA4F	L7
Micron	TX 700.xx (negative ground)	Lemo 6 pin	M7
MIPRO	ACT-707T (older),MT-103 (older),MT-303 (older),MT-801 (older),MT-808 (older)	Screw on mini 4 pin	MN
MIPRO	MIPRO: ACT-24T,ACT-24TC,ACT-30T,ACT-32T,ACT-32TC,ACT-50T,ACT-52T,ACT-52TC,ACT-58T,ACT-58TC,ACT-707-TS (TE),ACT-70T,ACT-70TC,ACT-7Ta,ACT-801 TS (TE),ACT-80T,ACT-80TC,ACT-8Ta,MT-103a,MT303,MT801,MT-801a,MT808; Beyerdynamic: Opus Series,TG 100 (before 2015),TG 1000 (before 2015),TS 100,TS 300,TS 500,TS 800,TS 900 C,TS 900 M,TS 910 C,TS 910 M; Peavey: PCX-U302-B,PCX-V12-B	Screw on TA4F	MI
Nady	UB10,UB16,WLT14,WLT15	3.5mm locking	NL
Paso	MW223	TA4F	PA
Pigtail Leads (W3)	Pigtail Leads for 2 wire 10k ohm	Stripped and tinned	NC
Revolabs	HD (Countryman Adaptor)	TA4F	RV
Sabine	ST50T,SW1600,SW16TX,SW3000,SW30TX	Screw on TA4F	SS
Sabine	SW16T,SW30T	Screw on mini 4 pin	SB
Sabine	SW70	TA4F	ST
Samson	Airline AL1	2.5mm Stereo	AS
Samson	AL-300,CT3,CT7,T32,UT1L,UB7,CB99,VT2L,VT3L	TA3F	SV
Samson	BT3,CT2,TX4 (gray),UT4	Hirose 6 pin	SA
Samson	TX3 (Black),UT5,UT6	Hirose 6 pin	SX
Senal	AWS-2000T	3.5mm locking	S4
Sennheiser	BF 1083	Lemo 1 pin	S1
Sennheiser	SK 2012	Microdot	SE
Sennheiser	SK 2020-D	3.5mm locking	S6
Shure	AD1,ADX1,AXT100TA4F,GLXD1,PGXD1,QLXD1,ULXD1	TA4F	AX
Shure	MXW1,MXW1/0=-Z11	TA4F	SW
Shure	Shure: AD1LEMO3,ADX1LEMO3,ADX1M,AXT100LEMO3,ULXD1LEMO3,UR1MLEMO3; Audio Limited: A10-TX,A10-TX-US; Sennheiser: SK 250,SK 3063,SK 50,SK 5012,SK 5212,SK 5212-II,SK 6000,SK 9000	Lemo 3 pin	S3
Sky	UT86P	3.5mm locking	SD
Sony	DWT-B01,DWT-G01,DWT-S01,DWT-V01	Hirose 4 pin (twist lock)	DS
Sony	UTX-B03,UTX-B1,UTX-B2,WRT-805A	3.5mm locking	SN
Sony	WRT-28,WRT-820A,WRT-860A,WRT-8B	Hirose 4 pin (twist lock)	SO
Sony	WRT-420,WRT-822B	Hirose 4 pin (twist lock)	SY
Sony	ZTX-B01,ZTX-B02RC	3.5mm locking	SF
Telex	LT100,PST16,VB12,WT10,WT1000,WT50,WT500,WT55,WT60,WT700,WT80	TA4F	TS
Telex	WT-200,WT-400,WT-450	Lemo 4 pin	TL
Toa	WM-370,WM-4310,WM-5320,WM-5325	3.5mm (Special Toa)	TO
Toa	WM-4300	TA4F	TA
Vega	77677	Lemo 4 pin	VL
Vega	BP2020,PRO-2,ST2020,T23,T25,T37,T93	TA4F	VS
WisyCom	MTP30,MTP40,MTP40S,MTP41,MTP41S	Lemo 3 pin	WY
Yamaha	Yamaha: Pocketrak C24,Pocketrak W24; Olympus: DM-420,DM-520,DM-620,DS-2400,DS-40,DS-51,DS-61,DS-71,LS-10,LS-14; Roland: R05 ,R09HR; Zoom: H1,H2,H2n; Sony: PCM-D50,PCM-M10; Tascam: DR-05,DR-07mkII,DR-08,PR-10	3.5mm locking	D2
Yamaha	Yamaha: Pocketrak C24,Pocketrak W24; Olympus: DM-420,DM-520,DM-620,DS-2400,DS-40,DS-51,DS-61,DS-71,LS-10,LS-14; Roland: R05 ,R09HR; Zoom: H1,H2,H2n; Sony: PCM-D50,PCM-M10; Tascam: DR-05,DR-07mkII,DR-08,PR-10	3.5mm locking	D3
Zaxcom	TRX900AA,TRX900LA,TRX900LT,TRX900LTH,TRX900LTHS,TRX900LTS,TRXFB3,TRXLA2,TRXLA3,TRXLT3,ZMT3	Lemo 3 pin	ZX

Frequency Response :
20 Hz to 20 kHz

Sensitivity:
-40 dB re. 1 V/Pascal

Equivalent Acoustic Noise:
24 dBA SPL

Output Impedance
600 Ohms balanced for wired operation
1500 Ohms unbalanced for wireless

Overload Sound Level:
130 dB SPL @ 1% THD on 48 V Phantom
(dependant on transmitter for wireless)

Power Requirements :
Phantom: 6 to 50 Volts @ 4 mA
Wireless: 1.5 to 24 Volts 400 uA
