Countryman E6i Omindirectional Earset
Countryman E6i Omindirectional Earset

Countryman E6i Omindirectional Earset

Part Number: E6i
Our Price: $312.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Please Note: Not all variations may be available to ship immediately. If you have an urgent need, please contact sales at 1-888-686-0551 or email sales@focusedtechnology.com with the model(s) and quantity you need.

Countryman Associates E6i Omindirectional Earset



Delivering value, comfort, and sound quality, our E6i Omnidirectional Earset microphone is the best-loved mic of its kind.

We've mounted our tiniest mic capsule on an even tinier boom that is rugged, flexible, and incredibly lightweight. Silicon padding at the earpiece helps keep the boom comfortably in place, even with glasses or other head-worn accessories. We offer the widest range of boom colors to match virtually any skin tone. The more-flexible boom on the E6i is very easy to adjust and perfect when one mic is shared among several people.

Practically invisible to live or broadcast audiences, the E6i is incredibly comfortable for the wearer. It captures the closest source clearly with excellent rejection of wind, ambient noise, and feedback. And its industry-unique snap-on cable extends the equipment life many times over. In addition, the snap-on cable makes your E6i compatible with virtually any wireless mic system - just buy a new cable instead of a new mic!

The changeable protective caps provide moisture resistance and let you shape the frequency response for different situations or to match other microphones.

It's no surprise that Countryman's E6i Omni Earset is a top choice for presenters, educators, worship leaders and pastors, broadcasters, and many, many more!

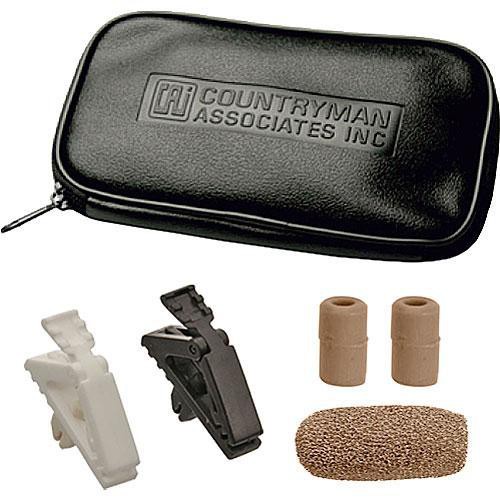

The E6i Omni microphone is supplied with a snap-on cable with specified connector, windscreen, set of three protective caps, set of two collar clips (black and white), and carrying case.

Frequently Asked Questions:

When should I choose a directional Earset?

Only Countryman Earsets offer omni and directional versions, giving the user some exceptional advantages. The omni Earset rejects unwanted sound and feedback better than a lavalier almost any way you wear it, so itís very user-friendly for new and experienced users alike. Itís ideal for anyone working with a PA system covering a room without stage monitors. For situations where there are loud monitors, extreme feedback or environmental noise, choose the Countryman directional Earset (marked with a green band). Itís much smaller and less obtrusive compared to anything else on the market. For more information on directional earsets, see your dealer or download a copy from our web site. Or simply call us if you have a question.

What is the difference between the E6 and the E6i?

The classic E6 is recommended when one person wears the microphone. Because it is stiffer and holds its shape well, it can be adjusted to fit the userís face, stored away, and quickly unpacked and worn with a minimum of fuss. The E6i adds a soft, highly-flexible boom and a larger silicone rubber ear piece. When multiple users share a mic, the E6i is a great choice. The soft boom is fantastically durable and the extreme flexibility makes changing users a breeze.

How do I choose the right color for my skin tone?

Tan is the most popular color choice, because it works perfectly for average Caucasian skin tones, as well as olive complexions. Light beige works well in theatrical applications due to its slightly pink undertone, which is also appropriate for extremely fair skin. Cocoa is the ideal choice for African American skin tones ranging from very light to chocolate, and black is appropriate for extremely dark skin, or for situations where you want the mic to be visible. When in doubt, choose the darker option. Thatís because a mic thatís too light can resemble a scar or blemish, while a mic thatís slightly darker than the background tends to blend much better and draws less attention.

Which sensitivity should I choose?

Making a microphone more sensitive to catch soft sounds means it will overload sooner for loud sounds. Because sound pressure levels vary between individuals and applications, we provide three sensitivities with three overload or clipping characteristics.
  • The most sensitive (W5, no band) is for general speaking, such as presentations or sermons
  • The middle sensitivity (W6, blue band) is for vocals and loud speaking, such as in theater
  • The most powerful vocals require the least sensitive mic (W7, purple band) with the highest overload sound level




Specifications

Frequency Response : 20 Hz to 20 kHz
Operating Current : 500 μA
Operating Voltage : 1 to 2 Volts
Power Supply Voltage :
+3V with 2.7 kOhm Load
+5V with 6.8 kOhm Load
+9V with 15 kOhm Load
Weight : .07 oz (2 grams)

The E6i Earset is available in three sensitivities:

Model E6iOW5 for general speaking
Sensitivity: 7.0 mV/Pascal
Equivalent Acoustic Noise: 24 dBA SPL
Overload Sound Level: 120 dB SPL

Model E6iOW6 for loud speaking and vocals
Sensitivity: 2.0 mV/Pascal
Equivalent Acoustic Noise: 29 dBA SPL
Overload Sound Level: 130 dB SPL

Model E6iOW7 for powerful vocals
Sensitivity: 0.70 mV/Pascal
Equivalent Acoustic Noise: 39 dBA SPL
Overload Sound Level: 140 dB SPL

Connector Type Reference Chart
Transmitter Brand
Transmitter Model
Connector Type
Code
(Earset only)No Cable(Earset only)MO
(Hardwired)Phantom PowerXLR3 Male(no code)
(Pigtail leads)Stripped and tinnedFor 2 wire 10k ohmNC
AKGPT51, PT300, PT900B-LOC (locking male)AG
AKGPT40, PT60, PT61, PT80, PT81, PT400, PT2000, PT4000Switchcraft TA3FAK
Audio LimitedTX2000, RMS-2000-mxlLemo 6 pinAL
Audio TechnicaT35, T75, T211, T601, T701, T1000, T1200, T4000, T5000, T7000Hirose 4 pin AN
Audio TechnicaT27, T31, T51, T200, T210, T300, T310, T1400, T2000, T3000Hirose 4 pin AT
Audio TechnicaATW-U101Switchcraft TA5FAW
AzdenWM-PRO, WLT-PRO, 32BT, WM22, 31LTNon locking 3.5 mm ZP
BeyerOpus Series TS-100, TS-300, TS-500, TS-800Screw on TA4FMI
Electrovoice300, N\DYM, NBPU, MSB, BPV, BPU, BPU2, CSB-1000, RE-1, RE-2Switchcraft TA4FET
Electrovoice2000, 2500 seriesSwitchcraft TA4FEV
LectrosonicsM170, 175Switchcraft 851L2
LectrosonicsUM Series, LM SeriesSwitchcraft TA5FL4
LectrosonicsH SeriesSwitchcraft A3MLE
LectrosonicsM Series over 185Switchcraft TA5FLS
LectrosonicsMM400Water Proof 2.5mmLW
LectrosonicsUH SeriesSwitchcraft A3MLX
LectrosonicsSM Series, UMa Series, LMa SeriesSwitchcraft TA5FSM
LightspeedBP-200Push lock type 4 pinLH
MiproACT707TS(TE), ACT801TS(TE), MT103, MT303, MT801, MT808Screw on TA4FMI
MiproACT707, MT801Screw on mini 4 pinMN
MiproACT707, MT801Screw on mini 4 pinMN
NadyUB10, UB16, WLT14, WLT153.5 mm locking plugNL
RevolabsHDSwitchcraft TA4FRV
SabineSW16T, SW30TScrew on mini 4 pinSB
SabineSW16TX, SW30TX (1600, 3000), ST50TScrew on TA4FSS
SabineSW70Switchcraft TA4FST
SamsonAirline AL-12.5mm stereoAS
SamsonCT3, VT2L, UT1L, T32Switchcraft TA3FSV
SamsonUT5, TX3 (Black), UT6Hirose 6 pinSX
SennheiserBF1083Lemo 1 pinS1
SennheiserSK2000Lemo 3 pinS2
SennheiserSK-50, SK250, SK3063, SK5012Lemo 3 pinS3
SennheiserSK2012 MicrodotSE
SennheiserEvolution Series, EW100, EW300, EW500, G2, G3, SK 10933.5 mm locking plugSR
ShureAxient AXT-100Switchcraft TA4FAX
ShureAll with Lemo 3 pinLemo 3 pinS3
ShureFP1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, BLX1Switchcraft TA4FSL
SonyDWT-B01Hirose 4 pin (twist lock)DS
SonyWRT-805, 806, UTX-B1, UWP8063.5 mm locking plugSN
SonyWRT-28, 820, 860Hirose 4 pin (twist lock)SO
SonyWRT-822, WRT-420, WRT-8BHirose 4 pin (twist lock)SY
TelexWT 200, 400, 450Lemo 4 pinTL
TelexAll with TA4F connectorSwitchcraft TA4FTS
ToaWM4300Switchcraft TA4FTA
ToaWM370, WM4310Toa special 3.5 mmTO
VegaT23, T25, T37, T93, PRO-2, BP2020, ST2020Switchcraft TA4FVS
ZaxcomTRX900, TRX900AALemo 3 pinZX
