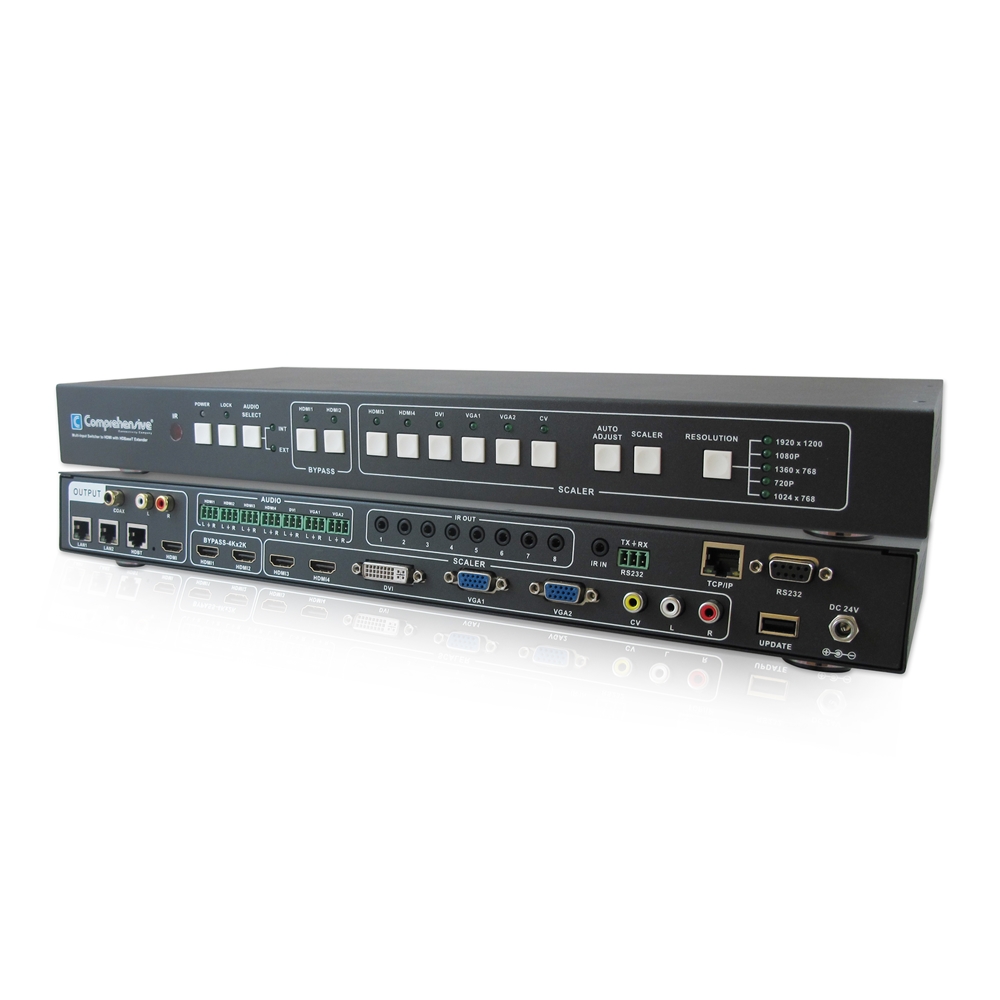

Comprehensive Multi-Input Switcher to HDMI with HDBaseT up to 330ft - Transmitter & Receiver - CSW-HDBT300M

Comprehensive’s CSW-HDBT300M Multi-Input Switcher to HDMI with HDBaseT up to 330ft can scale all of your inputs. It accepts one of eight inputs: one DVI, two VGA, one composite video and four HDMI signals. The HDMI1, HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz, and HDMI3, HDMI4, DVI,VGA1, VGA2, CV scales the video, supports output resolutions up to 1920x1080P@60Hz. It scales the video, embeds the audio, and simultaneously outputs the signal to HDMI and HDBaseT output, HDBaseT output transmission distances up to 330ft through CAT6/7 cable, together with S/PDIF and stereo audio outputs. Flexible control mode diversity, through the front panel button, remote control, RS-232 and TCP/IP control.

• Scales and transmits distances up to 330 feet through CAT6/7 cable
• Compliant HDMI 1.4 and HDCP 1.3
• Supports resolutions up to 4Kx2K@30Hz
• Supports input resolutions from 2x HDMI, 1x DVI,2x VGA,1x CV
• Supports POE function
• Supports embeds the audio
• Supports S/PDIF and stereo audio outputs
• Supports smart EDID management

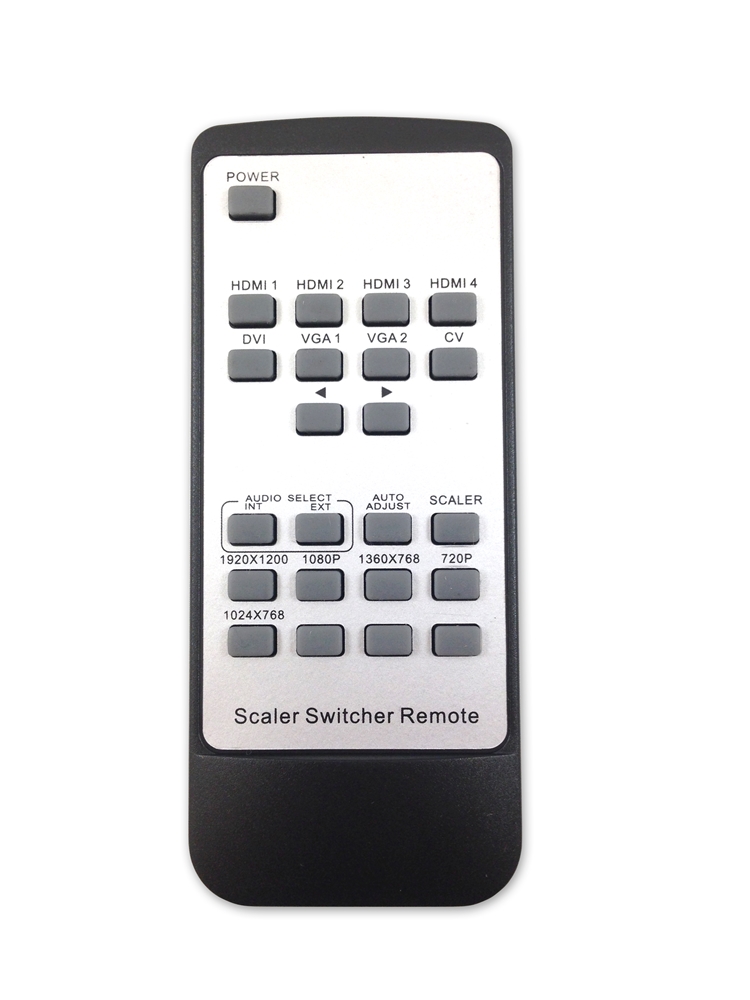

• Supports RS-232, remote control, on-panel control and TCP/IP Control
• 2 Year Warranty

• Deep Color support 48/36/30/24-bit
• Input Ports: 4xHDMI,1xDVI,2xVGA,1xRCA ,1xRS-232,1xRJ-45(Control),1x IR IN, 7x3P captive screw connector(3.81mm),1xUSB
• Output Ports: 1xHDMI,2xRJ-45(LAN), 2xRCA, 1xRJ-45(HDBaseT),8x IR OUT
• Input Resolutions: 4Kx2K@30Hz
• Output Resolutions: Up to 4Kx2K@30Hz(HDMI Bypass), Up to 1920x1080P@60Hz(Scaler)
• Control: IR , RS-232 , TCP/TP , Front-Panel Buttons
• Power Supply: DC 24V 1A (US/EU standards, CE/FCC/UL certified)
• ESD Protection: ± 8kV (air-gap discharge) Human Body Model: ± 4kV (contact discharge)
• Dimensions: 17.5" (440mm)(W) X 8" (200mm) (D) X 1.75" (44.5mm) (H)
• Weight: 5 lbs.
• Power Consumption (Max): 14.5W
• Warranty: 2 Years
