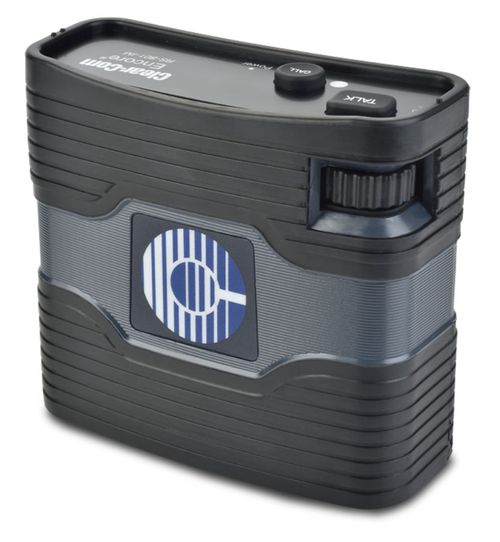

Clear-Com Single-Channel Beltpack with XLR-3 Connector - RS-801-IM

Clear-Com Single-Channel Beltpack with XLR-3 Connector - RS-801-IM

Part Number: RS-801-IM
Our Price: $490.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Single-Channel Beltpack with XLR-3 Connector

  • IP-53 environmental rating for weather-proofing
  • Sealed for salt-mist and humidity
  • Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
  • Marine Certification compliant with DNVGL-CG-0339 (2016)
  • XLR-3 line connectors for two-channel + Program Audio
  • Consealed, programmable DIP Switches
  • Low operating current for more beltpack daisy-chaining
  • Rugged and strong construction
  • "Clear-Com Sound" for intelligible audio

Specifications

Microphone Pre-Amplifier
  • Mic to Line (without limiter acting)
  • Frequency Response: 280 – 15k Hz ± 3dB
  • Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
  • Microphone output to line – Distortion: <0.1%
  • Microphone output to line – Signal to Noise: >65dB
Headphone Pre-Amplifier
  • Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
  • Headphone input from line – Audio Level (-9dBm Electret input): 3.5dBm
  • Headphone input from line – Distortion: <0.5%
  • Headphone input from line – Signal to Noise: >50dB
  • Earphone to Mic – Crosstalk: >80dB
  • Sidetone – Adjustment Range (-80db mic input): >45dB
Keypad Indicators
  • Power: Green LED
  • Talk: Green LED
  • Call: Orange LED
Connectors
  • Intercom Line: (2) 3-pin XLR–M–F
  • Ch. 1 2-Wire
Intercom Channel
  • Pin 1: Common
  • Pin 2: PL Power (+28VDC)
  • Pin 3: Line (Audio)
  • Headset: 4-pin XLR–M
Headset Connector
  • Pin 1: Mic – (Mic Common)
  • Pin 2: Mic +
  • Pin 3: Spkr-
  • Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Power Requirements
  • Input Voltage Range: 12-30 VDC
  • Input Current (Idle): <=12mA
  • Input Current (Max): <=28mA
Call Voltage
  • 16.5 VDC
  • Minimum Voltage Needed: 3.3V
Environmental
  • 32?F – 140?F (0?C – 60?C)
  • Relative Humidity: 0 – 96%, non-condensing
  • Vibration Frequency Range: 2 – 13.2 Hz,
  • Amplitude: 1.0 mm
  • Peak Value Frequency Range: 13.2 – 100 Hz,
  • Acceleration Amplitude: 0.7 g
  • EMC: DNVGL-CG-0339 – Class A
  • Enclosure: Salt-mist IP-53
Dimensions
  • 3.4 x 4.5 x 1.7 in (HxWxD)
  • (86 x 114 x 43 mm)
Weight
  • 10.5 oz (0.30 kg)
Certifications and Compliance
  • This device complies with part 15 of the FCC Rules
  • This device complies with European Union CE Mark
  • This device complies with Maritime Certification
