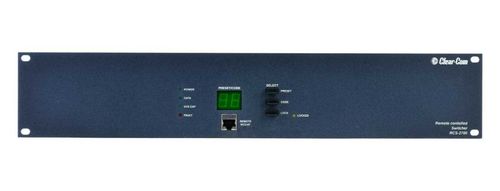

Clear-Com 8-Source x 24-Destination Programmable Assignment Panel - RCS-2700

8-Source x 24-Destination Programmable Assignment Panel

• Expandable up to 15 sources x 72 destinations
• Stores 14 presets in non-volatile memory
• Multiple systems can be controlled from the same PC
• Latching relays keep current draw extremely low
• TW compatible
• Front panel security lockout
• Easy-to-wire Euro-terminal blocks for rear panel connections
• External contact closure input for remote preset selection

• Partyline Intercom: 20 – 20KHz (passive switching)

• <-70 dB

• Port-Port: 20Hz – 20KHz

• Input Voltage: 27-33 VDC
• Input Current (max)p; <= 80mA

• 3.5 x 19 x 10.75 in (HxWxD)
• (89 x 483 x 273 mm)

• Single frame, 1×2, 2×1, 2×2, 1×3, 2×3

• Pentium I or better 16 MB RAM, 12 MB Hard Disk Space Monitor: 800 X 600 Minimum Resolution

• Baud rate: 19.2 Kbps
• Start Bits: 1 start bit
• Stop Bits: 1 stop bit
• Parity: no parity

• Switching Current: <=2A

• Sources Source expansions Source power Destinations Destination power RCS power Source 8 continuation Data links Matrix/contact closure

• 32? to 122? F (0? to 50? C)

• 5.5 lbs. (2.5 kg)
