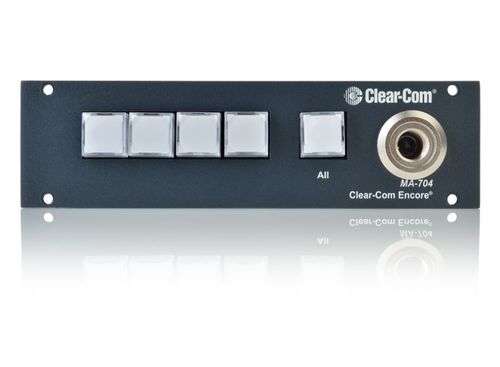

Clear-Com Program Interrupt and IFB Master Control and Access Station - MA-704

Program Interrupt and IFB Master Control and Access Station

• Four Talent channels
• All IFB button simultaneously access all Talent channels
• Tally lights indicate IFB channels in use
• Optional rack mount kit for up to 12 talent access buttons in a 1RU
• Powered by the intercom line

• Input Type: Electret
• Input Impedance: >=2K?
• Mic Limiter Threshold: 0dB ± 3dB
• Mic Limiter Range: >= 15dB

• Panel Mic – Talent: 200 – 18KHz ± 3dB
• Extension Line – Talent: 200 – 18KHz ± 3dB

• Panel Mic – Talent: <= 0.5%
• Extension Line – Talent: <= 0.1%

• Panel Mic – Talent: < -65dBu
• Extension Line – Talent: < -85dBu

• Panel Mic – Talent: <= 40dB
• Program Input – Talent: <= -45dB

• Input Voltage Range: 20-30 VDC
• Input Current (Idle):<= 140mA
• Input Current (Max):<= 180mA

• 32?F – +122?F (0?C – +50?C)

• 1.75 x6.3 x 5.5 in (HxWxD)
• (44 x 160 x 140 mm)

• 1.71lbs (0.78 kg)
