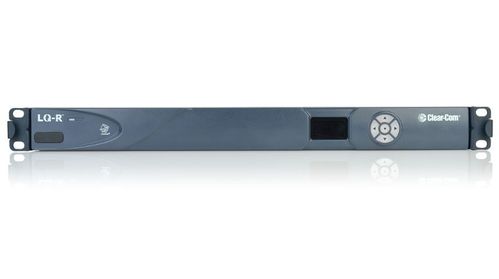

Clear-Com 8-Port 1RU Panel for 4-wire Interfacing - LQ-R4W8

Clear-Com 8-Port 1RU Panel for 4-wire Interfacing - LQ-R4W8

Part Number: LQ-R4W8
Our Price: $4,790.00
Availability: Usually ships the same business day

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Specifications
Accessories
Reviews

8-Port 1RU Panel for 4-wire Interfacing

  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • 2-wire powering, termination and auto-nulling
  • 4-wire ports support data and audio for Clear-Com Eclipse HX and Drake 4000 panels
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis
  • Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire Audio I/O: EtherCON/RJ45 (female)
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing


Audio
  • Resolution: 12 bit
  • Sample Rate: 24KHz
  • Frequency Response: 100 12KHz
  • CODEC: OPUS
4-Wire Audio
  • Input Gain: -12dB to +12dB
  • Output Gain: -12dB to +12dB
Network
  • Bit Rates: 16, 32, 48, 64, 128Kbps
  • Packet Size: 5, 10, 20, 40, 60ms
  • Jitter Buffers: 0 1000ms
Connectors
  • Network/LAN: EtherCON/RJ45 (female)
  • 4-wire Audio I/O: EtherCON/RJ45 (female)
Power Supply
  • In-line supply with sleeve locking connector
  • Input: 100-240V, 50-60Hz, 1.4A MAX
  • Output: DC 12V, 5A, 60W MAX
Environmental
  • Operating Temperature: +32°F +104°F (0°C +40°C)
  • Storage Temperature: -67°F +158°F (-55°C +70°C)
  • Humidity: 90%, non-condensing
Dimensions
  • 19in W x 1.79in H x 8.8in D
  • (483mm x 46mm x 224mm)
Weight
  • 4.29lbs (1.95kg)
