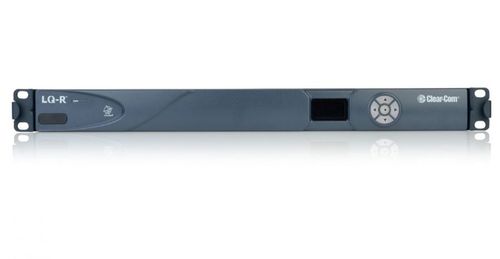

Clear-Com 4-Port 1RU Panel for 2-Wire Interfacing - LQ-R2W4

Clear-Com 4-Port 1RU Panel for 2-Wire Interfacing - LQ-R2W4

Part Number: LQ-R2W4
Our Price: $3,865.00
Availability: Usually ships the same business day

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Specifications
Accessories
Reviews

4-Port 1RU Panel for 2-Wire Interfacing

  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Up to 6 LQ devices can be networked to create standalone partyline intercom group
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • Adjustable bandwidth on a per port basis
  • 2-wire powering, termination and auto-nulling
  • Compatible with Clear-Com and RTS systems
  • Female and Male XLR connectors at each port
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager application
  • Networked Control Events for multi-unicast one-to-many routing


Audio
  • Resolution: 12 bit
  • Sample Rate: 24KHz
  • Frequency Response: 100 12KHz
  • CODEC: OPUS
Partyline Audio
  • Input Gain: -3dB to +3dB
  • Output Gain: -3dB to +3dB
Network Setting
  • Bit Rates: 16, 32, 48, 64, 128Kbps
  • Packet Size: 5, 10, 20, 40, 60ms
  • Jitter Buffers: 0 1000ms
Connectors
  • Network/LAN: EtherCON/RJ45 (female)
  • Partyline Audio I/O: 3 Pin XLR (female)
Partyline Output Current
  • Type: Clear-Com & RTS TW
  • Local DC Powered: 250mA per pair of PL ports (500mA total)
Power Supply
  • In-line supply with sleeve locking connector
  • Input: 100-240V, 50-60Hz, 1.4A MAX
  • Output: DC 12V, 5A, 60W MAX
Environmental
  • Operating Temperature: +32°F +104°F (0°C +40°C)
  • Storage Temperature: -67°F +158°F (-55°C +70°C)
  • Humidity: 90%, non-condensing
Dimensions
  • 19in W x 1.79in H x 8.8in D
  • (483mm x 46mm x 224mm)
Weight
  • 4.29lbs (1.95kg)
