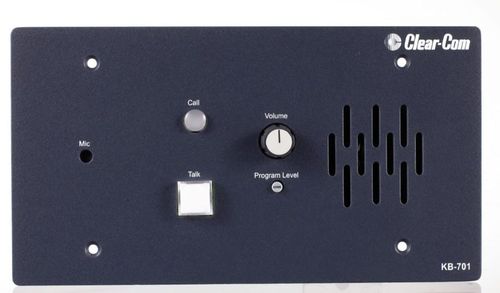

Clear-Com Single-Channel Remote Speaker Station - KB-701

Single-Channel Remote Speaker Station

• Half-duplex, push-to-talk functionality
• Four modes of operation that are internally programmable
• Microprocessor controlled logic and switching
• Balanced local program input with separate level control
• Visual and audible call signaling
• Optional 4-wire daughter board for flexibility
• Wall or console mountable, or optional V-Box for portable or desktop use
• Built-in speaker

• Maximum Level before Clipping: >= 20dBu
• Input Impedance: >= 5K

• Load Impedance: >= 4
• Max Output Level before 1% Distortion: 20dBu ± 2dBu

• O Noise: < -74dBu
• Output Impedance: >10K

• Crosstalk: < -60dB
• Max level before Clipping: >= 12dBu

• Program Input – Speaker Out: 200 – 18KHz ± 3dB
• Partyline- Speaker Out: 200 – 18KHz ± 3dB

• Program Input – Speaker Out: <= 0.5%
• Partyline- Speaker Out: <= 0.5%

• Program Input – Speaker Out: < -60dBu
• Partyline- Speaker Out: < -50dBu

• Program Input – Speaker Out: >= 24dB
• Partyline- Speaker Out: >= 40dB

• Input Voltage Range: 20-30 VDC
• Input Current (Idle):<= 90mA
• Input Current (Max):<=110mA

• Intercom: Line Five terminal connector
• Program Input: Three terminal connector
• Option Switches: Three DIP switches

• 32 – 122o F (0 – 50o C)

• 4.5 x 8.5 x 1.75 in (HxWxD)
• (114 x 210 x 44 mm)

• 1.04 lbs (0.47 kg)
