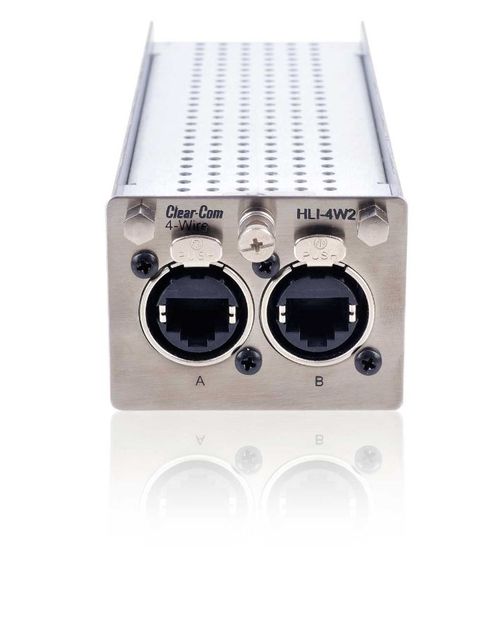

Clear-Com 4-Wire Interface Module - HLI-4W2

4-Wire Interface Module

• Matrix port, camera and telephone circuit assignment from HMS-4X main station
• Two RJ45 connectors per module

• Intercom Line: (2) RJ-45 (Ethercon)

• Maximum Level Before Clipping: 18dBu
• Nominal Input Level: 0dBu (selectable)
• Input Impedance: >= 10K?

• Frequency Response: 20 Hz – 10 kHz ±3dB
• Distortion: <0.2% THD @ 1kHz
• Noise: <-65dBu
• 4-wire Option Module Inputs
• Maximum Level Before Clipping: 18dBu
• Nominal Input Level: 0dBu (selectable)
• Input Impedance: <= 100?

• Frequency Response: 300 Hz – 12 kHz ±3dB
• Distortion: <0.1% THD @ 1kHz
• Noise: <-55dBu

• 2.24 x 7.36 x 1.54 in (HxWxD)
• (57 x 187 x 39 mm)

• 13 oz (0.38 kg)
