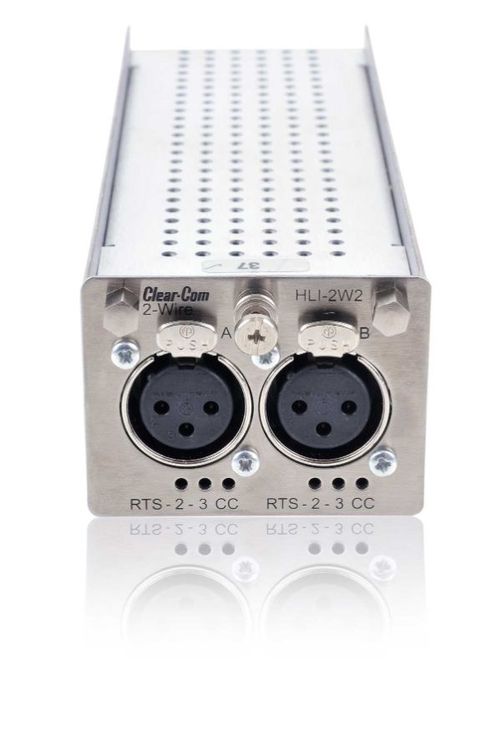

Clear-Com 2-Wire Interface Module - HLI-2W2

2-Wire Interface Module

• Clear-Com/RTS assignment from HMS-4X main station
• Two 3-pin XLR-F connectors per module

• Intercom Line: (2) 3-pin XLR–F

• Maximum Level Before Clipping: 6dBu
• Nominal Input Level: -18dBu (C-C), -12dBu (RTS)
• Input Impedance: >= 10K? bridging
• The following specified for a route to four-wire input at 0dBu in:
• Frequency Response: 100 Hz – 10 kHz ±3dB
• Distortion: <0.2% THD @ 1kHz
• Noise: <-55dBu
• The following specified for a route from a four-wire output at 0dBu out:
• Frequency Response: 40 Hz – 10 kHz ±3dB
• Distortion: <0.2% THD @ 1 kHz
• Noise: <-75dBu
• Auto-nulling and Echo Cancellation RTS/Clear-Com Selectable
• Termination: External
• Power: 30V max external

• 2.24 x 7.36 x 1.54 in (HxWxD)
• (57 x 187 x 39 mm)

• 13 oz (0.38 kg)
