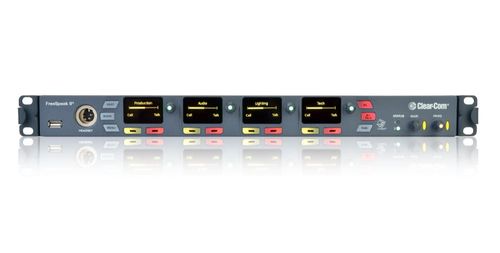

Clear-Com FreeSpeak II-Base-II Digital Wireless Base Station - FSII-BASE-II

FreeSpeak II-Base-II Digital Wireless Base Station

• Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
• Routing and configuration of up to 25 FreeSpeak II beltpacks
• Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
• Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
• Fiber transceiver connections, supports two fiber-enables FSII splitters
• Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
• GPIOs allow assignment to trigger cue lights, tally or radios
• Matrix and partyline configurations support up to 12 channels and/or groups
• DECT Sync ports for optimizing co-located systems
• RF Audio Filter improves system performance in hard RF environments
• Browser-based Core Configuration Manger (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
• Text messaging from CCM to wireless beltpacks

• Base-to-Beltpack Frequency Response: 100Hz – 7.1kHz
• No. of Beltpacks per Base Station: 25
• No. of Transceiver/ Antennas Supported by Base: 10
• No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
• PC Programming Port: 2 LAN RJ45
• Relay Port: DB15, supports one relay assigned to the SA out
• Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
• Partyline Power On/Off: A/B, C/D paired
• Partyline Output Voltage: 26 – 28VDC, 800mA per pair (A/B or C/D)
• 4-Wire/Matrix Connection: 4 RJ-45
• Program Input: XLR-3F, transformer isolated, line-level input
• Stage Announce Output: XLR-3M, transformer isolated, line-level output
• Front Panel Headset: 4-pin male and 5-pin female options
• Front Panel Displays: 4 OLED's with encoders and assignable soft keys
• Front Panel Indicators: Antenna Status, Beltpack Status
• External Power Supply Connection: 12VDC
• Base Station Programming/Editing: Push-to-enter rotary encoder

• Input: 100-240V AC, 1.4A max
• Output: 12V DC, 60W, 5A
• Current Draw: 12V, 4A max, 48W max

• 1.75 x 19.0 x 10.2 in (HxWxD)
• (44 x 483 x 259 mm)

• 5.57 lbs (2.5 kg)
