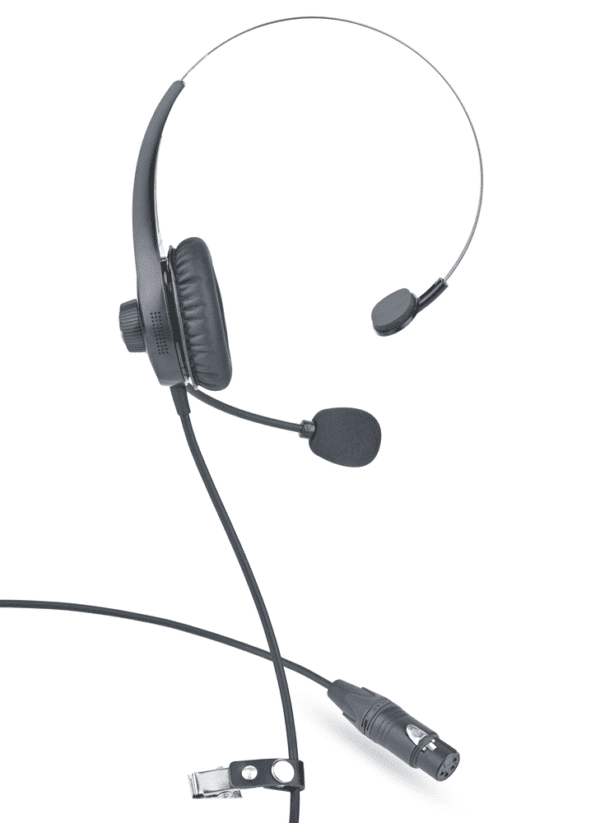

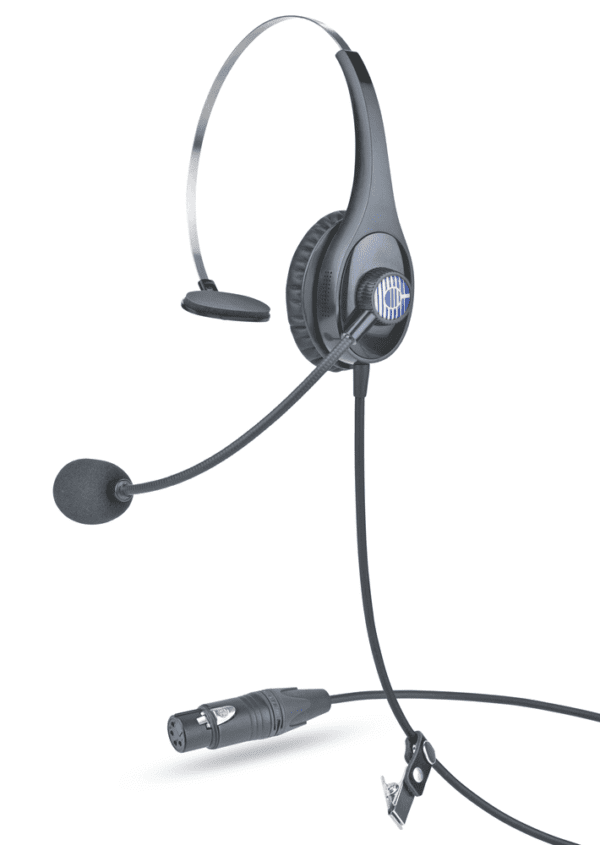

Clear-Com CC-28-X4 Single-ear Lightweight Headset

Description CC-28-X4 : Single Closed Back, Lightweight Headset

Over-the-head design

Flexible gooseneck microphone positioning

Leatherette earpad

Dynamic microphone

100Hz to 14kHz earphone frequency response

Boom Rotation ON/OFF switch for quick microphone muting

Fully serviceable

Headphone Type: Closed-back

Driver: 27mm diameter

Frequency response: 100Hz- 14kHz

Sensitivity: 114dB ±3dB SPL@ 1kHz

Impedance: 320Ω ±20%; at 1kHz typical

Input Power: 100mW

Microphone Element: Dynamic

Polar Pattern: Cardioid

Frequency Response: 200Hz-10kHz

Sensitivity: -61±3dB at 0dB =1V/1Pa, at 1kHz

Impedance: 200Ω ±20%; at 1kHz typical

Connector: XLR 4-pin female (Neutrik) Clear-Com wiring

Cabling: Screened and separately shielded microphone wires, cable not coiled

Cable length: 5ft (1.5m)

Environmental Temperature: -10 ±3°C (14° to 37°F) to 55 ±5°C (131° to 41°F) for 48 hours

Humidity: 40 ±5°C (104° to 41°F) to 90-95°C (194° to 203°F) relative humidity for 48 hours

Dimensions: Packaging: 6.3 x 8 x 2.4in (WxHxD) (160 x 205 x 60mm)

Weight: 3.1oz (88g) without connector 3.5oz (99.2g)

User Guide: Product Data Sheet
