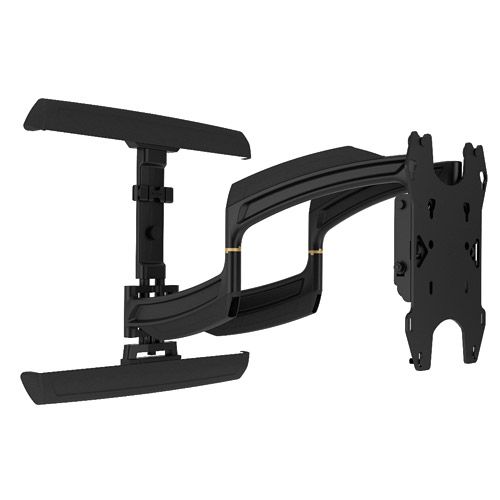

Chief Medium THINSTALL™ Dual Swing Arm Wall Mount - 25" Extension - TS325TU

Chief Medium THINSTALL™ Dual Swing Arm Wall Mount - 25" Extension - TS325TU

Part Number: TS325TU
Our Price: $455.20
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Focused Technology is a Proud


Chief Medium THINSTALL™ Dual Swing Arm Wall Mount - 25" Extension - TS325TU

A lightweight, low-profile full-motion wall mount for TVs 30-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.

Features:
  • Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
  • Extends up to 25” (635 mm) Full extension maximizes viewing potential.
  • Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
  • Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
  • Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
  • Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

Certifications: UL Listed

Color: Black

Lateral Shift: 16" (406.4mm)

Manual Height Adjustment: 1" (25mm)

Maximum Extension: 25.7" (652.8mm)

Maximum Screen Thickness: 5" (127mm)

Minimum Depth: 1.3" (33.mm)

Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm

Orientation: Landscape

Overall Dimensions (H x W x D): 17.2" x 29.5" x 1.3" (437 x 749 x 33mm)

Pivot (numerical value): ±90° (depending on screen width)

Post-Installation Leveling (Roll): Yes

Solution Type: Universal

Tilt: + ° , - 15°

Typical Screen Sizes: 30 - 52"

Wall Stud Compatibility (inches): 16

Weight Capacity: 75 lbs (34 kg)
