Chief Extra-Large Fit Tilt Wall Mount, - RXT3

Chief Extra-Large Fit Tilt Wall Mount, - RXT3

Part Number: RXT3
Our Price: $181.60
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

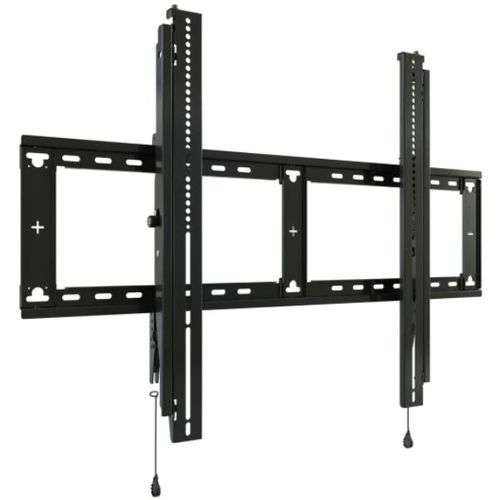

Chief Extra-Large Fit™ Tilt Display Wall Mount - 49” to 98”

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.

Key Features
  • Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
  • Display can be tilted up to 12° to set the optimal viewing angle
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 915 x 650 mm
  • Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Kickstand for easy access to power and signal connections
  • Easy access magnetic quick-store release pullcords


Depth2.5 in
Height27.1 in
Weight Capacity250 lbs
Overall Dimensions19.18" x 22" x 2"
