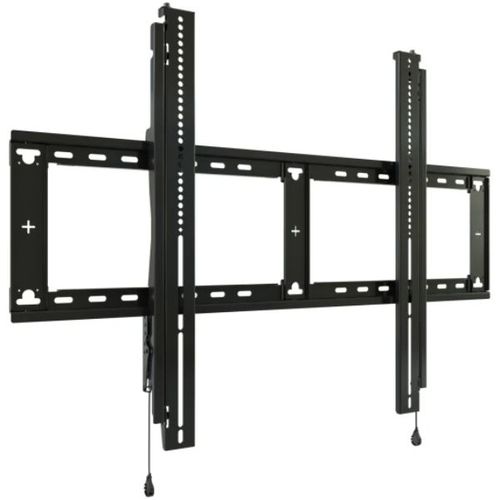

Chief Extra-Large Fit Fixed Wall Display Mount, - RXF3

Chief Extra-Large Fit Fixed Wall Display Mount, - RXF3

Part Number: RXF3
Our Price: $147.20
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Chief Extra-Large Fit Fixed Display Wall Mount - 49 to 98

The Fit series RXF3 is an extra-large fixed display wall mount for 49 to 98 typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75 (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5 (38 mm) low-profile depth, and UL and TUV safety standard approvals.

Key Features
  • Low profile 1.5 (38 mm) depth facilitates ADA compliance for typical AV design requirements
  • Easy to reach 0.75 (19 mm) post-installation leveling screw and 10 (254 mm) ball end hex-key included
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Supports display mounting patterns up to 960 x 650 mm
  • Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Easy access magnetic quick-store release pullcords
  • Kickstand for easy access to power and signal connections

Specifications

AdjustabilityFixed
ApplicationWall
ColorBlack
OrientationLandscape
Depth1.5 in
Height27.1 in
Weight Capacity250 lbs
Overall Dimensions27.05 x 38 x 1.5
