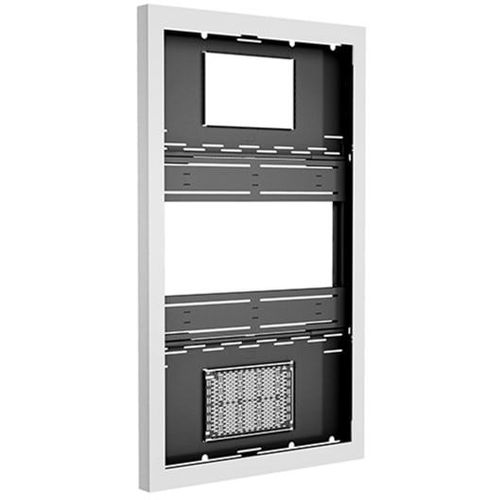

Chief Impact™ On-Wall Kiosk with Protective Glass - Portrait 70 Inch White - LW70UWPG

The Impact™ On-Wall Kiosk brings new flexibility to the digital signage enclosure market while maintaining a sleek aesthetic to complement a variety of environments. The integrated 5/32” thick tempered glass is factory bonded to the enclosure with industrial adhesives. Providing protection for your LCD display from sharp objects and common Impact™s.

Note: Bezel size varies per product. Reference technical drawings and specification sheet for different image diagonals.

Additional LL-VC21 Lever Lock™ component storage plates available for purchase.

• Integrated with factory bonded 5/32” tempered glass providing protection for your LCD display
• Depth-adjustable exterior frame supports a wide range of displays
• A wall protrusion of 4" (101mm) or less can be obtained by using flat panels less than 2.75" (70mm) in depth
• Integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling
• Exclusive design keeps the display mounted to the frame when opened for unparalleled service and maintenance access
• Reversible hinges to avoid obstructions for installation and service
• Engagement latch can be secured with tamperproof hardware
• Multiple storage options available
• Middle Atlantic’s Lever LockTM technology is integrated to avoid cutting into walls
• Large empty center backing enables use with in-wall boxes
• Compatible with PAC525 and PAC526 series in-wall boxes, including power options

Dimensions & Measurements	Maximum Screen Thickness	3.75 in (95.3 mm)
	Shipping Weight	36.7 lbs (16.7 kg)
	Typical Screen Size	70 in (177.8 cm)
	Weight Capacity	Mount 140lbs_ Panel 5lbs
Characteristics & Features	Accessory Type	Metal Stud Mounting Brackets Protective Covers Thermal Management
	Adjustability	Fixed, Lateral Shift
	Application	Wall, Floor-Cart
	Color	White
	Notes	Depth range: 3-5" (76 - 127 mm)
	Number of Displays	1
	Orientation	Portrait
	Protective Glass	Yes
	Special Features	Closure Door
Certifications & Warranties	Certifications	UL Listed
