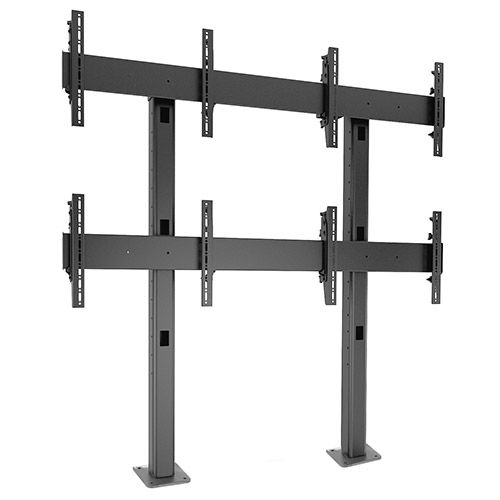

Chief FUSION 2 x 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - LBM2X2U

Chief FUSION 2 x 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - LBM2X2U

Part Number: LBM2X2U
Our Price: $4,288.80
Availability: Usually ships the same business day
-
+

Description

Focused Technology is a Proud


Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.

Screen array configuration: 2 screens wide x 2 screens high.

Features
  • 2 x 2 screen arrangement for 42 - 50" screens. Larger displays possible with FCAX brackets, call to confirm compatibility
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Bolt-down solution allows for a permanent solution
  • Integrated cable management for a clean installation

Specifications

Center of Display to Floor/Table Range:16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row)
Certifications:UL Listed
Color:Black
Lateral Shift:Yes
Manual Height Adjustment:Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern Compatibility (Universal Versions):any width x 100 mm - 400 mm
Orientation:Landscape
Overall Dimensions (H x W x D):72.9" x 72.9" x 9.43" (1852 x 1851 x 239 mm)
Plumb Adjustment:Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration:2 x 2
Shipping Weight:177.00 lbs
Solution Type:Universal
Typical Screen Sizes:42 - 50" (Larger displays possible with FCAX brackets, call to confirm compatibility)
Weight Capacity:125 lbs. (56.7 kg) per screen
