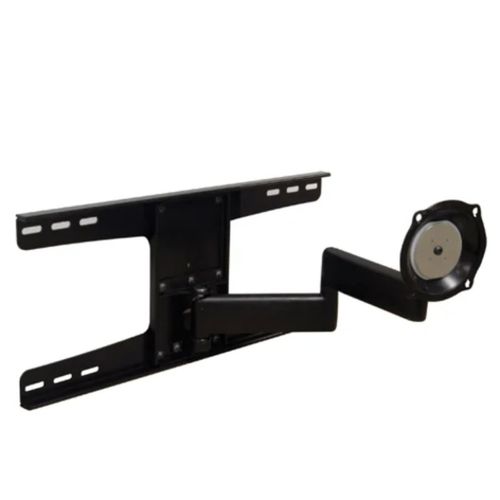

Chief DUAL ARM STEEL STUD WALL MNT, UNIV - JWDSKUB

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.

Key Features

Mounts a dual swing arm to 16", 20", or 24" on-center steel studs
Centris Technology provides smooth, fingertip tilt in any direction
Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
Folds in close to the wall for a low-profile appearance
Quick, easy cable management
All mounting hardware included
VESAŽ 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)

Depth	3.4 in (8.6 cm)
Height	13 in (33 cm)
Overall Dimensions	13.0" x 26.0" x 3.4" (331 x 660 x 87mm)
Shipping Weight	26.7 lbs (12.1 kg)
Tilt	+ 15° / - 15°
Weight Capacity	75 lbs (34 kg)
Width	26 in (66 cm)
Adjustability	Extension Swivel Tilt
Application	Wall
Color	Black
Interface Included	No
Notes	Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
Number of Displays	1
Orientation	Landscape
Post-Installation Leveling Roll	Yes
Solution Type	Universal
Special Features	Metal Stud
TAA Compliant	No
VESA Mounting Pattern	100 x 100mm - 400 x 400mm
