Description

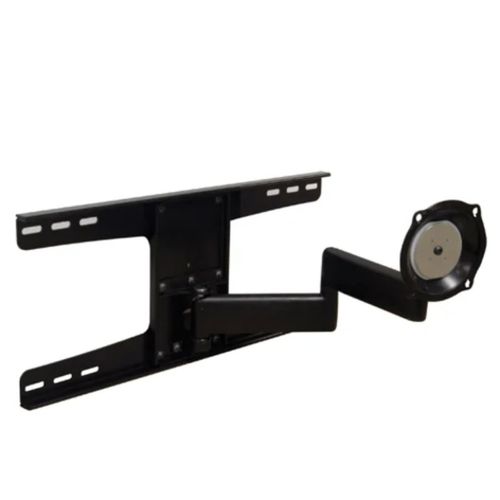

Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.
- Mounts a dual swing arm to 16", 20", or 24" on-center steel studs
- Centris Technology provides smooth, fingertip tilt in any direction
- Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
- Folds in close to the wall for a low-profile appearance
- Quick, easy cable management
- All mounting hardware included
- VESA® 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)
Specifications
| Dimensions & Measurements | Depth | 3.4" | Height | 13 | Overall Dimensions | 13.0" x 26.0" x 3.4" (331 x 660 x 87mm) | Shipping Weight | 24 lbs (10.9 kg) | Wall Stud Compatibility In | Metal Studs, 16-24" (406mm - 610mm) | Weight Capacity | 75 lbs (34 kg) | Width | 26" |
| Characteristics & Features | Adjustability | Application | Wall | Color | Black | Interface Included | No | Notes | Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth) | Number of Displays | 1 | Orientation | Landscape | Post-Installation Leveling Roll | Yes | Solution Type | Universal | Special Features | Metal Stud | Tilt | +15° / -15° | VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
