Chauvet DJ Stage Designer 50 - STAGEDESIGNER50

Chauvet DJ Stage Designer 50 - STAGEDESIGNER50

Part Number: STAGEDESIGNER50
Our Price: $253.06
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

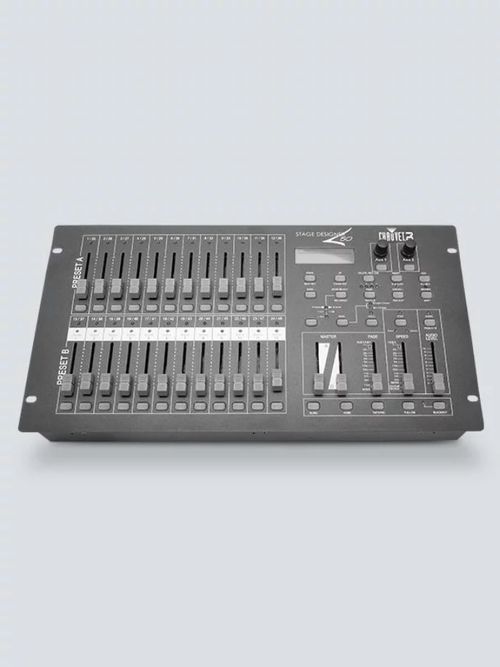

Stage Designer 50

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

Key Features
  • Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
  • Saves desk space by squeezing 48 channels into a 24-channel console
  • Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
  • Increase programming and playback versatility with two programmable auxiliaries
  • Simplify programming by using DMX channel patching to reassign channels
  • Increase flexibility with built-in MIDI support for remote dimming and scene triggering
  • Coordinate your light shows to music using the direct audio input connector or built-in microphone
  • Ability to stack scenes for simultaneous or sequential playback

Specifications

DMX Channels:48
DMX Connectors:3- and 5-pin XLR
Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
Weight:9.9 lb (4.5 kg)
Size:19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
Approvals:CE
Rackmount:6U
What's Included
  • Power cord
  • User manual
  • Warranty card
  • External power supply
