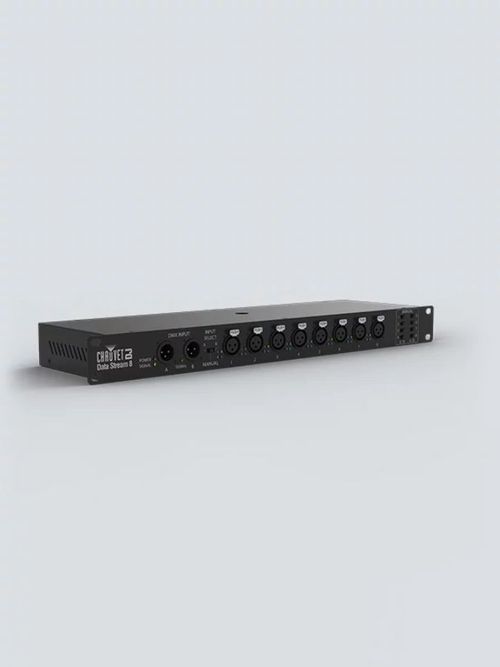

Chauvet DJ Data Stream 8 - DATASTREAM8

Chauvet DJ Data Stream 8 - DATASTREAM8

Part Number: DATASTREAM8
Our Price: $349.99
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Data Stream 8

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

Key Features
  • Flexible DMX splitter provides up to 8 outputs from dual inputs
  • Each input can be used simultaneously and sent to any output
  • Master 3-position switch quickly sends A or B input to all 8 outputs
  • Individual 2-position switches send data from either the A or B input
  • Optically isolated outputs provide protection in the event of a short
  • Threaded insert safely secures to overhead truss

Specifications

DMX Connectors:3-pin XLR
Rackmount:1U
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:2 W, 0.04 A @ 120 V, 60 Hz
2 W, 0.03 A @ 230 V, 50 Hz
Weight:4.6 lbs (2.1 kg)
Size:19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
Approvals:CE
What's Included
  • Data Stream 8
  • Power cord
  • Warranty card
  • Quick Reference Guide
