Chauvet DJ Data Stream 4  - DATASTREAM4

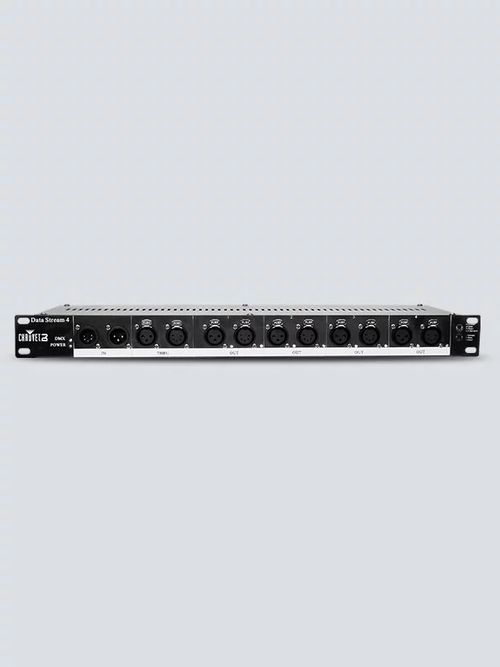

Chauvet DJ Data Stream 4 - DATASTREAM4

Part Number: DATASTREAM4
Our Price: $157.62
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


Data Stream 4

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional "thru" port.

Key Features
  • Universal, optical DMX splitter provides 4 outputs from a single input
  • Increase flexibility with 3- and 5-pin XLR connections for each input/output
  • Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
  • Electrical isolation between input and output
  • Conveniently mount with a shorter cable run using the single space (1U) mounting rack


DMX Channels:3- and 5-pin
Input Voltage:Auto-ranging 100 - 240VAC 50/60Hz
Power and Current:3W, 0.1A @ 120V 60Hz
5W, 0.1A @ 230V 50Hz
Weight:5.8 lb (2.6 kg)
Size:19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
