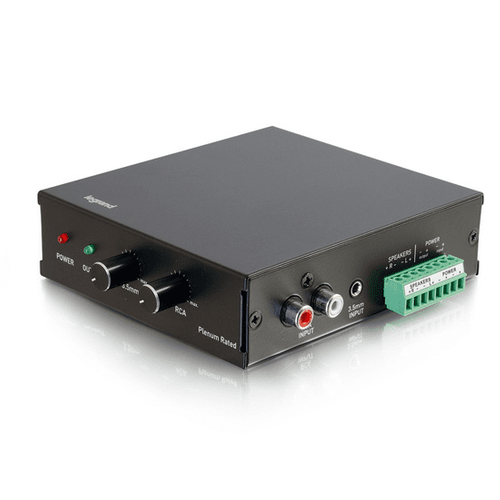

Cables To Go Audio Amplifier (Plenum Rated) - CG40100
Description
It's unfortunate but true - a lesson might be lost on students if they have trouble hearing the instructor. With an Audio Amplifier for classrooms students will remain attentive and better informed during class - no more disengaged learners.
With maximum sound amplification, this cutting-edge system ensures consistent levels of audio through the classroom whether from the instructor, video or other multimedia source. Connects easily to classroom A/V equipment such asprojectors, microphones, laptops or DVD players and ensures that each student has a quality learning experience. The Audio Amplifier is powerful enough to overcome background noise, poor room acoustics and even mild hearing loss in students.
• Download the manual from the Support tab
• Download a PDF with the technical specifications of this product on the Support tab or view the technical specifications of this product on the Specs tab
Additional Technical Specs
• Energy efficient - shuts down automatically when not in use and turns itself back on in an instant
• Cost effective - designed for tight budgets
• Safe – TUV Listed to UL 60065, meets all FCC and Plenum requirements in addition to over voltage, temperature and short circuit protection features
• Flexible - two audio inputs with separate volume controls enable the volume to be tuned to the specific classroom environment
• Compact and easy to install - weighing just one pound, the plenum rated unit can be easily mounted out of sight in ceilings or in other equipment - eliminating the risk of theft or damage
• Extremely compatible - works with existing classroom equipment and integrates seamlessly with PCs, DVD players, microphones and other A/V devices
Electrical Characteristics
• Class - Class D
• Total Output Power - 40W
• Output Power (THD 1%) - 13W per channel
• THD+N (at 10W power output) - 0.3% per channel
• Efficiency - >90%
• Frequency Response - 150Hz to 20KHz
• Signal to Noise Ratio - >85dB
• Input Impedance (unbalanced) - ~10 Kohms
• Auto Shutdown - Shuts down 5 minutes after no input signal detected
• Max Operating Current - ~2000 mA
• Current Draw In Shutdown Mode - 30 mA
• Power Supply - 24V DC, 2.0A
Physical Characteristics
Input Connectors
• 1 x 8 Pin Terminal Block - 4 pins for 2 speakers, 2 pins for power input, 2 pins for power output
• 1 pair RCA (left/right) - Red for right and White for left - White also accepts Mono input
• 1 x 3.5mm Stereo Port - Stereo input
• Volume Controls - Independent controls to Input Channels
• LED Indicators - Input Power (Red LED) Output Power (Green LED)
• Dimensions (HxWxD) - 34 x 118 x 127mm
• Package Type - Box
Other Specifications
• Certifications - RoHS, FCC, Plenum Rated
• Enclosure Material - Metal
Environmental Information
• Cooling - Natural
• Storage Temperature - -65° - 100°C
• Operating Temperature - -25° - 85°C
• Power Supply
• Manuals
• Mounting Brackets
