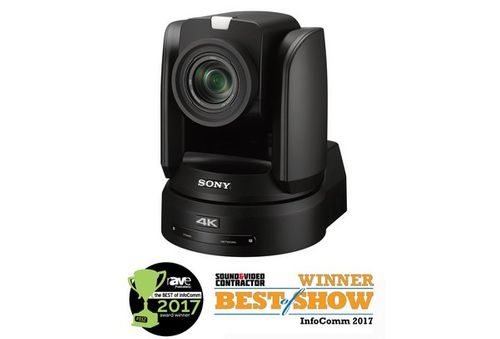

Sony 4K/HD PTZ camera with 1-inch Exmor® R CMOS sensor & PoE+ - BRC-X1000/1

Sony 4K/HD PTZ camera with 1-inch Exmor® R CMOS sensor & PoE+ - BRC-X1000/1

Part Number: BRC-X1000/1
Our Price: $9,000.00
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.


4K/HD PTZ camera with 1-inch Exmor® R CMOS sensor & PoE+

The BRC-X1000 is the first Sony 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios, and on-air suites, auditoriums, houses of worship, courtrooms, or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator. The 1-inch type Exmor® R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention. Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x (HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table-top, or tripod mounting. There's also a broad range of video interfacing and remote control possibilities-plus support for PoE+ and genlock-for smooth integration into any broadcast, professional, or corporate AV environment.

Key Features
  • PoE+ for flexible powering options: - For installation simplicity and flexibility, the BRC-X1000 supports a PoE+ (Power-over-Ethernet) capability that carries IP control and power over a single connection cable.
  • Broadcast-Friendly Features: - With Pan, Tilt, and Zoom control, the BRC range puts remote-recording technology at your fingertips. PTZ Trace Memory (planned for summer 2017) allows a sequence of camera movements to be memorized and recalled when required, removing the need for a cameraman and reducing costs. This new feature smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions.
  • Clear Image Zoom Technology: - This super resolution technology doubles the optical zoom while still delivering exceptional image quality. The optical excellence of a genuine 12x optical zoom Zeiss Vario-Sonnar T lens with Clear Image Zoom capabilities to 18x in 4k/24x in HD allows you to enlarge the image while maintaining its original image quality. The end result is an artistic triumph when shooting in 4K 24p (cinema-style resolution planned for summer 2017) with a beautiful bokeh for dramatic depth-of-field effects and its flexibility enables the cameras to be utilized as a creative tool. With its high speed 60p HD mode, this camera clearly capture fast-paced footage when shooting live sports.
  • High Quality & High Sensitivity Image Sensor: - The heart of this camera is Sony's 1.0 type back illuminated Exmor R CMOS sensor and image processing engine featuring a high sensitivity of 1.7 lx minimum illumination.
  • Boost Efficiency with Cost Savings & Ease of Operation - This easy to use model enables a single camera operator to manage a multi-camera production. The BRC-X1000 presently support up to 16 position presets (with additional presets planned for future upgrades) making it easy for the operator to transition smoothly and seamlessly from speaker-to-speaker presenting on a dais or a presenter walking mark-to-mark. When more professional camera movements are needed (e.g. gliding up, down and across from close-up to wide shots, control zoom speed), complicated camerawork can be pre-programmed with new control features such as Trace Memory and PTZ Motion Sync for added flexibility.


Camera SpecificationsDetail:
Auto ExposureExposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority),
EV compensation, Back light, Spot light
Effective PixelsApprox. 14.2 Megapixels
Horizontal Viewing Angle64.6?Wide-end)
Image Device1" Exmore R CMOS sensor
Lens12x - Clear Image Zoom: 2x(HD), 1.5x(4K) Total 24x(HD), 18x(4K)
Pan Angle/SpeedPan: 170
Pan: 0.3 to 60/s
Shutter Speed1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25)
Tilt Angle/SpeedTilt: +90/-30
Tilt: 0.3 to 60/s
White BalanceAuto1/Auto2/One Push/Indoor/Outdoor/Manual
General SpecificationsDetail:
Dimensions (W x H x D)Approx. 198 x 260 x 238mm (without projecting object?
Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object?
Effective PixelsApprox. 14.2 Megapixels
External Sync InputYes
Focal Lengthf=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele)
Focus SystemAuto/Manual
GainAuto/Manual (-3dB to +33dB)
Image Device1-type Exmor R CMOS
Minimum Illumination1.7 lx (50IRE, 1/30s, Iris/Gain Auto)
Operating Temperature0 C to 40 C / 32 F to 104 F
Pan/Tilt AnglePan: 170
Tilt: +90/-30
Pan/Tilt SpeedPan: 0.3 to 60/s
Tilt: 0.3 to 60/s
Panel Display Resolution12x Optical Zoom Lens / Clear Image Zoom Technology 2x for a total of 24x
Power RequirementsPoE+
DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant)
Preset Positions16* (planned increase in 2017)
Shutter Speed1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25)
Video OutputDual Link 3G-SDI x 2(Mon/Line), HDMI x 1, Ethernet x 1(Ctrl), RS-422 x 2(In/Out)
WeightApprox. 4.3kg
Approx. 9 lb 7.7oz
White BalanceAuto1/Auto2/One Push/Indoor/Outdoor/Manual
Interface SpecificationsDetail:
Camera Control InterfaceRS-422(VISCA) / VISCA over IP
Video Output SpecificationsDetail:
Horizontal Resolution4K/HD
Minimum Resolution1.7Lx (50IRE, 1/30s, Iris/Gain Auto)
Signal System3840x2160 /29.97p.25p 1920x1080/59.94p, 59.94i, 50p, 50i1280x720/59.94p, 50p
3840x2160/23.98p*, 1920x1080/23.98p* * planned for later in 2017
Video Output4K - Dual link 3G-SDI x2 and HDMI
HD - 3G-SDI x2 and HDMI
