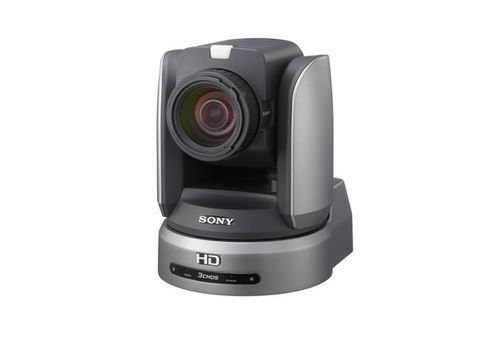

Sony HD 1/2 type 3CMOSs P/T/Z Color Video Camera - BRC-H900

Sony HD 1/2 type 3CMOSs P/T/Z Color Video Camera - BRC-H900

Part Number: BRC-H900
Our Price: $7,500.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

HD 1/2 type 3CMOSs P/T/Z Color Video Camera

The flagship BRC-H900 Pan/Tilt/Zoom color video camera incorporates a 1/2-type Exmor 3 CMOS sensor that delivers exceptionally high picture quality to meet demanding live production requirements. The BRC-H900 was designed with flexibility in mind. Control Options: VISCA RS-232C/RS-422 or IP control (10Base-T/100Base-TX /Auto). With the use of Sony's new RM-IP10 IP Remote Controller, the BRC-H900 can be controlled through an IP network for flexible configuration and can accommodate installations of up to 112 BRC cameras and up to five RM-IP10 controllers. (BRBK-IP10 board also required.) Mounting and Installation: In addition to standard desktop installation, the BRC-H900 can be ceiling mounted and used with a tripod for mobile, live events. Its renowned silent and smooth pan/tilt/zoom mechanism enables use in noise-conscious environments. Advanced Color Adjustment: With a variety of picture adjustment features including color, gamma, black and knee settings, the BRC-H900 camera allows for fine tuning to meet professional demands. With a minimum illumination of 4lx, the BRC-H900 also achieves outstanding performance in difficult lighting environments. Tally Lamp: Not one but two tally lamps are featured on the BRC-H900 - one on the front and one on the rear - offering wider visibility.

Key Features
  • 1/2-type Exmor Full HD 3CMOS Image Sensor
  • Approximately 2 Megapixels of Effective Picture Elements
  • 1080/59.58i, 720/59.98p, NTSC
  • 1080/50i, 720/50p, PAL
  • 4 lx (F1.9 +24dB) Minimum illumination
  • 50dB Video S/N Ratio
  • 14x Optical Zoom
  • HD Video Output: Analog RGB/Component, SDI (HD/SD switchable)
  • SD Video Output: Composite, Y/C
  • External sync input
  • 16 position presets
  • RS-232C/RS-422 serial control (VISCA protocol)
  • Daisy chain capability (up to 7 units)
  • Image stabilization function that reduce vibration
  • Multi-function IR Remote Commander® unit
  • OSD (On-Screen Display)

Specifications

Camera Performance SpecificationsDetail:
Tilt Angle-30 to +90 degrees
Tilt Speed0.22 to 60 degrees/sec
General SpecificationsDetail:
Analog OutputRGB / Y/Pb/P(D-sub 15-pin), Y/C, Composite
Angle of View (H)59.6 degrees (Wide End)
Backlight CompensationOn/Off
Built-In Video OutputSDI (HD/SD Selectable)
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC
Y/C
Composite
CCD Effective PixelsApprox. 2.07 mega pixels (CMOS)
Camera Control InterfaceMini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out)
Dimensions (W x H x D)198 x 260 x 238 mm (7 7/8 x 10 1/4 x 9 3/8 inches)
Effective PixelsApprox. 2 Megapixels
Focal Lengthf=5.8 to 81.2 mm (F1.9 to F2.8)
Focus SystemAuto/Manual
GainAuto/Manual (-3 to 24 dB)
Horizontal Resolution1000 TV lines
Image Device1/2-type Exmor 3CMOS image sensor
Image FlipOn/Off
Minimum Illumination4 lx (50 IRE, F1.9, +24 dB)
Minimum Object Distance300 mm (Wide), 800 mm (Tele)
ND FilterN/A
Operating Temperature32 to 104 ?F (0 to 40 ?C)
Optical Image StabilizerOn / Off
Pan Angle-170 to + 170 degrees
Pan/Tilt Angle-170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)
Pan/Tilt Speed0.22 to 60 degrees (Pan/Tilt)
Panel Display Resolution14x Optical Zoom
Power ConsumptionMax 28.8W (without optional cord)
Max 34.2W (with optional cord)
Power RequirementsDC: 10.8V to 13.2V
Preset Positions16 Positions
S/N Ratio50 dB
Shutter Speed1/8000 to 1/60 s or 1/8000 to 1/50 s
Signal System1080/59.94i, 720/59.94p, NTSC
1080/50i, 720/50p, PAL
Storage Temperature-20 degrees to 60C (-4F to 104F)
SynchronizationInternal/External
Video OutputHD: SDI (HD/SD Switchable) + D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
SD: Composite, Y/C
Weight5.0 kg (11 lb 0.37 oz.)
White BalanceAuto/Indoor/Outdoor/One-push/Manual
